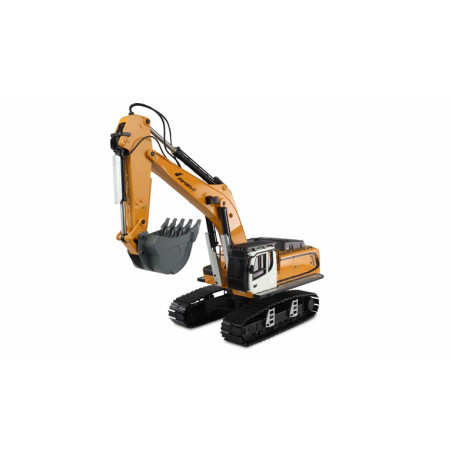

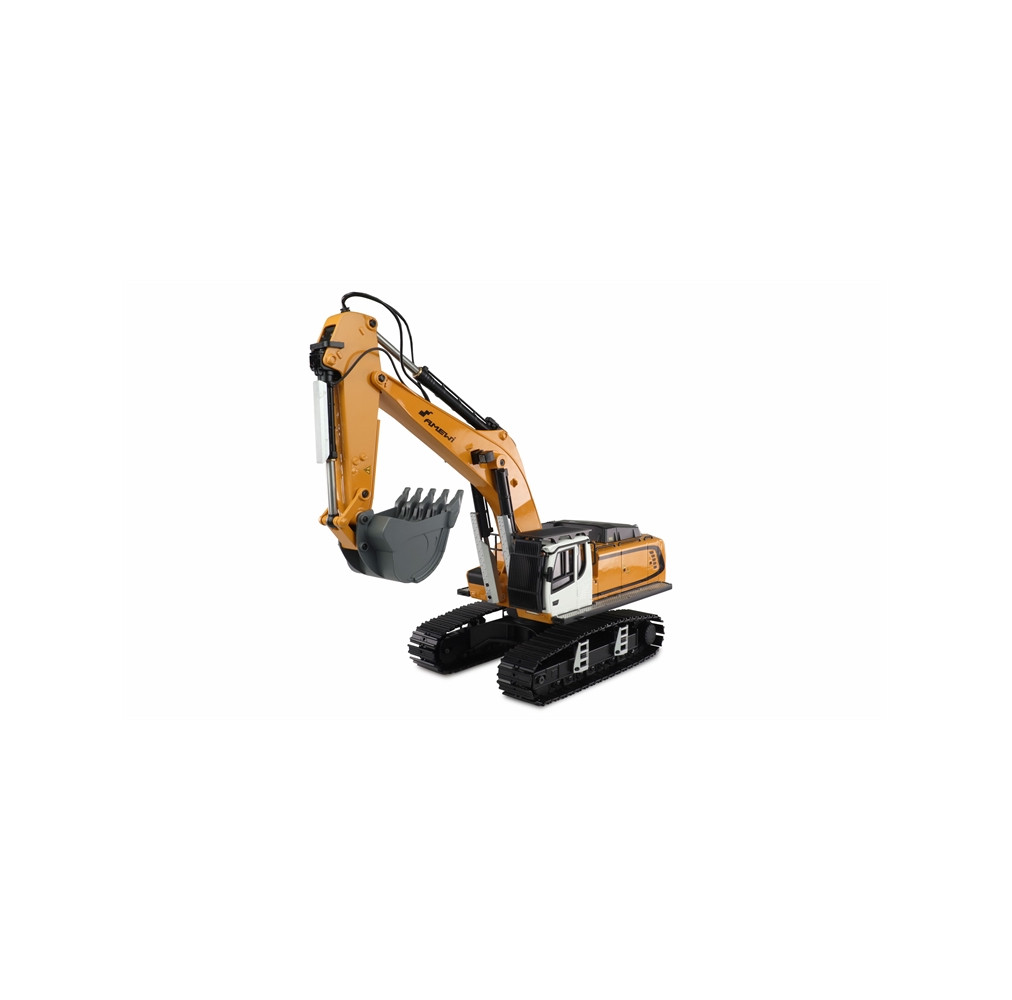

G106E FULL METAL EXCAVATOR 1:14 RTR
The G106E remote-controlled excavator in 1:14 scale impresses with its full metal construction. Every aspect of this construction site model, from the arm to the boom to the bucket, can be controlled separately. With an integrated sound module and a 360° rotating tower (max. 680°), this utility vehicle with the overall length of 61cm offers a varied work experience. Visually, the crawler excavator is reminiscent of the hydraulic Amewi large model G308H and impresses with its true-to-the-original paintwork in a sparkling yellow tone.

With its ability to control 23 channels, the G106E advances into the segment of high-quality functional modelling. The off-road capability in combination with the splash-proof electronics ensures unadulterated fun with long durability of the individual components at the same time. The high-capacity shovel is made of metal. The model also has powerful servo motors that can handle heavy loads without any problems.

The quality of this RTR model in such a size can be found in the details: For example, completely newly developed, robust spindle drives with limit switches are installed on the boom and main arm in the G106E. The main boom is also driven by two metal sprockets (right and left). In combination with the metal tracks, this adds weight and thus the model has impressive power to move even firmer materials with ease.

Highlights:
All metal: Increases component durability as well as dead weight to easily handle heavier weight jobs.
Powerful spindle drives with limit switches: For even more power development and precise control of the excavator's various movements
Double steel gearbox on the main boom: for increased load capacity, enabling the model to lift and move heavy loads

Other features:
True to original paint finish
Impact protection grille on the driver's cab
Large metal bucket with large capacity
Euro control as on the real excavator (sticks control the boom and bucket)
Driving functions via two rotary potentiometers, both tracks can be controlled individually
Sound module (can be switched off)
Large 7.4V Li-Ion battery with 4400mAh included in delivery
With Li-Ion/LiPo 220V charger in scope of delivery
High-quality 2.4GHz remote control with status display for batteries and battery status

Technical data:
Scale: 1:14
Length: 610mm
Width: 212mm
Height: 200mm (without boom and arm)
Max. Height incl. main arm (extended): 455mm
Max. Bucket height fully folded: 260mm
Max. Bucket height fully extended: 420mm
Dimensions with fully extended outriggers: 750x210x235mm
Weight (incl. battery): approx. 10.600g
Drive: Chain drive
Motors chain drive: 520 brushed motors
Main boom drive: 2x steel helical gears with 380 motor
Boom drive: spindles with brushed motors and limit switches
Remote control: 2,4GHz, Eurocontrol, proportional
Range: approx. 25-30m
Battery: Li-Ion 2S 7,4V 4400mAh, XT30, 72x45x25mm, 145g
Operating time: 25-30min
Maximum speed: approx. 1km/h
Charger: 220V 2-3S 20W charger with balancer output, max. 1.6A output
Charging time: approx. 360min

Scope of delivery:
Model
Remote control
Charger
Battery
Instruction manual DE/EN

Required accessories:
4x 1.5V AA batteries for remote control
