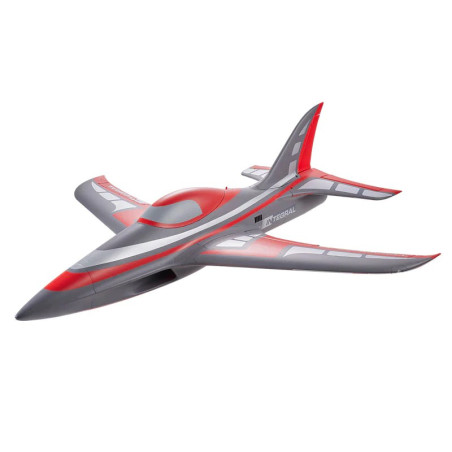

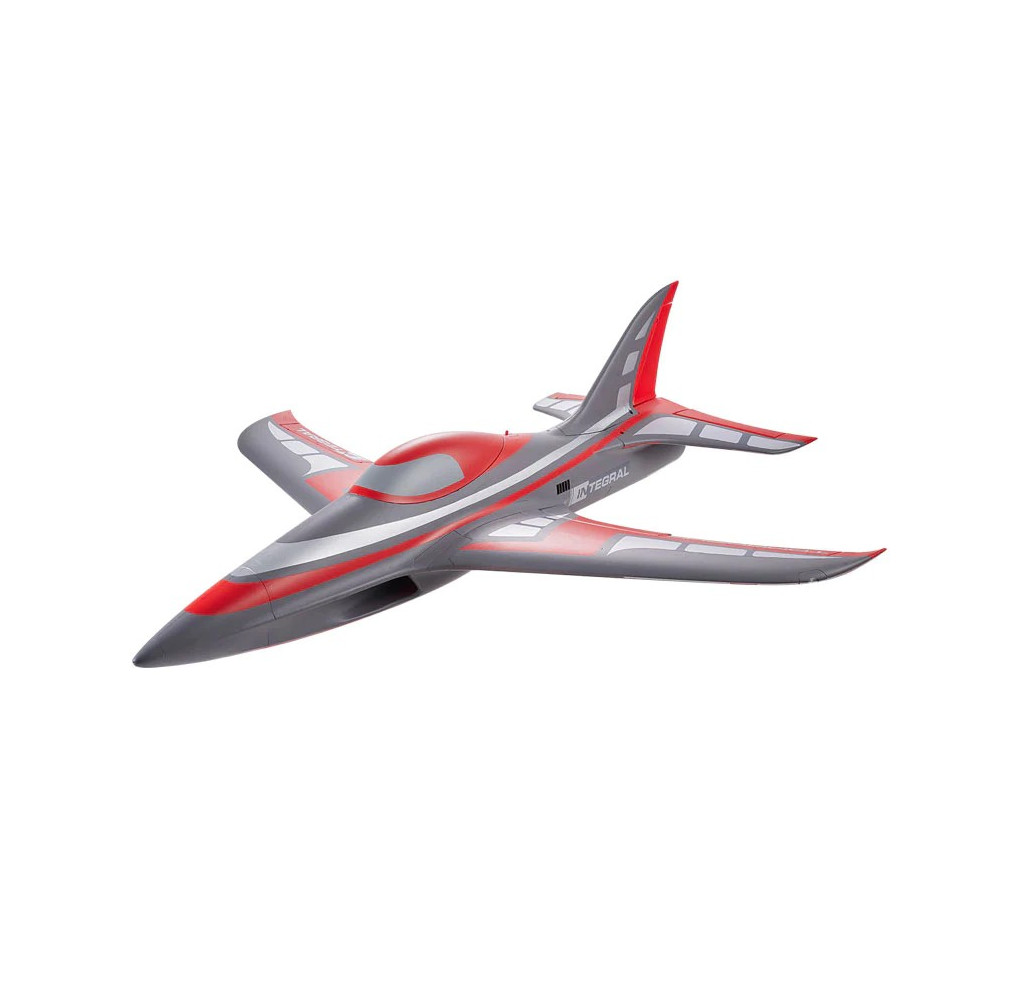

FMS 1/10 Jet 80mm EDF Integral PNP - Red
Introduction
The FMS Integral is a licensed sport jet developed by FMS in conjunction with Tomahawk- Aviation. Designed by a Sino-German team of engineers, the Integral represents the pinnacle of what a foam jet can be.


The unique and distinctive contour lines help the 80mm Integral deliver a satisfying performance in both speed and maneuverability.


Unlike conventional wing shapes, the wing profile of the Integral features a downward-sloping leading edge that induces a controlled separation of airflow over a small area. This leads to rapid transition of the surface airflow into turbulence downstream, maximizing lift generation and enhancing flight stability.


Even in light wind conditions, the aircraft can execute flights with precision and finesse. The classic red and blue paint schemes, along with the profile's curves, exudes a sense of quality and distinctiveness. Whether in the sky or on the runway, it captures attention instantly.


The power system is composed of a high-torque 3665-KV2000 in-runner motor, a high-stability 100A ESC (with 5A switch BEC), and a 6S 4000mAh-5000mAh battery (to be purchased separately), which is paired with 8pcs high-precision 13g metal digital servos mounted on the wings, tails and front steering position, allowing players to easily experience various control techniques and enjoy the pleasure of high-speed flight. In
addition, the wings and tails of Integral have been pre-embedded with reinforced ribbons, and the cockpit is firmly fixed in place with buckle, which allows players to perform aggressive turns, rolls, and flips without any concerns. The CNC all-metal landing gear with trailing-link suspension is highly precise and robust, protecting the plane against violent landings.


FMS 80mm Integral-perfect appearance, excellent performance.




Key features
Power system: High-quality 100A ESC, 3665-KV2000 in-runner motor, 80mm 12 bladed fan.
Full-metal CNC landing gear, trailing-link suspension, highly precise and robust.
Full use of 13g digital metal servos for improved precision and torque.
Large tires- suitable for rough-field operations
Glueless assembly. The aircraft is built with screws.
Environmentally friendly water-based paint.
Buckle design latch prevents unexpected canopy release in flight.
Improved plug-type connectors for added durability and reliability.
Added navigation lights on wings and taxi light on the bottom of the fuselage for a fun flight.
Striking and attractive paint scheme.
Specifications
Wingspan :1220mm /48in
Overall length : 1165mm /46in
Flying weight : ~ 3050g
Wing loading : 95.3 g/dm² ( 0.18oz/in²)
Wing area : 32dm² ( 495.8 sq.in)
Servos : 13g*8,9g*3
Suggested battery: 22.2V 4000-5500mAh 45C
What you need to complete
6CH+ radio system
22.2V 4000-5500mAh 45C LiPo battery
LiPo Charger
Data sheet
Manufacturer : FMS
