JP Hobby ER-005 V2 Tricycle Full Set with Brakes (Sebart Mini Avanti S, Bae Hawk , PC-21 50e) Controller
Tricycle full set JP Hobby ER-005 V2 with Brakes and controller for Sebart Mini Avanti S, Bae Hawk, PC-21 50e
More resistant V2 version
CNC Machined aluminium articulated and mechanical suspended « scale » electric landing complete gear set including 45 and 50mm wheels with brakes system and 3 retracts with a JP Hobby version 2 controller retract box and an electrical magnetic brake controller. Main gear and single nose gear. For planes up to 6Kg.

Specifications
Materials: Aluminium
Suspension: mechanical
Wheels: ball bearings mounted
For planes up to: 6kg (7-8kg possible)
Linkage for Outward/Return cable control (steel cable not included)
Technical Specifications
Struts diameter: 10mm
Mounting Struts diameter: Drilling 5mm
Main gear wheels diameter: 50mm
Nose gear wheel diameter: 45mm
Wheels axle diameter: 4mm
Weight: 507g (for the complete set including the 3 struts, 3 retracts, wheels, the controller and module)
Dimensions: for detailed dimensions, please refer to the pictures
Working voltage: 5-6V

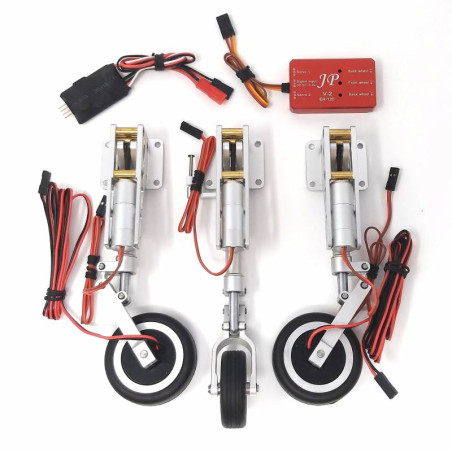

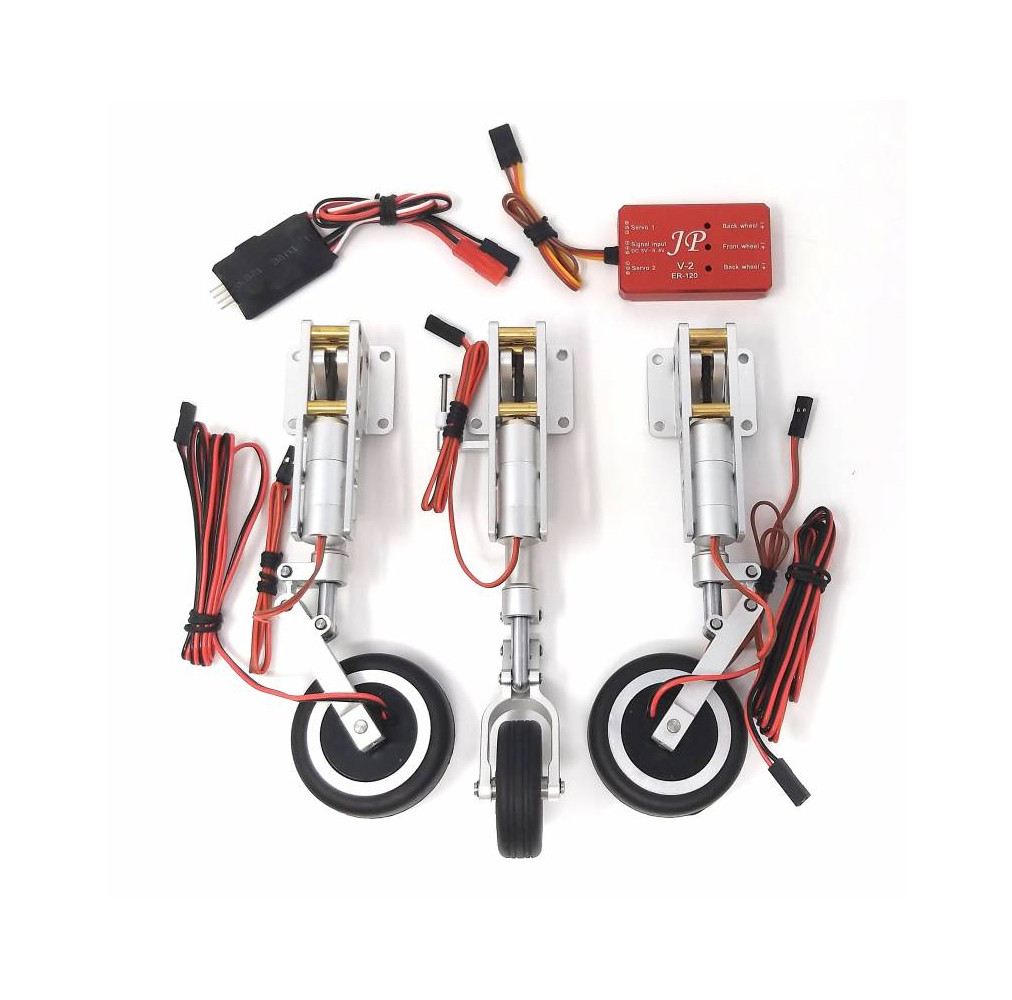

Content
2x Scale metal struts for main landing gear equiped with 50mm wheels & brakes system
1x Scale metal strut for nose gear equiped with 45mm wheel and Linkage
3x Electric Retracts JP Hobby ER-005 5mm (6Kg/Low/Inside)
1x JP Hobby ER-120 V2 version Controller Retract box (doors closed when the gear is down)
1x JP Hobby Electronic brake system control module
Requires
2 cells battery (for the brake module only)
