JETImodel Receiver Battery Power Ion 3100 2S1P
JETImodel Receiver Battery Power Ion 3100 2S1P

Power-Ion accumulators are battery packs suitable to power the receiv-er
and servos in the model.
The main advantages of Power-Ion accumulators include high mechanical
resistance due to keeping in a metal case. The accumulators are also
characterized by a long cycle life. No balancer is needed for their
operation and in case the current is higher than 150A, short circuit
protection is activated. Overcharge protection is activated if the
charging voltage is higher than 5V per cell.

The accumulators are functional even at very low or very high temperatures (-10 - +60°C).
Each pack is provided with one two-wire cable with the JR connector for
charging and with one two-wire cable with the MPX connector for connection
to the model. Both cables are of the same length.

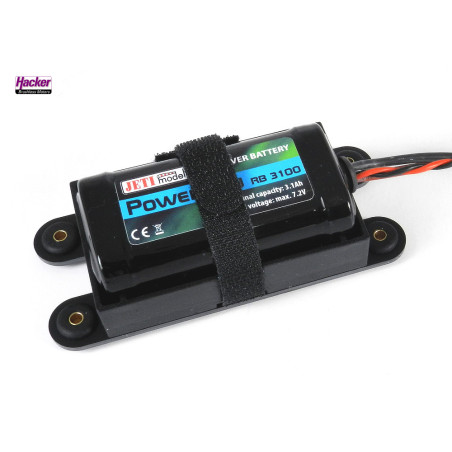

The accumulators are supplied in a plastic case and are fastened to it by
Velcro. The case itself is screwed to a model using anti-vibration rubber
grommets, see the picture below. Pay attention to correct placing of the
brass washer. Its wider part should be in contact with the assembly board
to which the battery case is mounted to avoid extruding the material.

technical data:

Nominal Capactiy: 3100mAh
Nominal Voltage: 7,2V
Charging End Voltage: 8,4V
Lenght of the leads (1x MPX + 1x JR ): 135mm each
Weight: 136g (incl. Box) / 104g (without Box)
Dimensions: 104x47x32mm (incl. Box) / 70x39x20mm (with out box)
Duration Current max.:20A
Peak Current max.: 40A
Charge max.: 4A (at MPX Connector)
