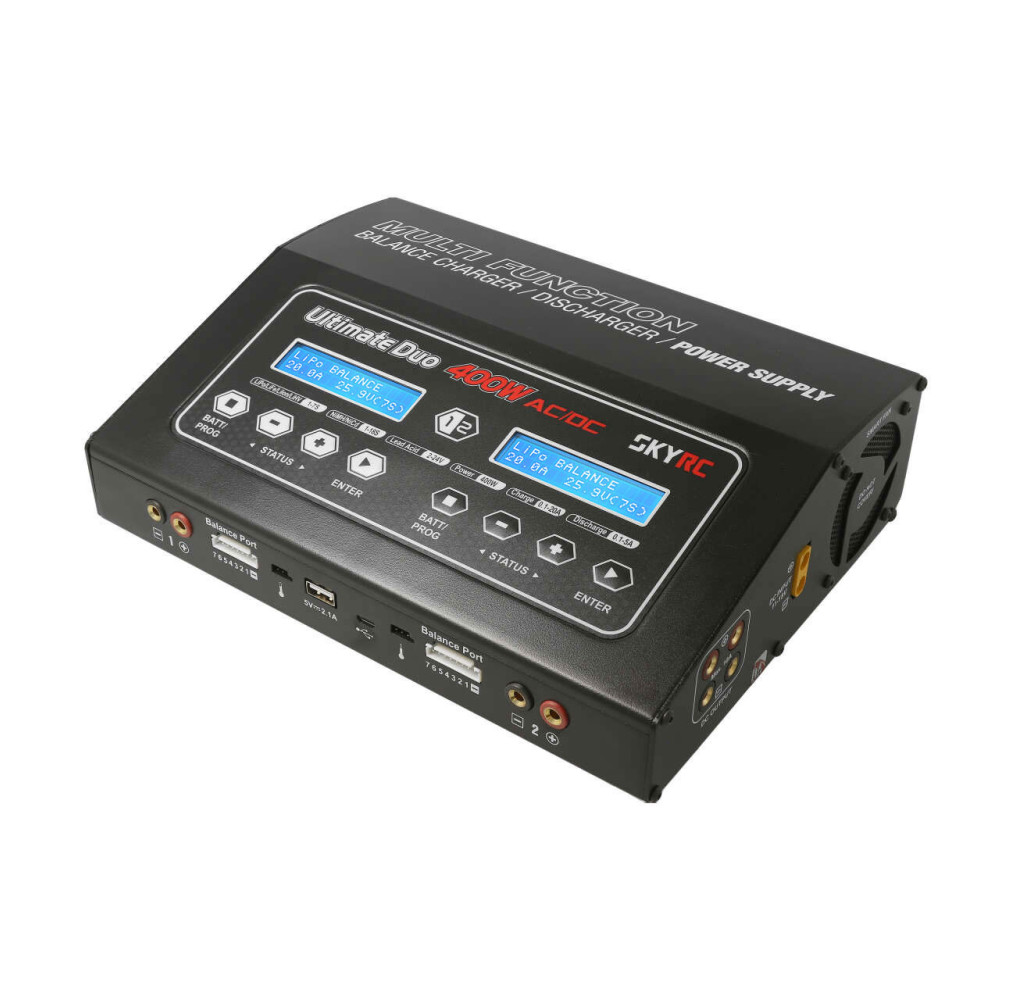

SkyRC D400 AC/DC charger LiPo 1-7S 20A 2x200W
Product information "SkyRC D400 AC/DC charger LiPo 1-7S 20A 2x200W"
The SKYRC D400 is a 2-channel charger with two independent circuits that can charge two different types of batteries at the same time. It also supports power distribution in AC mode to maintain maximum charging power and shorten charging time.

400W pure power

The total power for channel A and channel B is 400W. For example, the charging power for channel 1 can be set to 300W, leaving 100W for channel 2. The Ultimate Duo 400W also offers a 150 watt DC power supply on channel 2 that converts 100-240V AC into 6-15V DC. This can be used to power 12V consumers. Channel 2 can only be used as a charger or as a power supply, not both functions simultaneously.

The device can also be used for the following additional functions:
lithium battery voltage display, internal resistance measurement.

Features

The SKYRC D400 is a powerful, microprocessor-controlled charging/discharging station with battery management for use with all common battery types with an integrated balancer for up to 7S LiPo, LiFe and LiIon, a maximum of 20A charging current and a maximum of 5A discharge current. 20 battery profile memories (10 per channel) are available for quick program calls when charging the same batteries. The additional LiHV mode is able to charge the new generation of LiPo batteries with a charging voltage ending at 4.35 V. It offers automatic charging current limitation, capacity limitation, temperature threshold and charging time monitoring. All of this is for safety when handling the charger and your batteries.

Technical data:

Input voltage: AC 100-240V / DC 11-18V
Charging power DC input: 2 x 400W
Discharge power: 36W
Charging current: 0.1 - 20.0A
Discharge current: 0.1 - 5.0A
Balancer current max.: 500mA/cell
Trickle charging current: 50mA - 300mA & OFF
Display backlight: Blue
Housing material: metal
Maximum cells: LiPo/LiFe/LiIon: 1-7 cells
NiMH/NiCd: 1-18 cells
Pb: 2-24V
Weight: 2510g
Dimensions (LxWxH): 194 x 258 x 82.5mm
