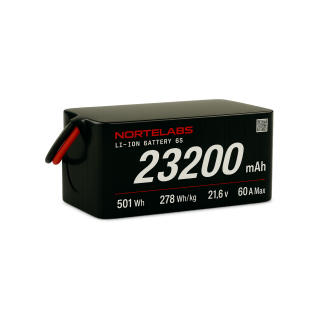

UAV Li-ion 23200mAh 6S4P 21.6V Battery Pack
Cell Chemistry: Lithium-Ion (Li-ion)

Nominal Voltage: 21.6 V

Voltage Range:

Max Charge Voltage: 25.2 V
Max Discharge Voltage (Recommended): 16.2 V
UAV Min Voltage for Landing (assuming 1C discharge): 15.9 V
USV Cut-Off Voltage (Assuming 0.5C discharge): 15.0 V
Rated Capacity: 23.2 Ah

Energy: 501 Wh

Energy Density: 278 Wh/kg

Max Continuous Discharge: 60 A

Max Charging Current: 11.6 A

Dimensions: 13.1 X 8.8 X 7.3 cm

Weight: 1.80 kg

Certifications:

CE & ROHS



Dangerous Goods Certification:

Fully compliant with international standards for the transport of lithium batteries by road (ADR) and sea (IMDG).

Quality & Technology:

Exclusive Nortelabs Assembly Process: Precision-engineered using CNC-assisted workflows to ensure exceptional consistency, structural integrity, and repeatability in every build.



Advanced Quality Control & Performance Validation:

Each unit undergoes rigorous end-of-line testing, including thermal imaging diagnostics and precision instrumentation analysis. This ensures full compliance with performance specifications and accurate cell classification — delivering unmatched reliability, efficiency, and safety in every battery.

Factory-Fresh Grade A Cells:

Sourced exclusively from certified top-tier manufacturers, ensuring maximum performance, reliability, and capacity.



Robust Construction:

Military-Grade Assembly: Engineered to MIL-SPEC standards with proprietary structural design, delivering extreme durability, operational resilience, and mission-ready reliability in demanding environments.

Datasheet available on request
