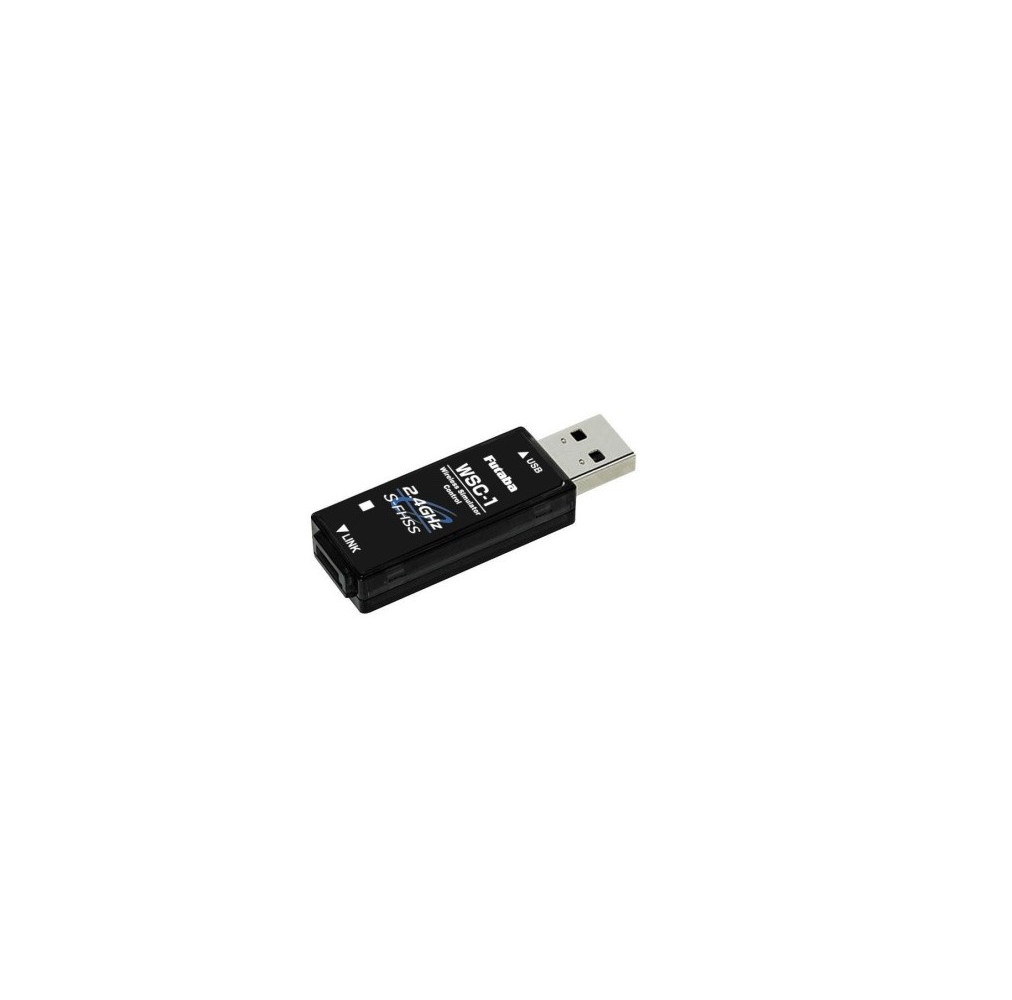

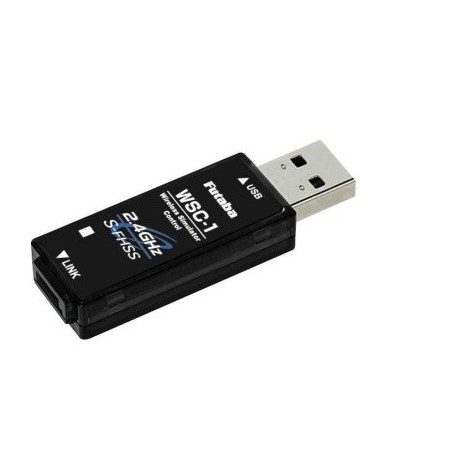

WSC-1 S-FHSS USB SIMULATOR ADAPTER FUTABA
This WSC-1 is a USB interface that allows you to connect your FUTABA transmitter with your computer.
The WSC-1 uses the 2.4 GHz S-FHSS system. It will therefore be necessary to program your transmitter in S-FHSS.
It will then be possible to use it with your Real FlightRF8 / 9 simulator or later.
Your Futaba transmitter in 2.4 GHz S-FHSS can also be used as a game controller for Windows®.

WSC-1 Specifications

(Specifications and dimensions are subject to change without prior notice accompanying technological developments.)
• Applicable operating system: Windows ®10 / 8.1
• USB connector: USB Series A connector
• Operating voltage: 5.0 V ± 0.2 V (USB bus power)
• Current consumption 20mA
• Operating environment: temperature -10 ? + 45 ?
• Dimensions: 18.2 x 56.5 x 9.0 mm
• Weight: 7.6 g
• Maximum operating range: approximately 10 m without obstacles (optimal condition)
* The PC must have a USB port (Type A).
* The "Real Flight" that can use the WSC-1 as a USB interface is RF8 (update required for the final version) or later.
Cannot be used with earlier products.
