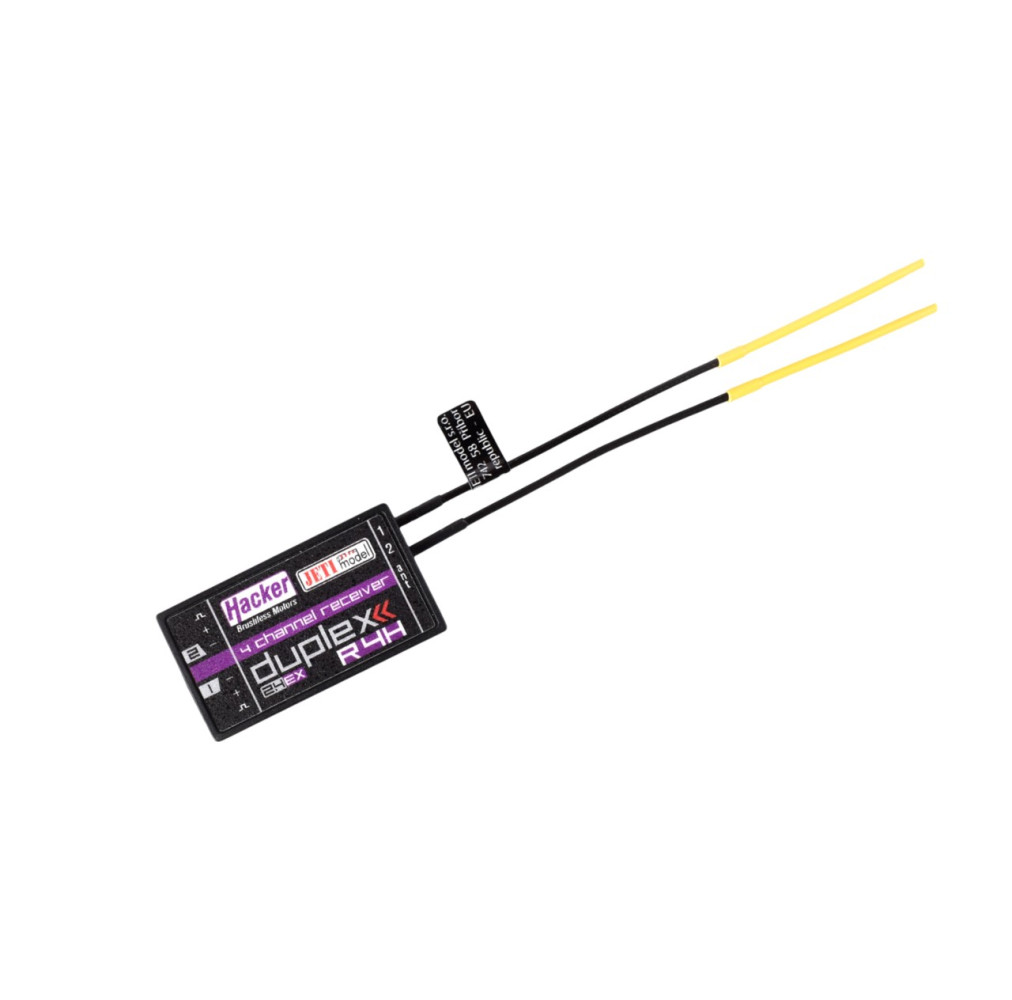

DUPLEX 2.4EX receiver R4H
DUPLEX 2.4EX receiver R4H

- the most economical receiver of the JETI Duplex series
- with full range!
- standard with 4 servo channels (fixed)
- by changing the FW also as a 3-channel receiver with Jeti Basic telemetry (not EX!)
- Small design with full-fledged housing
- manufactured exclusively for Hacker Motor

technical data:
weight [g] 7.6
dimensions [mm] 40 x 22 x 7
channels max. 4
Telemetry Jeti basic telemetry ( not EX, display of the values ??on the JETI box/emulation )
Temperature range [°C] -10 ... 85
Antenna length [mm] 2 x 100
Voltage range [V] 3.2 - 8.4
Current consumption [mA] 30
Satellite receiver connection No
Output power [dBm] 15
Reception sensitivity [dBm] -106
Protocols: only servo signal output, no PPM/UDI/EX bus
(no setting via the device overview of the Jeti Duplex DC/DS transmitter, this receiver was deliberately designed to be simple)
