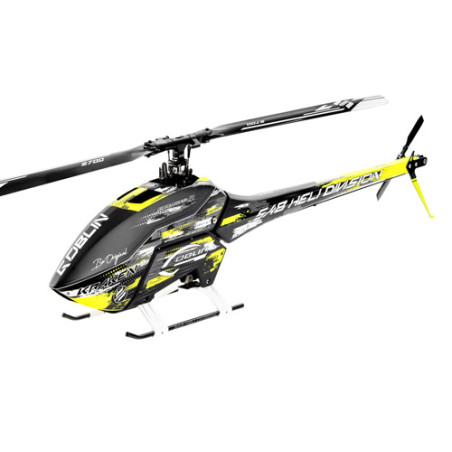

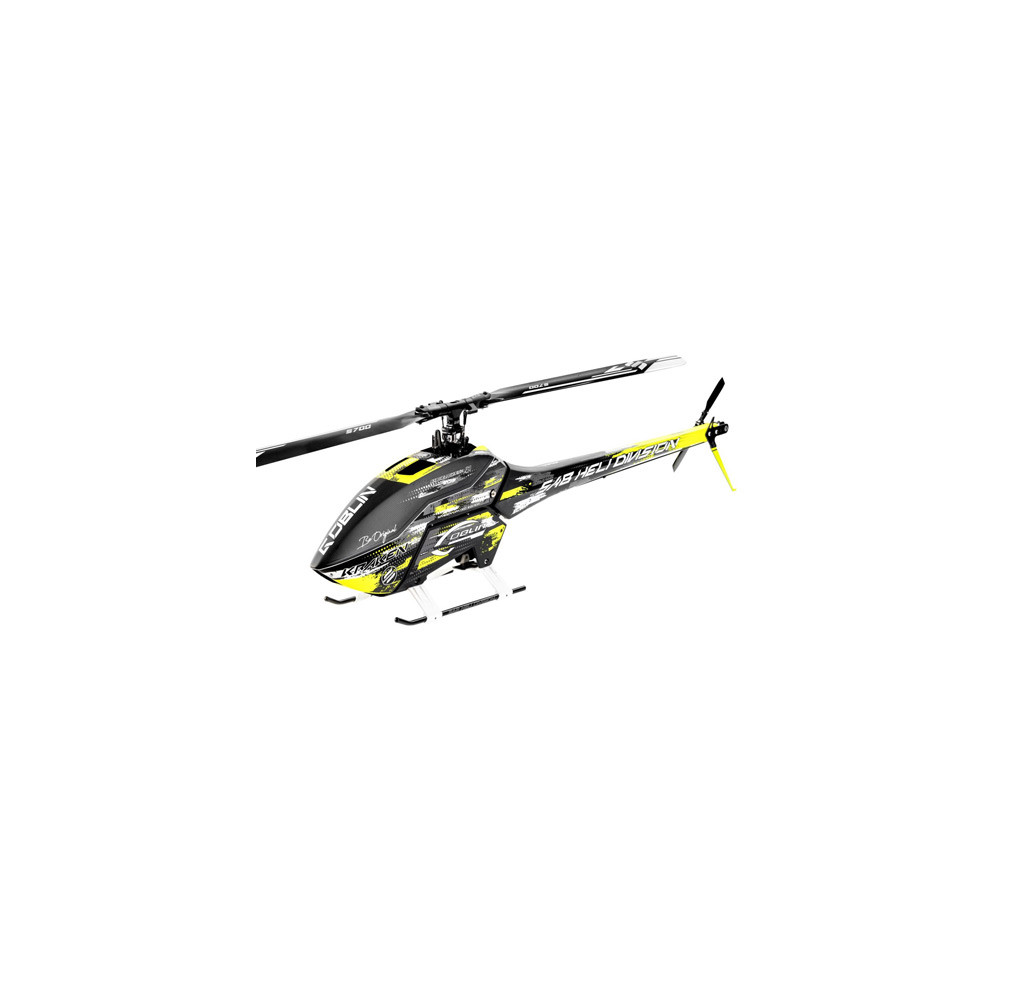

SAB Goblin Kraken S 700
Characteristics
• Kraken 700 S is the latest version with a completely renewed graphic scheme and Goblin RAW gearbox
• New S 700mm rotor blades
• These new SAB rotor blades deliver incredible performance
• New drive train in aluminum housing, strong, light, modular.
• New main rotor shaft made of a steel alloy with integrated freewheel.
• Independent shafts for tail and main belt drive for easier construction.
• New ultra-light 7075 aluminum rotor head, highly adjustable, leading linkage and fully adjustable damping system.
• New tail housing and faster replacement of the tail fin.
• Overall 22% lighter than the old Goblin
• New chassis and tail design with integrated components and lightweight canopy.
• New improved crash system for the tail boom
• More crash-resistant mechanics


Technical data
Rotor diameter: 1578mm
Rotor blade length: 700mm
Tail rotor blade length: 105mm
Motor size (max.): 62mm diameter / 70mm height
Flight battery: 12S 44.4V LiPo 5000mAh (4200 to 5500mAh)
Battery compartment: 56x60x320mm
Servos: Standard size (40mm), digital, HV
Drive recommendation: Controller 200A, motor 500-560KV
Weight: 2700g (without flight battery/drive)


Recommended components (not included)
• Swashplate servos: Standard 40mm
• Tail servo: Standard 40mm
• Brushless controller / ESC: 12S, 160-200A
• Brushless motor: 12S 500-560KV, max. 62x70mm
• Battery: 12S 44.4V LiPo 4200-5500mAh, max. 60x58x350mm


scope of delivery
• 1x SAB Goblin KRAKEN S 700 Heli Kit
• 2x SAB S 700mm carbon main rotor blade
• 2x SAB 105mm carbon tail rotor blade
• 1x 21Z motor pulley
• 2x battery rail
• 1x assembly instructions


Is still needed
• 1x remote control (at least 6 channels)
• 1x receiver (matching the remote control)
• 1x brushless controller (12S, 160-200A)
• 1x brushless motor (12S 500-560KV, max. 62x70mm)
• 3x swashplate servos (standard size (40mm))
• 1x tail servo (standard size (40mm))
• 1x flybarless system (e.g. MICROBEAST Plus)
• 1x flight battery (LiPo 1x 12S 44.4V 4200-5500mAh or 2x 6S 22.2V 4200-5500mAh)
