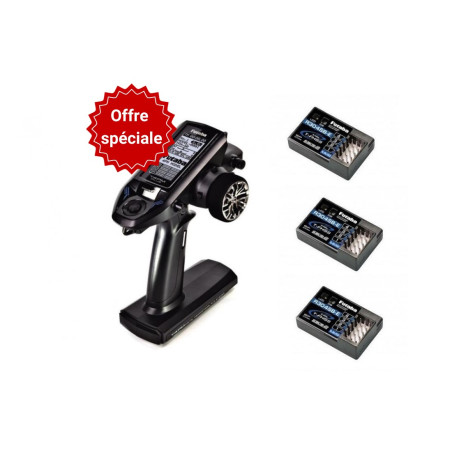

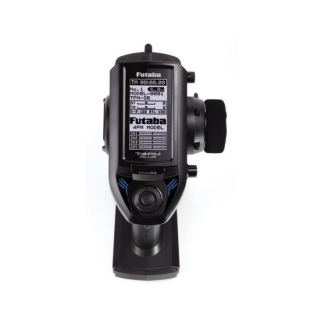

FUTABA 4PM PLUS -R304SB-E 2.4GHZ
FEATURES :
T-FHSS SR (SUPER RESPONSE) AND T-FHSS TELEMETRY:
In addition to the T-FHSS telemetry system, we have added an SR-Super Response system (T-FHSS SR) which accelerates processing speed to further improve response. The SR system does not support the telemetry function. * Models R304SB and R304SB-E are not compatible with the SR system.
T-FHSS MINIZ SYSTEM:
By choosing the MINIZ system in the receiver setup menu, you can use the dedicated Kyosho Mini - Z Evo RA-42 receiver. The dedicated RA-42 receiver must be purchased separately.
FHSS MINIZ SYSTEM:
By switching to the MI-FH system in the receiver setup menu, you can use the Kyosho Mini - Z FH FS-RM005 module to connect to a non-Evo Mini-z.

TELEMETRY SYSTEM:
T4PM transmitter adopted the newly developed two-way communication system “T-FHSS”.
MODEL MEMORY FOR 40 MODELS:
Model names can use up to 10 letters, numbers and symbols. A template memory with different configurations can be created using the template copy function.
S.BUS SERVO:
This special function allows you to define the parameters of S.Bus servos whose parameters are modified using the PC Link software. In addition to the usual cable system, it can be configured wirelessly in combination with the R334SBS or R334SBS-E.

DIRECTION MIXING:
Smooth turns are possible thanks to the independent adjustment of the left and right steering servo.

BRAKE MIX FOR LARGE SCALE CARS (BRAKE): The brake mix of the front and rear wheels of 1/5 gasoline cars can be adjusted independently.

GYRO MIX:
The sensitivity of Futaba gyroscopes can be adjusted from the T4PM.

4WS MIXING FOR CRAWLERS AND OTHER 4WS TYPES:
This feature can be used with Crawlers and other types of 4WS vehicles.

DOUBLE VARIATOR MIX FOR TRACKED VEHICLES (DOUBLE ESC):
The front and rear controllers are controlled independently.

CPS-1 MIX (CPS MIX):
LED lighting and flashing control using our CPS-1 power switch can be combined with steering and throttle operation.

ABS BRAKE SYSTEM (TH A.B.S):
This function applies the brakes so that the tires of gasoline cars, etc., do not lose grip on the track, even when braking in corners.

THROTTLE ACCELERATION (ACCEL):
Gasoline cars have a time lag before the clutch and brakes become effective. This function reduces this delay.

GAS SPEED:
Sudden trigger pull on a slippery track will only cause the tires to spin and prevent the model from accelerating smoothly. By adjusting the GAS speed function, operation can be carried out easily and smoothly. It also improves battery consumption.

STEERING SPEED (SPEED):
When you feel that the steering servo is too fast, etc., the operating speed of the servo can be adjusted.

TIMER:
The stopwatch can record 100 times and the total time. The timer can also be started automatically by a trigger operation. Running time and sound alarm can be set. The fuel replenishment time is indicated by an audible alarm. A timer is also available.

INTER SELECTION FUNCTION (SWITCH) / DIGITAL FUNCTION (TRIM DIAL):
This function allows you to activate 2 switches, wheel and digital trim. The step amount and operating direction can also be adjusted.

THE TRIGGER POSITION CAN BE CHANGED:
The throttle trigger position can be moved forward or backward.

TENSION ADJUSTMENT FUNCTION:
The tension of the steering wheel springs and the throttle trigger can be adjusted externally.

MECHANICAL ATL ADJUSTMENT:
Make this adjustment when you want to reduce the total travel on the brake (pressure) side of the throttle trigger.

TRANSMITTER SPECIFICATIONS:
T-FHSS SR / T-FHSS / S-FHSS SYSTEM, WHEEL, 4 WAY.
SECURITY: F/S, B-F/S, ID
TRANSMITTER FREQUENCY: 2.4 GHz band

CONTENT :
-T4PM transmitter
-R304SB-E
-TX battery box
- Mini screwdriver
Items needed:
- Battery emission several choices, Nimh, Life, LiPo (see options tab)
- TX charger (depends on the battery chosen, see options tab)

Compatible receivers:
S-FHSS:
R203GF
R204GF
R603GF
R2004GF
R2006GS
R2008GS
R2104GF

T-FHSS car:
R304SBE
R324SBS

T-FHSS SR (Quick Response):
R334SBS R334SBE
