Flysky Noble NB4+ transmitter with 1 receiver
Flysky Noble NB4 transmitter with 1 receiver
The FlySky Noble NB4+ is a feature-rich and powerful remote control for RC cars and boats. Equipped with the third generation 2.4 GHz AFHDS-3 protocol and in conjunction with the included FGr4B receiver, the NB4+ is a modern solution for use in teacher-student situations, among other things. The simple operation and clear menu navigation via the touchscreen display makes it easier for even beginners to get started with controlling remote-controlled models.
The transmitter has an ultra-fast 2-channel mode that ensures low latency and allows users to control the aircraft as precisely as possible - even in the most hair-raising moments. The 3.5-inch display has been significantly redesigned compared to the regular NB4 and now impresses with a really powerful use of contrast and brightness, which makes the NB4+ ideal for outdoor use. Even when the sun shines directly on the screen, everything is clearly legible. Another new feature is the built-in USB-C input, which replaces the previous micro USB port. This not only enables the helpful trainer mode for interactive flight training, but a head tracking device can now be connected to the NB4+ to experience the excitement and pure speed before your own eyes.
Features:
Advanced, modern transmitter
Including extensive teacher-student function
Compatible with all iBUS2 devices and also with some Hobbywing products (e.g. Xerun AXE R2 controller)
Freely customizable channels
Ergonomic design with swivel steering wheel
Suitable for right- and left-handed users
dual battery system
Intelligent RF configuration
Low latency
Can also be used in simulations and similar applications (enabled by default)
Technical data:
transmitter
Type: 2.4GHz ISM
Frequency protocol: AFHDS 3
channels: 8
RC models: car, boat
Distance: >300m (ground)
Channel resolution: 4096
Battery: - 1S / (4.2V) x 4300mAh LiPo
- 3450mAh 18650 battery
Low voltage warning: < 3.65V
Antenna type: External single antenna
Display: 3.5-inch IPS touchscreen, resolution 320x480px
charging interface: USB-C
data interface: USB-C
Temperature range: -10°C to +60°C
Humidity range: 20% to 95%
Online update: Yes
Dimensions: 131.41x115.95x190.56mm
Weight: 520g
Recipient FGr4B
PWM: 4
Type: 2.4GHz ISM
Frequency protocol: AFHDS 3
Suitable transmitters: All transmitters with AFHDS3 support
Antenna type: single antenna
Tension: 3.5-9V
data interface: PWM/PPM/i-BUS2/S.BUS/i-BUS
Temperature range: -10°C to +60°C
Humidity range: 20% to 95%
Online update: Yes
Dimensions: 17x29x16.6mm
Weight: 6.4g

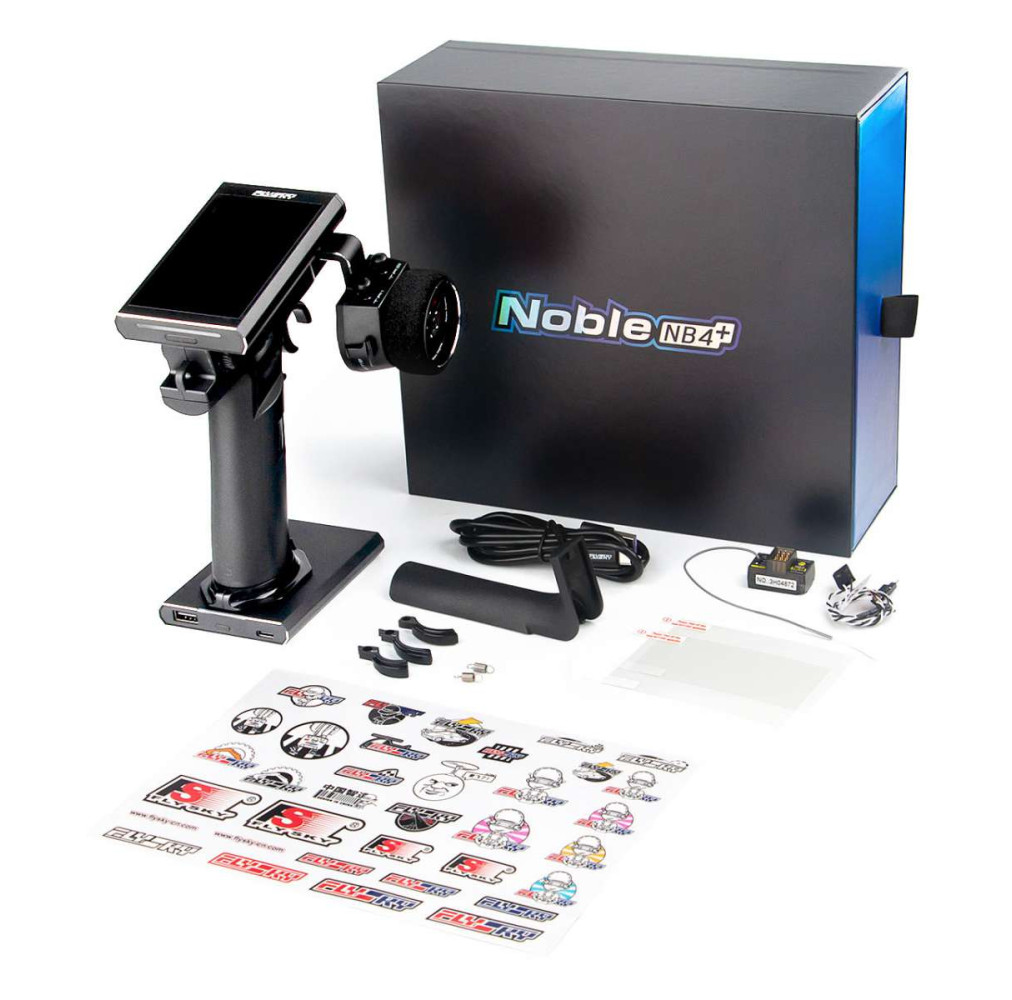

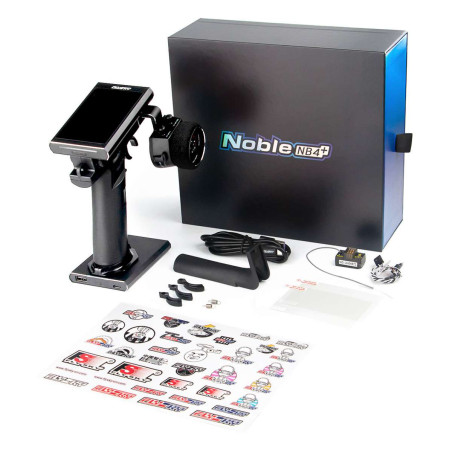

Scope of delivery:
FlySky "NB4+" transmitter
Receiver: FGr4B and cable
USB data cable
handle (S, L)
springs (S, L)
replacement throttle
2x transparent protective film
Instructions
