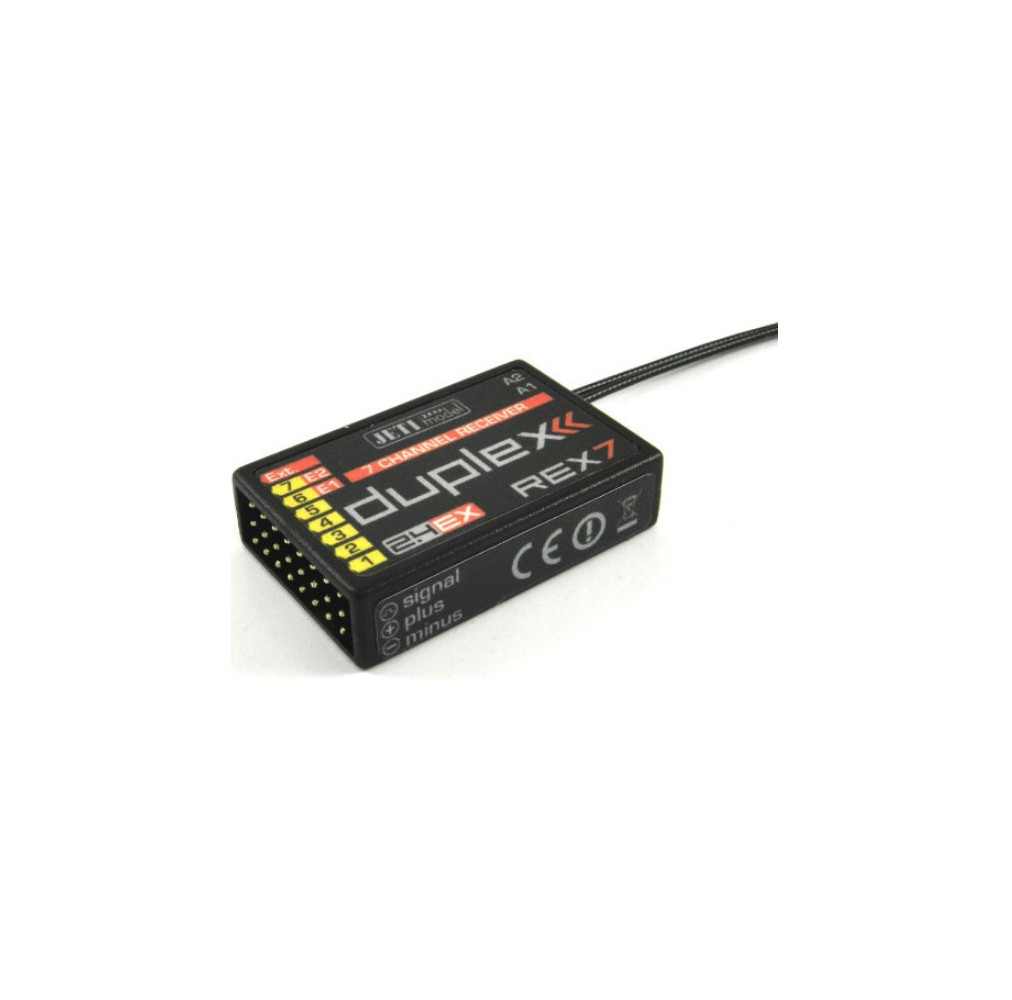

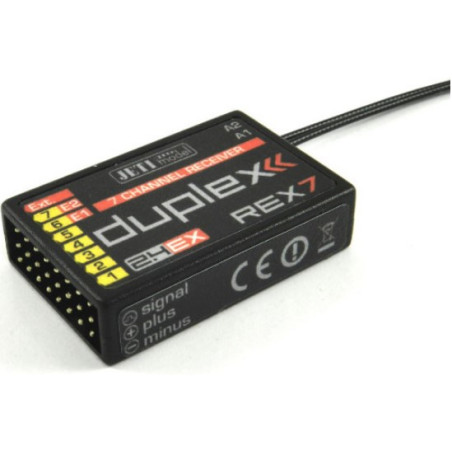

DUPLEX 2.4EX Receiver REX 7
DUPLEX 2.4EX REX 7

- internal memory for logging tel. and control signals
- Protocol support: PPM, EXBUS, EX,..
- programmable output pins
- supports commands
- compact dimensions
- 32 bit processor
- with a full range
- programmed via JETIBOX and also wirelessly using Duplex DC/DS transmitters

- New: JETI-Hacker Ditex Servotelemetry with the REX Receiver
(minimum requirement: REX FW 1.10, DC/DS-Transmitter SW 4.27, Ditex Servo FW 1.17)

techn. dates:
Weight [g] 13
Dimensions [mm] 42 x 28 x 11
Number of channels 7
Telemetry Yes
Operational temperature [°C] -10 ... 85
Compatible protocols DUPLEX 2.4GHz EX, EX Bus, UDI
Antenna Length [mm] 2 x 200
Supply Voltage [V] 3,2 - 8,4
Average Current [mA] 30
Satellite receiver support Yes
Output Power [dBm] 15
Receiver Sensitivity [dBm] -106
