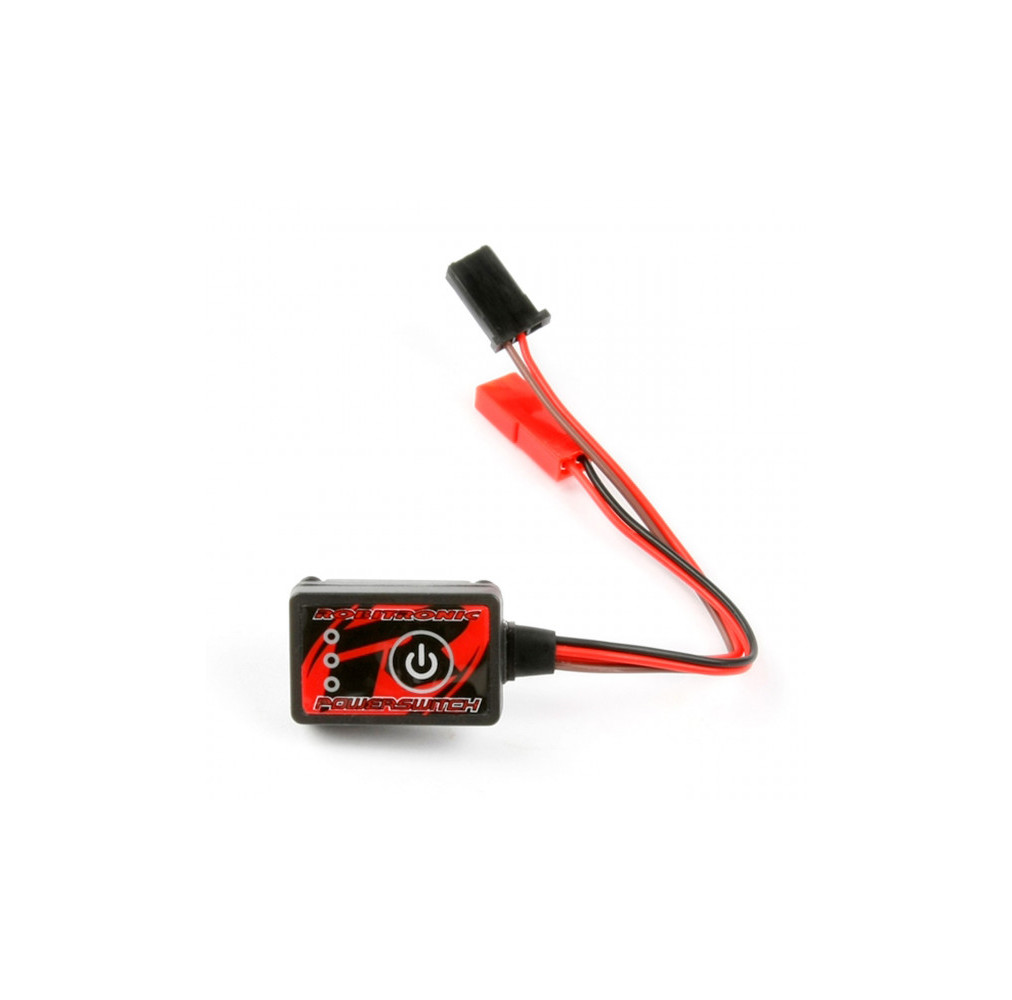

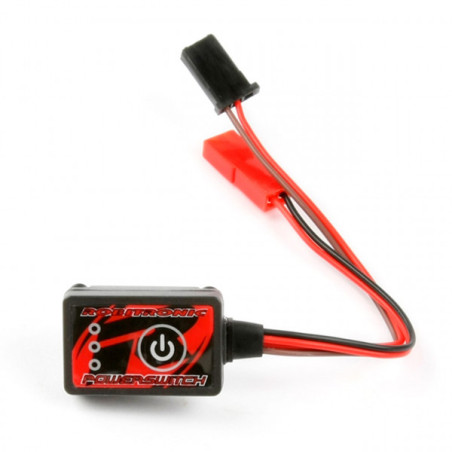

Electronic switch with voltage display
Load capacity:
Thanks to the latest MosFET technology, the power switch is extremely resilient despite its small size.
Its use in large models with up to 3 servos is therefore no problem.
Power consumption: Due to the very low power consumption, the power switch can be connected to the battery for some time without completely discharging it.
For example: A fully charged 1600mAh battery would only be empty after around 950 days.

Features:
Robust and reliable electronic switch for the receiver power supply of combustion vehicles
Completely sealed for protection against dust and water
Programmable for 2S LiPo, 2S LiFe and 5 cell NiMH batteries
Precise charge level display with 3 LEDs
Error detection loose contact/bad battery
Very low internal resistance for minimal losses
Extremely low power consumption when switched off
Very high current carrying capacity

Technical data
Operating voltage 3.5 - 10V
max. current 10A
Power consumption (off) approx. 69µA
Operating temperature range -10°C to +50°C,
Dimensions (L x W x D) approx. 25 x 17 x 7.6mm (without cable)
Weight approx. 9g
