LARGE ACCU-Set, up to 2.5m
Compact size with maximum performance
Minimal impact on flight performance
Innovative cable- and plug-free mounting
Optimized, adjustable cooling reflector
Reduced self-glare
5 sizes for all scales
Specifically for wings and symmetrical for tail
Asymmetric design for maximum durability
Safety holder with position light available
Large systems available as both wired and autonomous battery versions

The battery-powered night-flying blades are the simplest way to illuminate large models indirectly. Based on the standard LARGE and XLARGE systems, these blades include a central battery holder on each light blade to accommodate a small, weight-optimized LiPo battery. The battery simply snaps in place and is held by mounting rings – and the system is active. The LARGE system can be used for a single 8-10 minute flight with a fully charged battery. The delicate yet highly robust carbon fiber tube construction delivers intense light output at low weight, without significantly affecting flight characteristics.

Compared to wired systems, the light output of the lightweight battery systems is somewhat lower, but the system is immediately ready for use with no wiring or soldering required on the airframe. In the delivered condition, the tubes and plates are only pre-assembled and can still be shortened and aligned on the model. This allows for optimal lighting. Once positioned, the arms are permanently fixed with a few drops of epoxy. Asymmetric mounting is also possible (e.g., a shorter arm near the ground).

Technical Data:
Composition: Fiberglass/Aluminium compound, 5mm carbon fiber (CFK) tube, pre-assembled
Voltage: 8V, 1.8A
Operating time: 8-10 minutes
Safety: Integrated safety position light, can be deactivated with a solder jumper to extend runtime
Light intensity: ~1000 Lumen WHITE
Dimentions: 310x85mm
Weight: 2x67g

Purpose of Use:
Indirect lighting fitting bigger models with wingspan of up to 2.5m

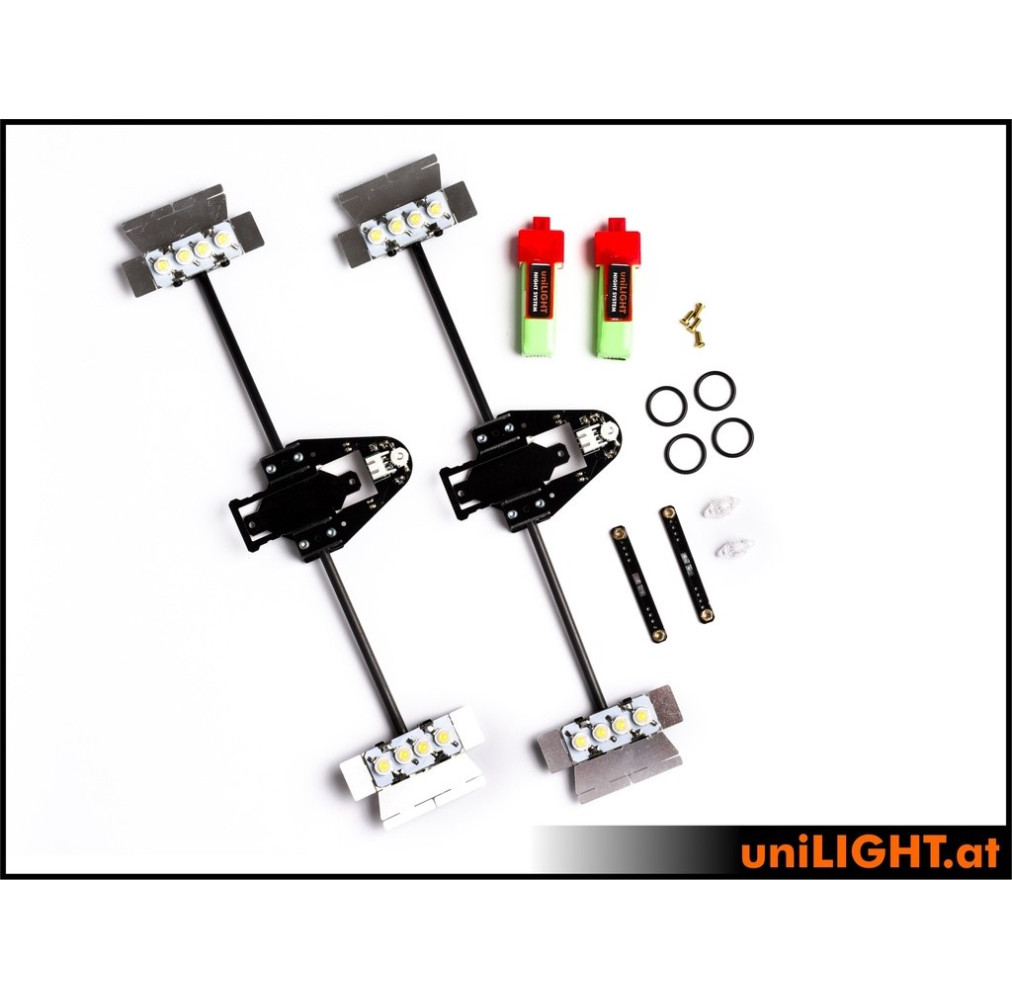

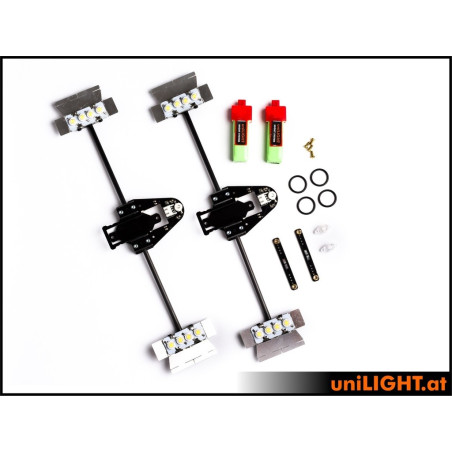

Delivery Content:
2x LARGE Wing-Blades, 2x LIPO-330 batteries, 2x mounting plates, 2x safety light caps, 4x mounting rings
