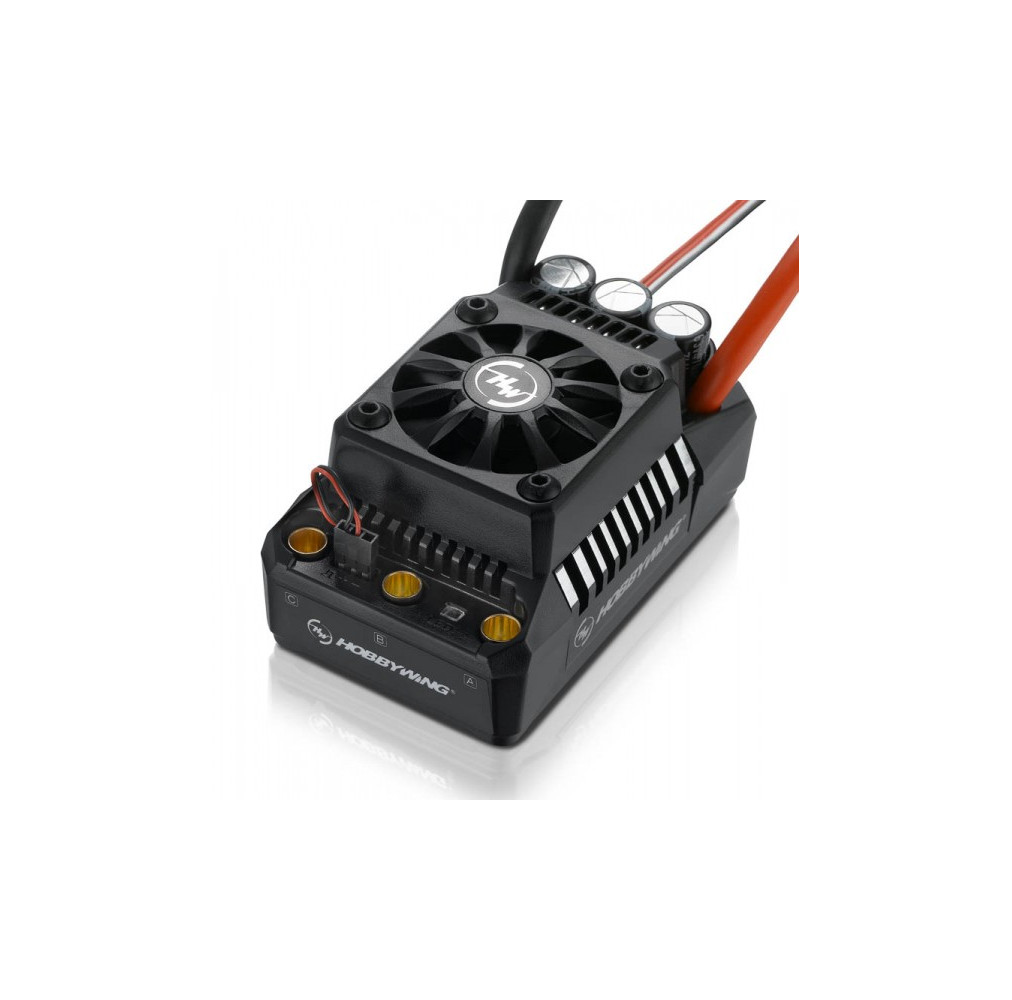

Ezrun ESC MAX5 V3 200A BEC 6A 3-8s WP for 1/5
Ezrun ESC MAX5 V3 200A BEC 6A 3-8s WP for 1/5
Technical specifications:
Plug system battery: without
Socket system motor: 6.5mm gold contact
Cont. / peak current: 200A/1300A
Motor Type: Sensorless Brushless
Applications: 1/5 Scale Touring Car, Buggy, Truggy and Monster Truck
Brushless Motor Limits:
8S LiPo/24S NiMH: KV<1000 (58110 size)
LiPo/NiMH cells:
9-24S NiMH
3-8S LiPo
Internal resistance: ohms
BEC output: 6V/7.2V with 6A (switchable)
Fan: Yes (supply via built-in BEC)
Size (LxWxH): 93.35 x 58.12 x 47.81mm
Weight: 342g
Programming input: fan / PRG input
ESC programming:
LCD program box
LED program box
Set up button
