FMS 1/8 Plane 1700mm PA-18 Super Cub V2 PNP kit
NEW in VERSION 2 : The segmented fuselage design reduces the packaging size by 30%, greatly enhancing transportation convenience for pilots.

The Piper PA-18 Super Cub is a two-seat, single-engine monoplane. It was developed from the Piper PA-11. In close to 40 years of production, over 9,000 were built. Super Cubs are commonly found in roles such as bush flying, banner towing and glider towing.


As a relative of the popular 1400mm J-3 Cub, the 1700mm PA-18 Super Cub retains great flight characteristics while offering increased power and wingspan. Thanks to its functional flaps, high-lift airfoil, rugged landing
gear and oversized balloon tires- the 1700mm PA-18 Super Cub has impressive short take-off and landing (STOL) performance, allowing it to operate from just about any terrain.


Utilizing the latest FMS hardware and design, the 1700mm PA-18 Super Cub has pre-installed ball-link type pushrods, integrated servo connectors in the wing structure and can be assembled very easily using no glue at all.

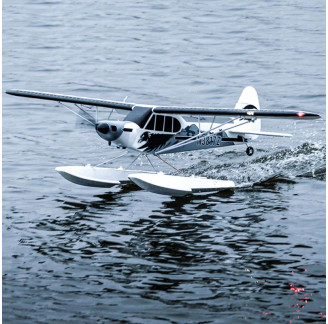

For pilots wanting to get the genuine bush-plane experience, the PA-18 Super Cub can be equipped with floats (not included).


Versatile, fun and exceptionally relaxing to fly- the 1700mm PA-18 Super Cub is a great addition to any fleet!





Key features
NEW! The segmented fuselage design reduces the packaging size by 30%, greatly enhancing transportation convenience for pilots.
Powerful 3541- 750KV Outrunner motor with Predator 45A ESC provides adequate thrust for any situation.
CNC metal landing gear structure for less-than-perfect landings.
6.25-inch oversized balloon tires for all-terrain operations.
STOL capable. (Takes off in less than 3m/10ft)
Pre-installed navigation and landing lights.
Two-piece wing and horizontal stabilizer for easy transportation.
High-strength carbon fiber wing spars.
Integrated servo connectors.
Screw-together assembly.
Large battery bay.
Ball-linked pushrods for increased precision.
Tough two bladed Nylon propellers.
Functional flaps.
Optional floats and stainless-steel wing struts.
Specifications


Wingspan 1700MM/66.9in
Overall length 1136MM/44.7in
Flying weight 2100g
Motor size 3541-KV750
ESC 45A
Servo 17g*6
Radio 6 Channel
CG (center of gravity) 80-85mm(From leading edge)
Prop Size 12*7.5, 2-blade
Recommended battery 14.8V 2600-4000mAh 4s 35C
Battery Connector XT60
Aileron Yes
Elevator Yes
Rudder Yes
Flaps Yes
Retracts No
LED Yes
Approx. flying duration 4-5 minutes
Minimum age recommendation 14+
Experience level intermediate
Assembly time around 40 minutes
Wing load 50g/dm²; 0.11oz/in2
Wing area 42dm² ;651sq.in
Composition Kit
Prebuilt aircraft with servos, brushless motor & ESC installed, propeller.

Final assembly must be done by the user.

The user must provide its radio system and his battery.



What you need to complete
5CH+ Transmitter
Receiver
LiPo 4S 14,8V 2600-4000 mAh Battery
LiPo Charger
