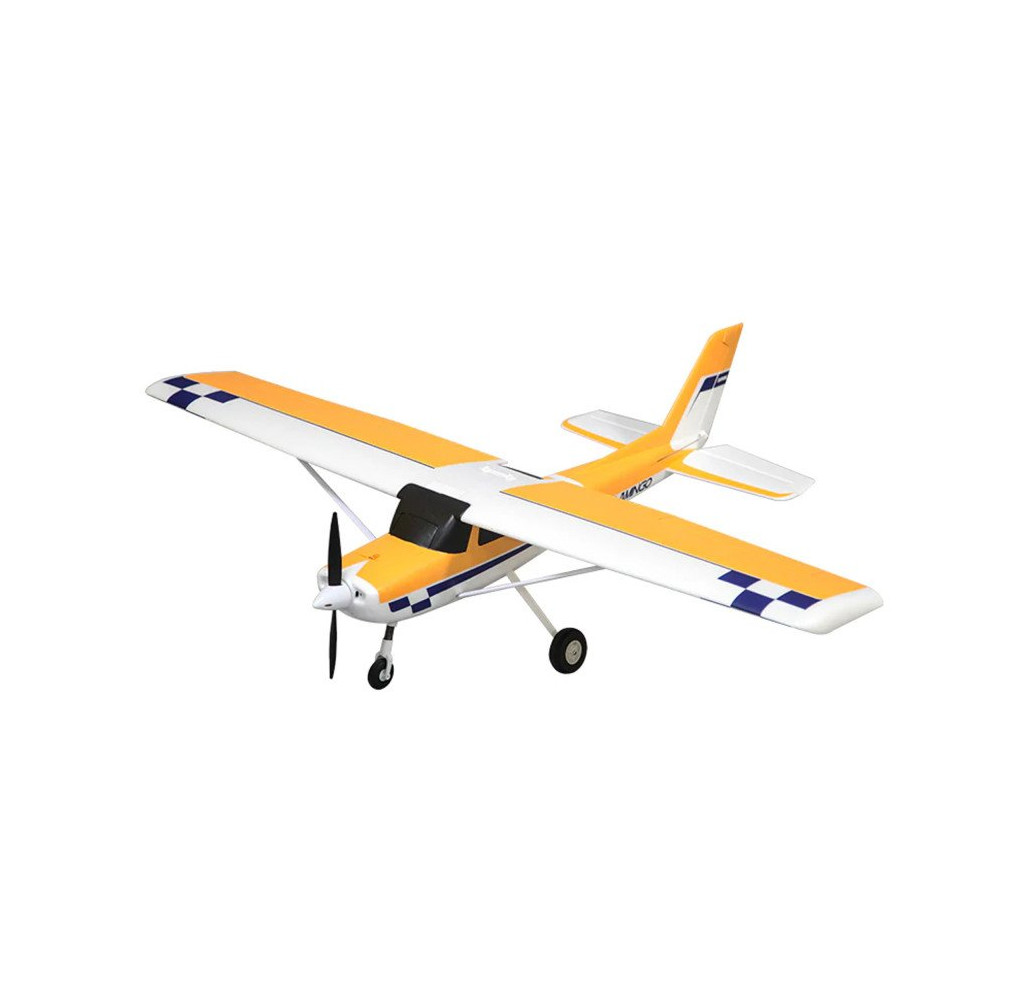

FMS 1220MM RANGER EP PNP YELLOW W/REFLEX V3
FMS 1220mm RANGER EP PNP YELLOW REFLEX V3 RC PLANE
The FMS 1220mm Ranger PNP (Plug-N-Play) in yellow is an extremely stable and versatile high-wing platform, ideal for intermediate pilots who already own their radio gear (transmitter, receiver, and battery). With its robust design and Short Takeoff and Landing (STOL) capability, the Ranger can be flown confidently in almost any field.

This **PNP** version includes the powerful propulsion system, all servos, and the advanced Reflex V3 Flight Controller pre-installed, providing assisted modes that enhance safety and flight control.

Key Features
Reflex V3 Controller (Pre-installed): Offers three selectable flight modes: Stabilized, Optimized, and Off, to suit all skill levels.
STOL Capability: The high-wing design and powerful system allow for very short takeoffs and landings, making it ideal for operating on small surfaces.
Durable Landing Gear: Equipped with oversized wheels and durable metal landing gear to absorb impacts on uneven terrain.
Durable Construction: Made from tough, resilient EPO foam.
Power Electronics Installed: Motor, ESC, and Servos come factory pre-installed.
Simple Assembly: Quick, glue-free, modular assembly.
Specifications
Wingspan 1220 mm (48 in)
Overall Length Approx. 835 mm (32.9 in)
Flying Weight Approx. 1200 g
Motor 3136-KV1200 Brushless (Installed)
ESC 20A Brushless (Installed)
Servos 4 x 9g (Installed)
Propeller 10*6 2-blade
Recommended Battery (LiPo) 3S 11.1V 1300mAh - 2200mAh 25C (XT60 Connector)
Experience Level Intermediate (or Beginner with Reflex V3)
What's in the Box (PNP - Plug-N-Play)
FMS 1220mm Ranger YELLOW Aircraft (Fuselage, Wings, etc.)
3136-KV1200 Brushless Motor (installed)
20A Brushless ESC (installed)
4 x 9g Digital Servos (installed)
Reflex V3 Flight Controller (installed)
Instruction Manual
Needed to Complete
6-Channel (or more) Transmitter (Radio)
6-Channel (or more) Receiver (compatible with Reflex V3, plugs into the unit)
3S 11.1V 1300mAh - 2200mAh 25C LiPo Battery with XT60 Connector
LiPo Battery Charger (3S compatible)
