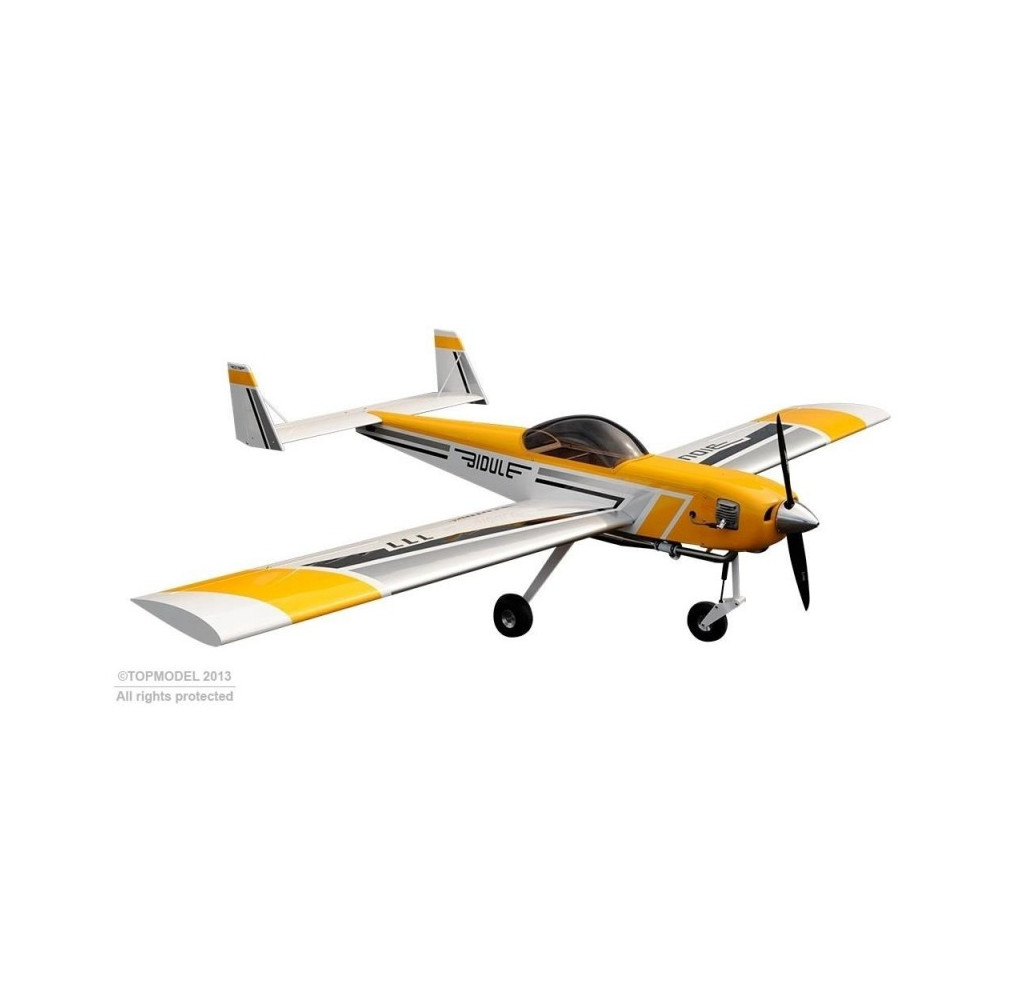

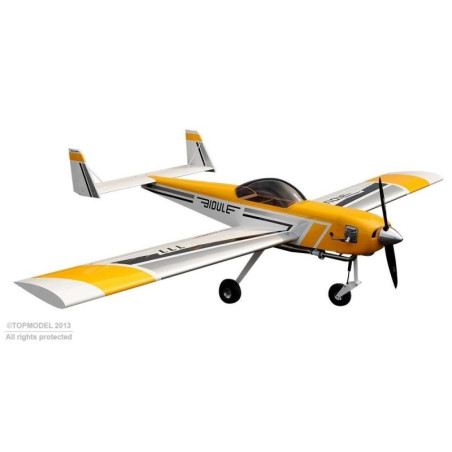

RC plane Ecotop BIDULE 111 ARF approx..3.00m
Heavy duty tricycle landing gear
Ground clearance large enough for two-blade propellers up to 27" in diameter
Fiberglass engine cowling (delivered painted)
Smoke canopy mounted on its bucket: can be easily disassembled to expose the entire top of the fuselage from the firewall
Wings in 2 parts (carbon fiber key)
Empennage is removable
Drift removable by 4 screws (with captive nuts)
Can be motorized with engines from 35cc for those who practice towing occasionally
Technical characteristics
Span : 3.00m
Length : 2.16m
Wing area: 135dm².
Weight in flight : 13 - 15 Kg
Wing profile : NACA 2414
Engine : from 60 to 111 cc 2T
RC functions : rudder (2 servos : SC0252MG), elevator (2 servos : SA-1258TG), ailerons (2 servos : SA-1258TG), flaps (2 servos : SA-1258TG), tow hook (1 servo : DES 806MG), nose wheel (1 servo : DES 806MG), motor (1 servo : DES 806MG)

Fuselage entirely built in CTP-balsa structure and covered with Oracover® with factory-installed decoration. Wing key sleeve installed - Triangulation done at the factory. All captive nuts for gear, wing and stab attachment are in place.
Fiberglass engine cowling, painted.
Smoked transparent PVC bubble, ready to be installed on its bucket, painted. Balsa bucket, covered with canvas, finished and with fastening system installed.
Painted fiberglass main gear. Special front axle, hyper resistant, damped and steerable. Special steering system with silent-block "Servo-saver".
Wings made of Oracover® structure (2 parts). Ailerons and landing flaps finished with stick hinges installed to glue. Decoration done at the factory. Tie rod installed. Aileron and flap servo plates prepared. Servo cable routing strings passed through the wing. Captive nuts installed at the root for wing attachment.
Carbon tubular wing key.
Oracover® canvas tailplane structure with finished rudders, stick hinges installed, to be glued. Removable drifts, captive nuts installed.
Accessories (1500cc fuel tank, towing hook, metal horns, wheel axles, quick links, clevises, screws, etc.).
Illustrated step-by-step assembly instructions.
