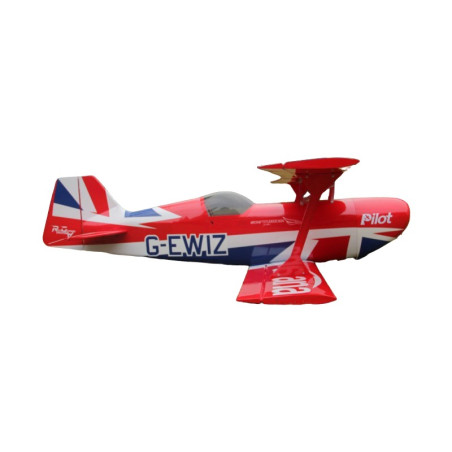

Pilot RC PITTS CHALLENGER 87" 2.20m (120cc) 04 RED ARF
Most :

• Patented Pilot Rc rapid wing assembly
• Quick fixing canopy without screws. Quick release with new safety latch design.
• Solid and lightweight construction
• Designed for 3D and imposed aerobatics
• Interlining REF: 21-010, 21-023, 21-052
• Location provided for canister
• Engine cover with externally invisible fixing
• All accessories are included (horns, yokes, linkages, etc.)
• Removable wings and stab
• Removable fin
• Carbon reinforcement in the fuselage
• Drilling template for motor mounting

Advanced pre-installation:
• Glued and pre-installed hinges
• Fuel tank installed
• Pre-installed firewall
• Pre-assembled and painted canopy
• Control rods prepared with ball joint

Carbon fiber accessories:

• Carbon fiber fender key included
• Carbon fiber wing stab key included
• Carbon fiber landing gear included
• Carbon fiber tail wheel included
• carbon fiber cone included

MATERIALS REQUIRED:
Engine: 120cc (easily fits DLE120 and DA-120 engines)
Servos: x7 to 8 high torque plus throttle (x1 per total aileron x4), x1 elevator and x1 on rudder

Extension wire length required:

x4 for aileron servo
x2 for the receiver
x2 for depth
x1 for servo motor
Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories…

Features :

Wingspan: 2.20m

Length: 2.12m

Wing area: 146.5dm²

Weight: 13.4kg

Engine: 120cc

Radio: 7 channels
