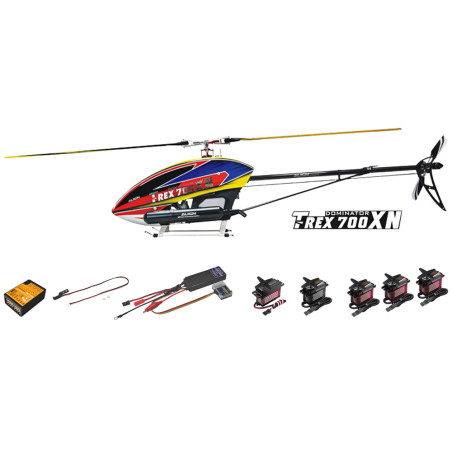

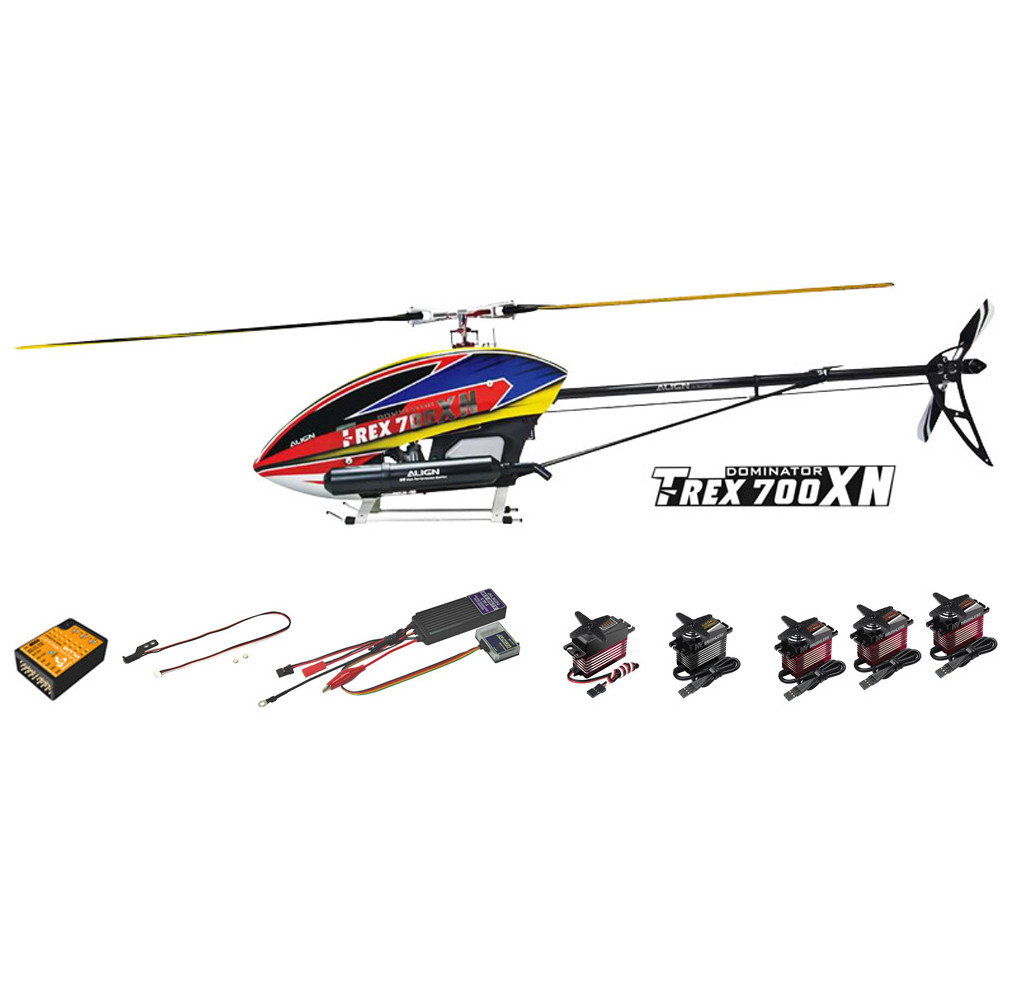

Align T-REX 700XN Dominator Super Combo
Technical data
Length: 1346mm
Height: 384mm
Width: 202mm
Main rotor blade length: 700mm
Main rotor diameter: 1570mm Tail rotor blade length:
106mm Tail rotor diameter:
281mm
Motor pinion: 13Z
Main gear: 107Z
Autorotation gear: 104Z
Tail rotor gear: 22T Gear
ratio: 8.23:1:4.73
Tank capacity: 63 0cc
take-off weight (with battery): 4540g

scope of delivery
• 1x Align T-REX 700XN Dominator
• 1 pair of 700mm carbon main rotor blades
• 1 pair of 106mm carbon tail rotor blades
• 3x Align DS820M swashplate servo
• 1x Align DS825M tail servo •
1x Align DS530 throttle servo
• 1x Align B6TX 2-in-1 voltage regulator/preheating unit
• 1x MICROBE AST ULTRA Flybarless System BXM76542
• 1x BEASTX Governor Sensor


Is still needed
• 1x remote control (at least 7 channels)
• 1x receiver (at least 7 channels, suitable for the remote control)
• 1x motor (OS 91-105 or Yamada 91-120)
• 1x resonance silencer (suitable for the motor)
• 1x governor
• 1x starter
• 1x receiver battery
• 1x flybarless system
• 1x fuel pump
• 1x pitch setting gauge
• fuel
