T-Motor AT 2814/1000
High quality, powerful motor suitable for larger aircraft in the Outdoor category. The motor is equipped with a mounting cross for easier mounting on the airplane and a 6mm shaft adapter for propeller mounting. The motor has 10cm long 1.5mm2 (16AWG) cables terminated with bullet connectors.
Key Features
Configuration: 12N14P
Stator Diameter: 28mm
Stator Length: 14mm
Shaft Diameter: 4mm
Motor Dimensions: 35 x 36 mm
Weight: 109 g (with cables)
Wires: 100mm 1,5mm2 (16AWG)
Kv: 1000
Idle Current: 1,2A
Number of LiPo Cells: 2 - 4s
Maximum Continuous Power 180s: 370 W
Maximum Continuous Current 180s: 35 A
Maximum Efficiency Current: 8-28A > 73%
Internal Resistance: 68mOhm

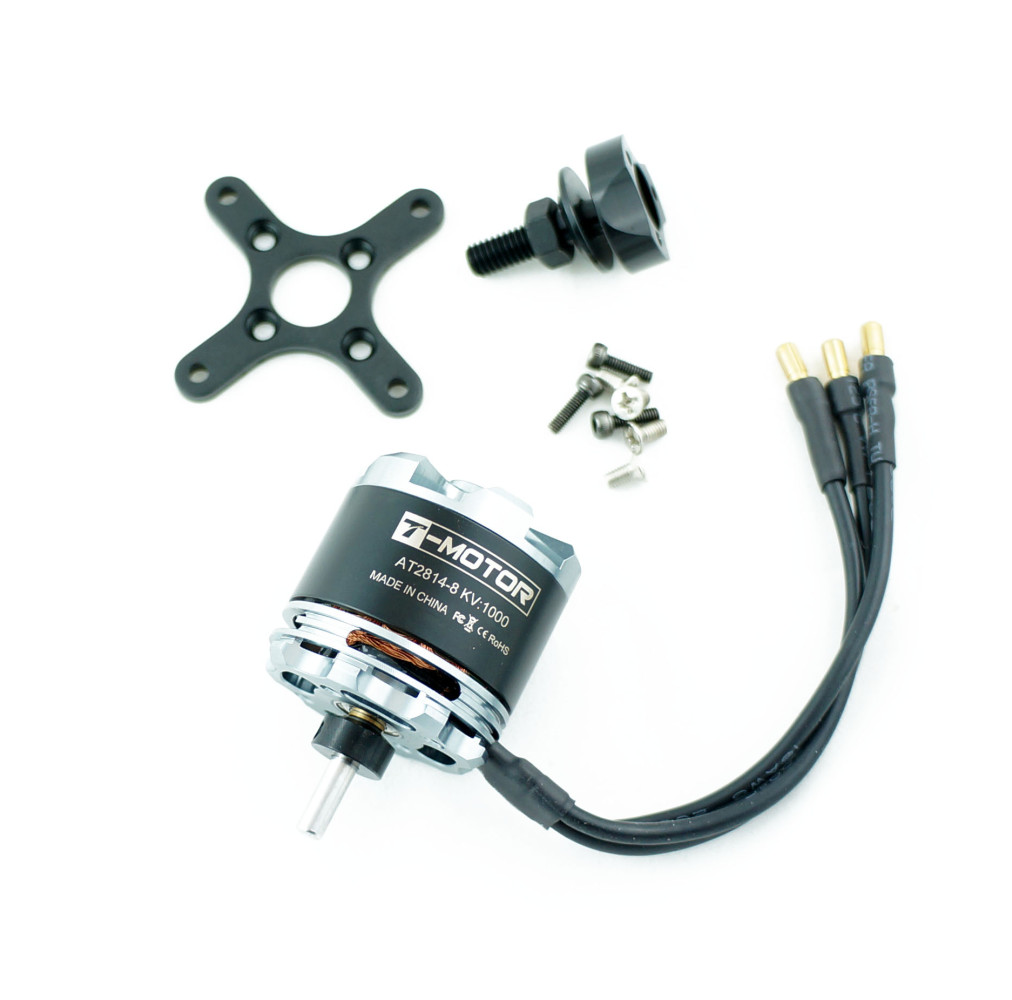

Package Includes
1x Motor
1x Mounting cross
1x Propeller adapter - 6mm
1x Set of screws
