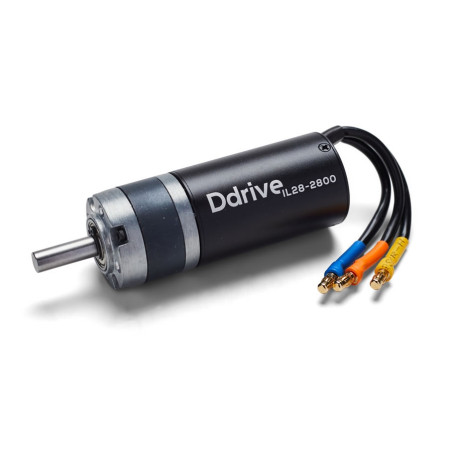

D-Power D-DRIVE IL28-2800 4:1 Getriebemotor Brushless
D-DRIVE IL28-2800 gear motor

D-Power's D-Drive planetary gear motors combine high durability and high efficiency. They impress with their compact dimensions and particularly smooth operation.

The D-Drive geared motors are brushless inrunners specifically optimized for the requirements of gliders. Their slim design and rear-mounted cables allow them to fit into virtually any fuselage.

With high torque, the engines generate an efficiency of up to 80%. This allows the use of large propellers, which in turn guarantees particularly high flight performance.

Features
• Gear motor specially developed for glider models
• CNC milled from high-quality metal
• very high torque
• high resistance and high efficiency
• high-quality magnets installed
• ball bearing
• Play-free running - very quiet and low noise
• compact dimensions

Technical data
• Weight: 195 g
• Ø Motor: 28 mm
• Ø Gearbox: 28 mm (M3 mounting holes approx. 22 mm bolt circle)
• Total length: 73 mm
• Ø Shaft: 6 mm (15 mm free shaft length flattened)
• Reduction ratio: 4:1
• Speed: 2800 KV
• Efficiency 81%
• Short-term current: 45 A
• Recommended current: 40 A
• LiPo: 3-4 S

Recommended propeller:
• 3S: 16x8“ / 38 A / 5580 RPM / 2300g Schub
• 4S: 13x8“ / 37 A / 8100 RPM / 2300g Schub
