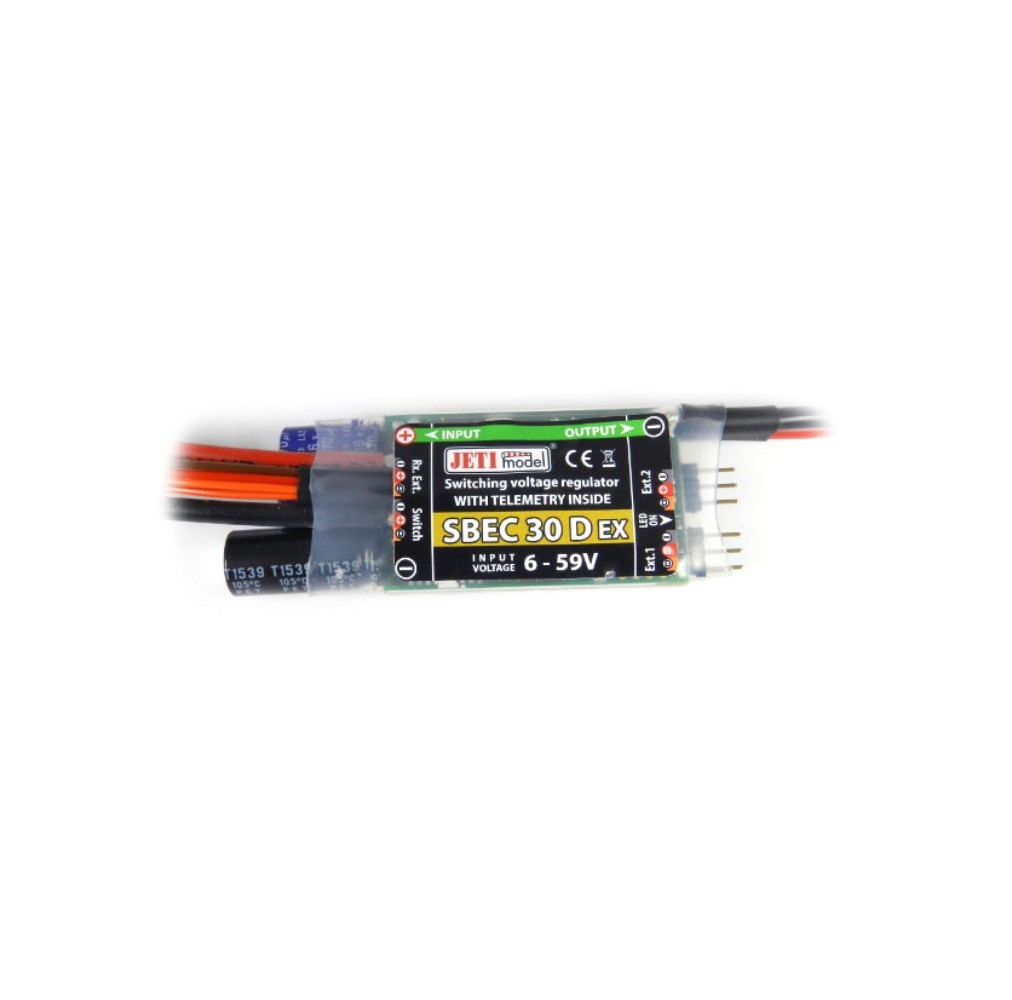

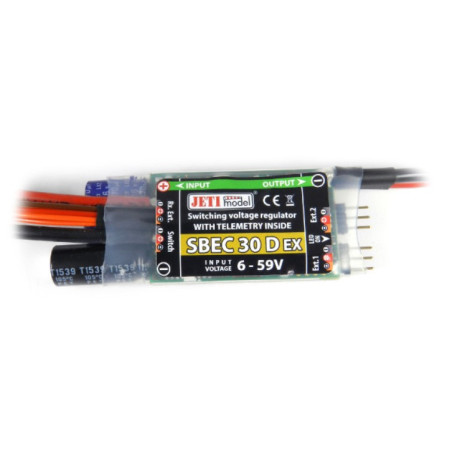

JETImodel SBEC 30 D
JETImodel SBEC 30 D

High-performance BEC with adjustable output voltage. Powers your receiver from the drive battery. Settings can be adjusted via the device overview of Jeti DC/DS transmitters or the JetiBox. Switching on/off is done with the familiar magnetic switch (included) or the optional RC switch. The SBEC 30 D has fully integrated telemetry capabilities and electronic overload protection.

• Adjustable output voltage in 0.1V increments: 5-8.4V
• Supply voltage: 6-59V
• Number of LiXX battery cells: 2 - 15
• Continuous output current: 8A
• Peak output current: 30A
• Telemetry via EX Bus (battery voltage, current flow, capacity, temperature, ...)
• Telemetry values ??can be reset via EX Bus/assigned switch on the DC/DS transmitter.
• Expander function for connecting 2 additional sensors

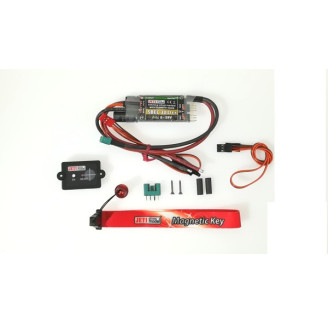

• Magnetic switch transmitter incl.
• Optionally controllable via RC switch (not included)

Technical data:
Recommended input voltage [V]: 6–59
Maximum input voltage [V]: 59
Adjustable output voltage [V]: 5.0–8.4V
Output pulse current [A]: 30 A (5s)
Temperature range [°C]: -20 to +85
Weight [g]: 50
Dimensions [mm]: 72 x 30 x 12

Power consumption in OFF mode:
130µA at 15S LiXX battery
70µA at 2S LiXX battery
