90° ELECTRIC RETRACTING GEAR FOR P-51D MUSTANG HANGAR 9
LEARN MORE

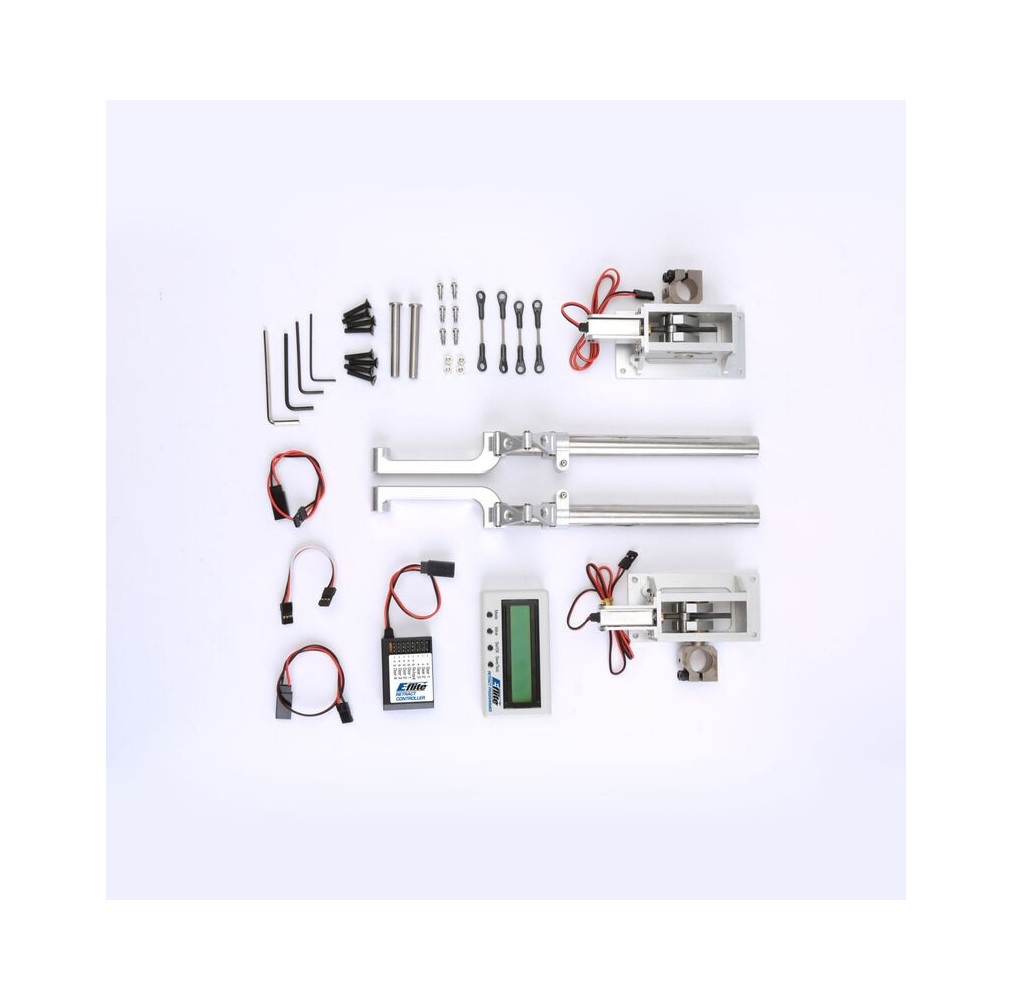

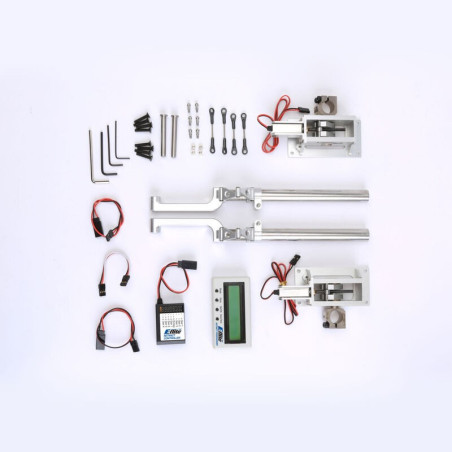

90° ELECTRIC RETRACTING GEAR FOR THE P-51D MUSTANG 60CC HANGAR 9

Ideal for aircraft equipped with a 50 to 60cc gasoline engine or equivalent
Allows operation and sequencing of retracts and gear gates with a single receiving path
Electronic control box offers sequence option and auxiliary power
Included programming unit features an LCD display and remote functionality
CNC-machined aluminum offset oleo spacers provide an authentic P-51 look
Shock-absorbing stainless steel main struts provide smooth ground handling
Titanium axles
Drilled flush mount for professional installation
Includes mounting hardware, tools and wire extensions
Overcurrent protection cuts off retraction if landing gear is stuck
Perfect for 5-1/4" P-51 CNC Aluminum Main Wheel NOT INCLUDED
P-51 60cc retractable rear wheel NOT INCLUDED
Specifications :

Current consumption Standby: 10mA
Operating consumption: 500–700mA
Blocking: 0.8–1A
Supply voltage: 6–8.4V
Aircraft weight: 9-15.9kg
Total gear weight: ~ 220gr
Weight of 1 leg: ~170gr
Pulse width of trigger points Lower: 1.205ms
Pulse width of trigger points Upper: 1.786ms
Sequence duration: @6.0V: 3.5s / @6. 6V: 3s / @7.4V: 2.5s
