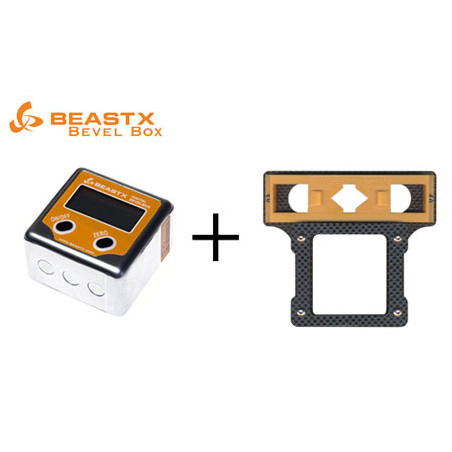

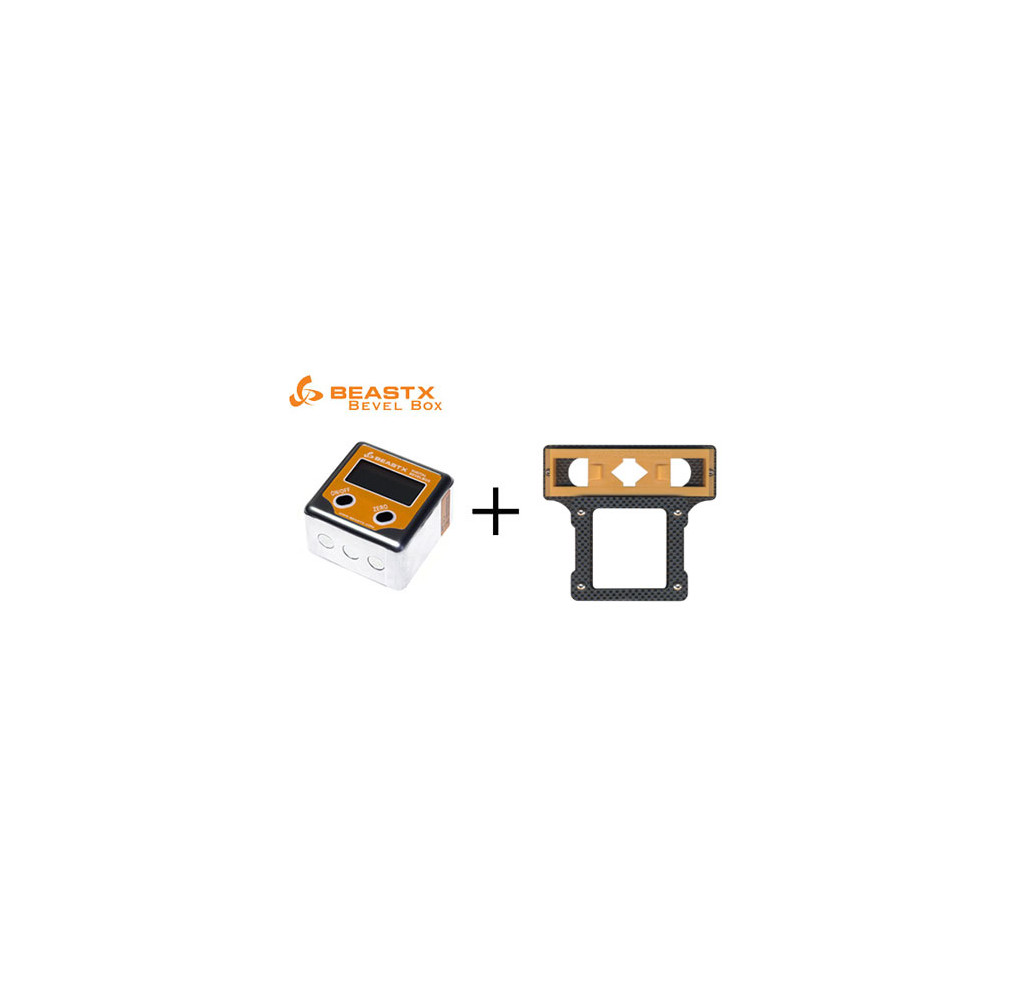

Bevel box and mounting frame
Bevel Box
360° Tilt Sensor "Bevel Box"

The digital Bevel Box solves the problem - simply attach the magnetically mounted device and the exact angle to the horizontal is displayed immediately.
This allows tools to be precisely aligned and alignments to be marked accurately.

* Measuring range 1180 degrees, accuracy 10.1 degrees
* Resolution 0.1 degrees
* Splash-proof housing (IP 54)
* Magnetic base
* Dimensions (W x H x D): 50 x 50 x 32 mm
* Operates with 1x CR 2032 button cell (included)


Mounting Frame for Bevel Box (BXA76005)

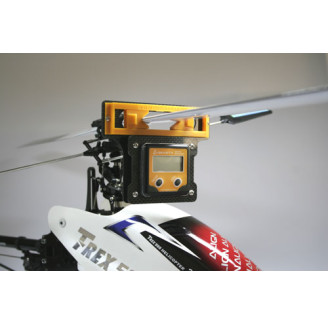

To adjust the pitch values, the mounting frame is simply attached to the rotor blade.
Compatible with T-Rex 450 to 700.

The frame is pre-assembled!
No assembly required!!
Simply insert the Bevel Box and you're ready to go!

Technical specifications:
Material: Carbon, black;
Material thickness: 2.5 mm;

Scope of delivery:
1 x tilt sensor bevel box;
1 x storage bag;
2 x Li-ion button cells /CR2032;
1 x frame;
1 x screws and accessories
