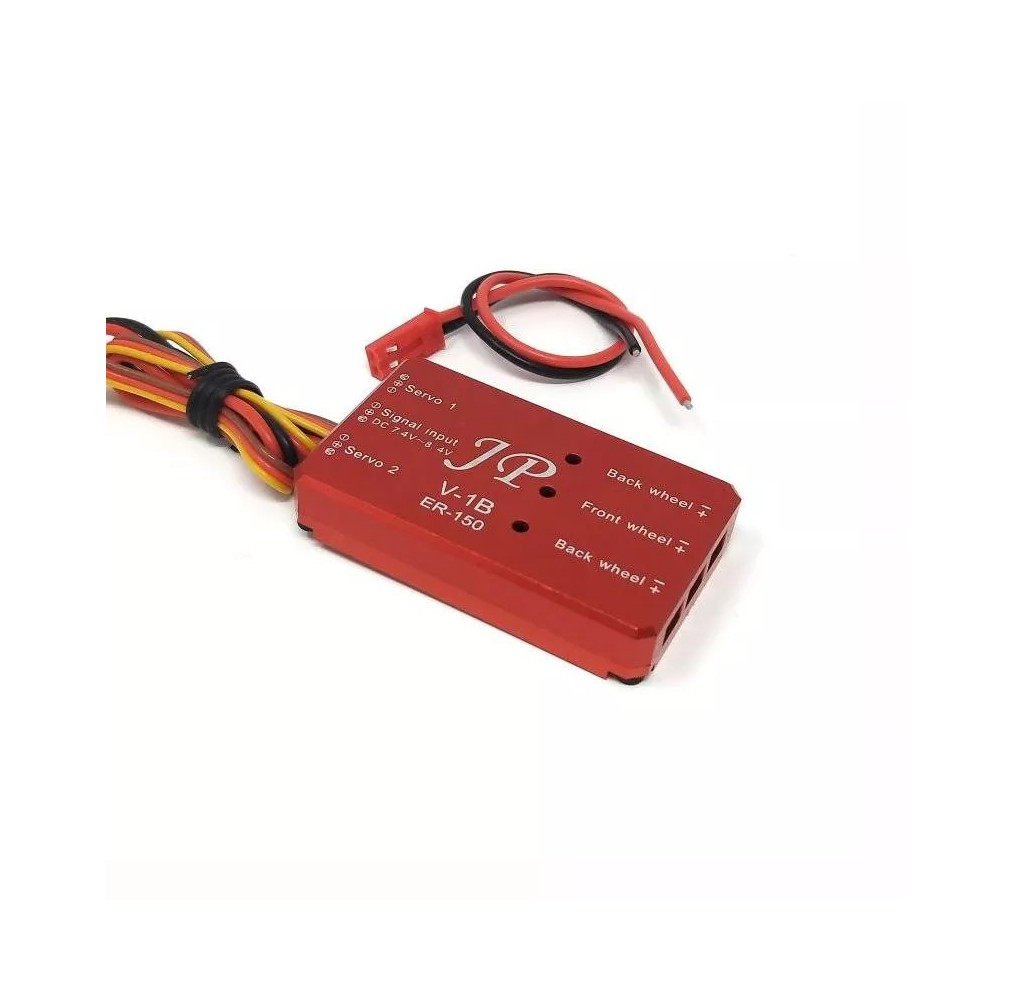

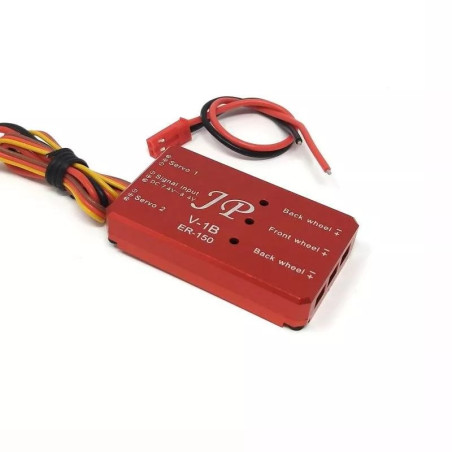

Tricycle Controller Retract Box ER-150 V1 (HV)
Connections
Connect the electric retracts mechanism for the main gear to the "back wheel" plug and connect the nose wheel mechanism to the "front wheel" plug
Connect the doors servos to the "Servo 1" and "Servo 2" plugs
Connect the "signal input" wire and plug to your receiver "gear" channel
Plug a 2s battery
Specifications
Input voltage: 7.4v to 8.4V (2s)
Size: 52 x 32 x 10 mm
Weight: 22 gr
