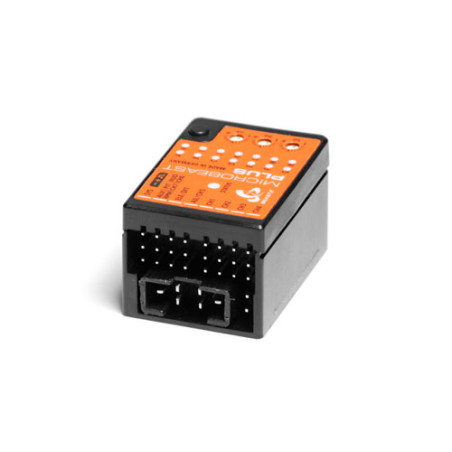

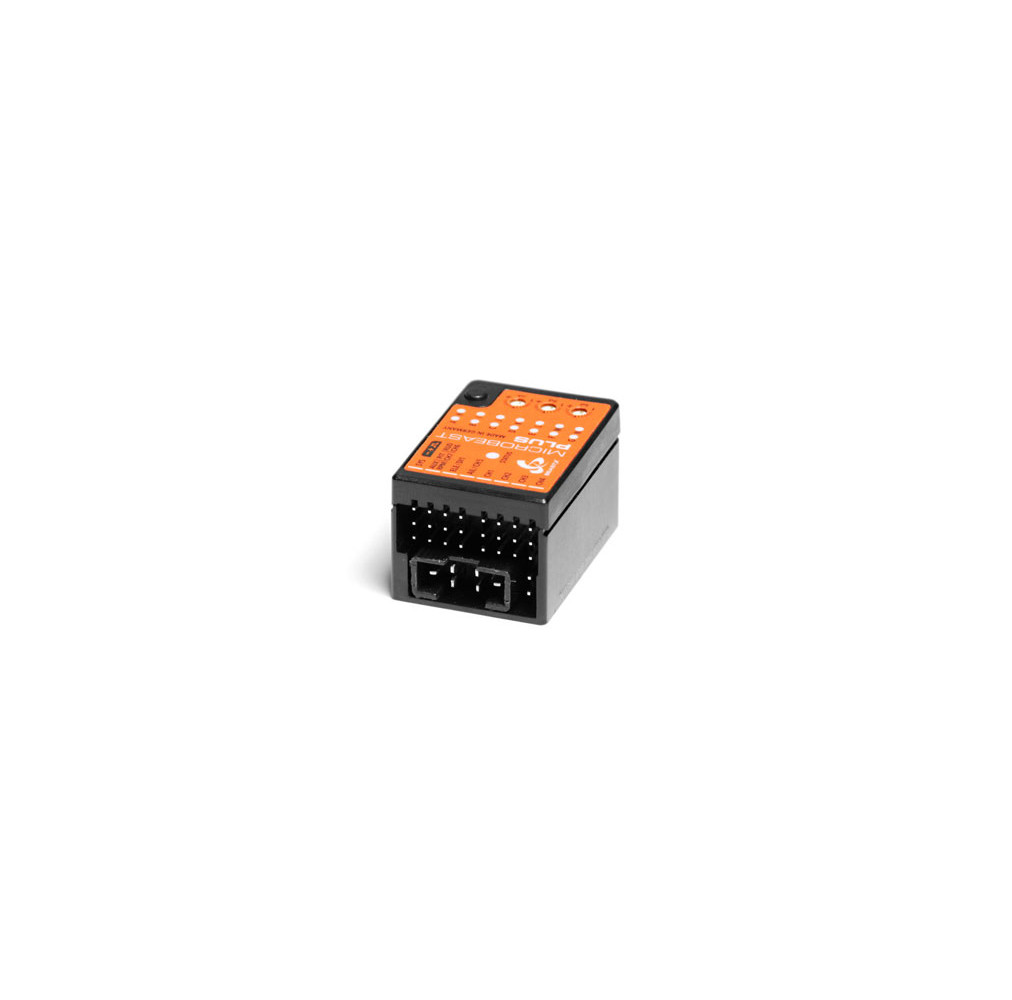

MICROBEAST Plus HD PRO EDITION
MICROBEAST PLUS is a 6-axis control unit for model helicopters without an auxiliary rotor plane (paddles and flybar). State-of-the-art MEMS sensors measure every rotational movement of the aircraft with unprecedented precision and transmit this data to the control system in real time.
The MICROBEAST PLUS HD features a robust aluminum housing and, with its switchable high-current connector, offers a suitable solution for safely powering even larger helicopter models (550-size and up, or any helicopter with standard-size servos).

Basic setup is quick and easy, requiring neither an expensive programming box nor a computer. This allows for simple and straightforward parameter changes, even at the flying field.
Further options are available with the optional USB2SYS interface and the StudioX software package (PC and Mac). Thanks to its update functionality, the MICROBEAST PLUS can always be kept up to date, allowing advanced pilots to customize the device to their specific needs.

The device comes with the ProEdition firmware: In addition to its basic functions as a flybarless system and tail gyro, it includes an internal speed control function for internal combustion and electric models, as well as a special attitude control system that can automatically hold the helicopter in a hover position. Various modes are available, such as rescue function, 3D trainer mode, and hover trainer.

Features:
A transmitter with at least 6 channels is required (5 control functions + motor throttle).


Characteristics

Control outputs
• 3 swashplate servos
- Maximum adjustable control frequency: 200Hz
- Swashplate mixing: mechanical, 90°, 120°, 135°, 140°; and freely configurable via StudioX, e.g., for virtual swashplate rotation
• 1 tail servo
- All common tail servos with neutral pulses of 1520µs, 960µs, or 760µs
- Maximum adjustable control frequency: 560Hz
• When operating with a SingleLine receiver, additionally:
- Throttle servo/motor controller, auxiliary channel for landing gear, lighting, etc.

Signal inputs
• Standard receivers with single channels
• SingleLine receivers: Spektrum DSM2/DSMX single satellite, JR RJ01 DMSS single satellite, Futaba S.Bus/S.Bus2, JR XBUS, Spektrum SRXL/SRXL2, SUMD, M-Link, BEASTX SRXL, Graupner HoTT SUMD, JETI UDI/ExBus, PPM serial, ALIGN/FlySky iBus
• Sensor board (e.g., for acquiring the speed signal of electric or combustion engines)

High-current connector
• Particularly reliable electronic switching system
• Enables virtually lossless power supply via thick connecting cables between battery/BEC and flybarless system


Technical data
Operating voltage: 3.5V - 8.5V DC (operation with 2-cell LiPo possible)
Processor: 32-bit ARM
Sensor: 6-axis MEMS (gyro + accelerometer)
Dimensions: 36x25x21mm
Weight (without cables): approx. 19g
High-current connector:
• particularly reliable electronic switching system
• enables virtually lossless power supply via thick connecting cables between battery/BEC and flybarless system


Scope of delivery
• MICROBEAST PLUS HD ProEdition
• Switch cable
• High-current connection cable
• Receiver connection cable set (compatible with SingleLine and standard receivers)
• 3M adhesive pad
• Adjustment tool
• Decal sheet
