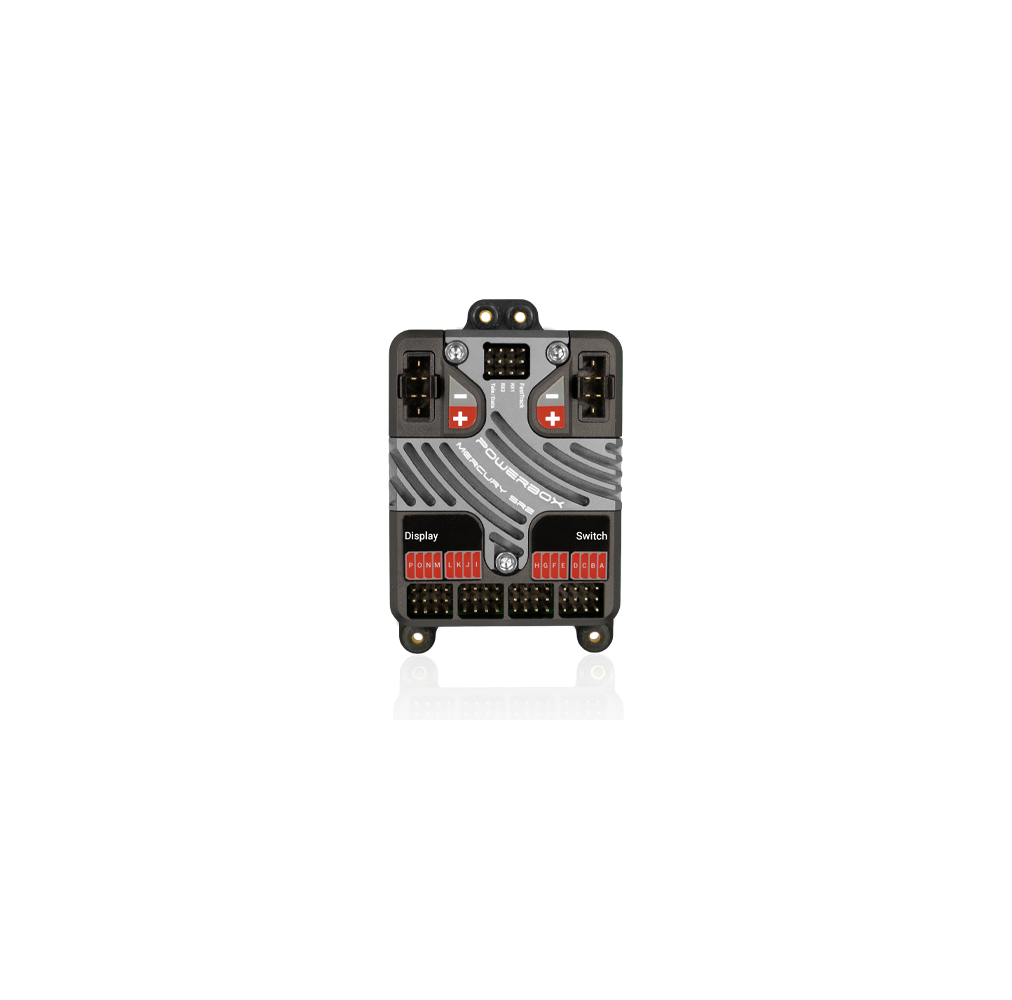

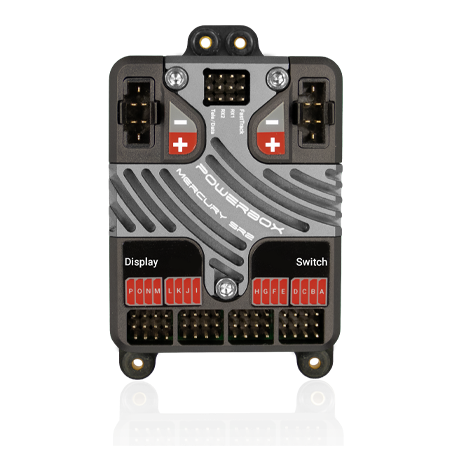

Centralina PowerBox Mercury SRS

Technical Data
Operating voltage 4.0V - 9.0V
Power supply 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH
Current drain Power-on state 100mA
Current drain Standby 30µA
Maximum load current 2 x 20A (<30s)
Drop-out voltage 0.3V
Output voltage 6.0V, 7.8V
Signal input serial
Supported RC systems PowerBox, Futaba, Jeti, Spektrum, M-Link and Hott
Receiver redundancy SRS
Channels 26
Servo sockets 16
Programmable servo outputs 16
Servo signal resolution 0,25µs
Signal frame rate 12ms, 14ms, 16ms, 18ms
Gyro sensor type external iGyro SAT
Number of sensor axes 9
Screen OLED 128x64 pixels
Integral door sequencer yes
Supported telemetry systems P²BUS, S.BUS2, EX-Tele, SRXL2, M-Link, Hott, X.BUS
Dimensions 89 x 54 x 19 mm
Weight 75g
Weight Sensor Switch 15g
Weight of LCD screen 34g
Temperature range -30°C to +105°C

Set contents
PowerBox Mercury SR2
OLED Display
SensorSwitch
2 patch-leads
4 rubber grommets and brass spacer sleeves
8 retaining screws
Operating instructions in German and English
