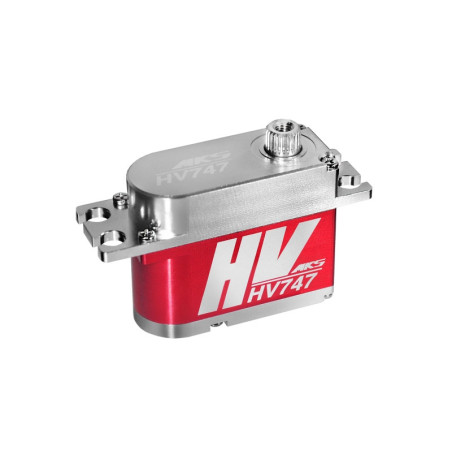

MKS Servo Digital Mini HV747 (0.13s/60°, 15.0kg.cm)
Super high torque/ high speed 39g HV digital mini servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for gliders and smaller aerobatic/scale model aeroplanes. Torque 11.8kg.cm, speed 0.17s/60° at 6.0V, torque 13.5kg.cm, speed 0.14s/60° at 7.4V, torque 15.0kg.cm, speed 0.13s/60° at 8.2V. Dimensions 35.5x15x28.5mm, weight 38.55g. Aluminium case for perfect heat dissipation. Programmable with DSP-1 programmer.

Servo dimensions Mini
Servo type Digital
Programmable Yes
Thrust at 6.0V [kg·cm] 11.8
Thrust at 7.4V [kg·cm] 13.8
Torque at 8.2 V [kg·cm] 15
Speed at 6.0V [s/60st.] 0.17
Speed at 7.4V [s/60st.] 0.14
Speed at 8.2 V [s/60st.] 0.13
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.001
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 6 - 8.4
Length [mm] 35.5
Width [mm] 15
Height [mm] 28.5
Weight [g] 38.55
Intended for Aeroplanes,Helicopters,Boats
