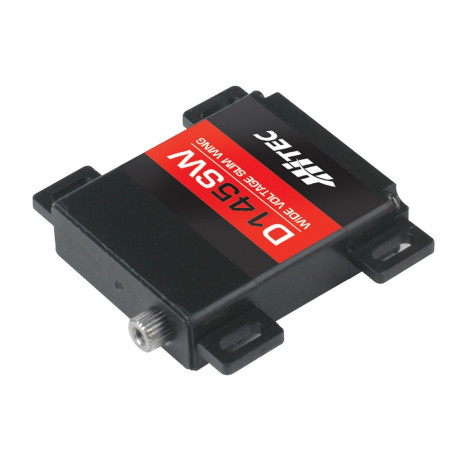

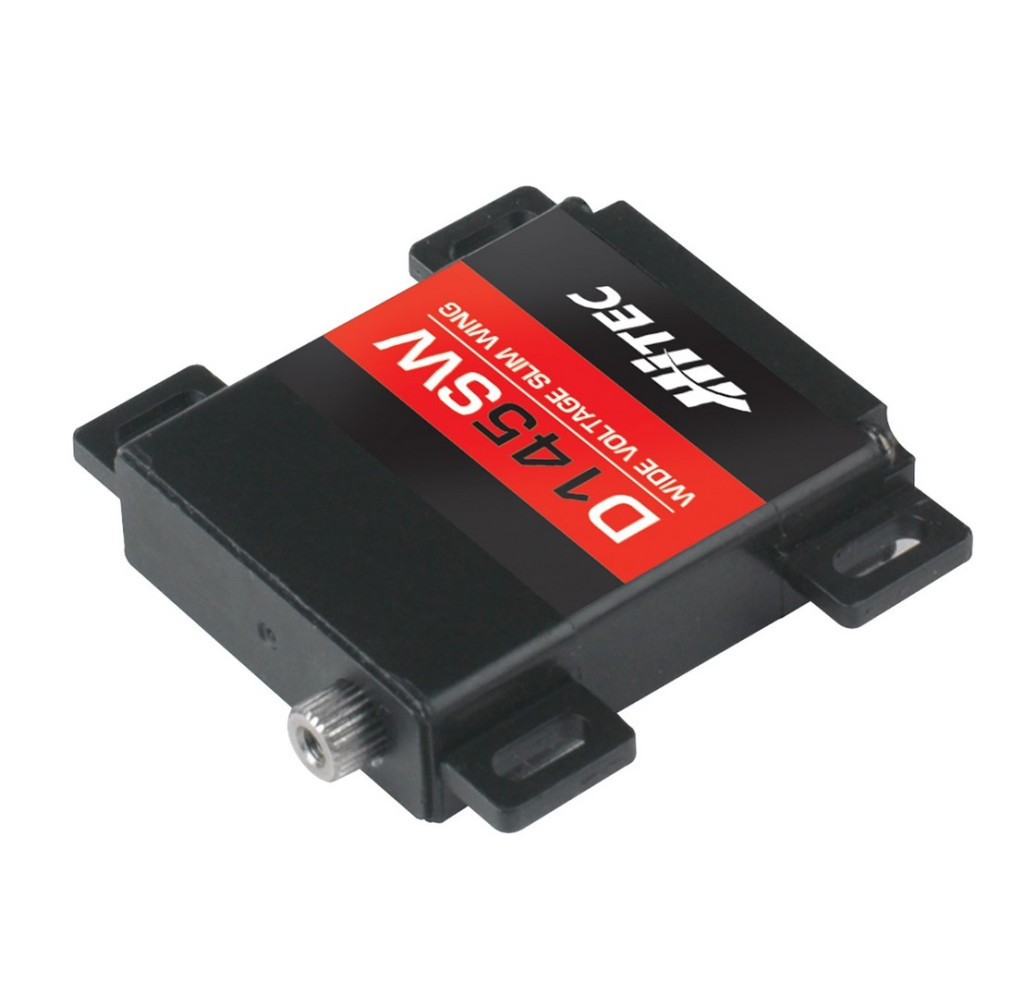

HITEC D145SW, 32-Bit, Wide Voltage, Steel Servo

Premium digital wing servo of the 10 mm class

This HITEC D-Series servo takes the wing servos in the 10mm class to a new level in terms of control precision, freedom from play and durability.
The powerful 6.0 kg (at 7.4V) D145 SW wing servo from the HITEC D series offers the highest servo travel resolution currently available on the market. The finest response behavior and programming options are realized thanks to 32-bit MCU and 12-bit ADC technology.
Wide-Voltage servos can be operated directly with 2-cell lithium-based batteries (LiFe/LiIo/LiPo) with a nominal voltage of 4.8 - 8.4 V.
The D145 SW wing servo is fully programmable and offers unparalleled durability thanks to its strong steel gear and two ball bearings on the output shaft. This is particularly important when low backlash and high positioning precision are required.
The long service life is due to the uniquely designed steel gear and the robust servo housing.

The D-145SW wing servo is ideal for thin wing profiles in glider models and an application as a motor-gear combination for industrial applications.

Features:
• Programmable
• Digital MOS FET amplifier
• High positioning speed
• High actuating force
• High holding power
• Steel gears
• 2 ball bearings
• 25 micro serration for servo horn

Programmable features:
• Adjust end point (0°-180°), neutral
• Setting the direction of rotation (clockwise/counterclockwise)
• Setting the backlash
• Set the speed (slower)
• Set Soft Start
• Setting the fail-safe function
• Setting the overload protection
• Save or load data
• Factory reset
