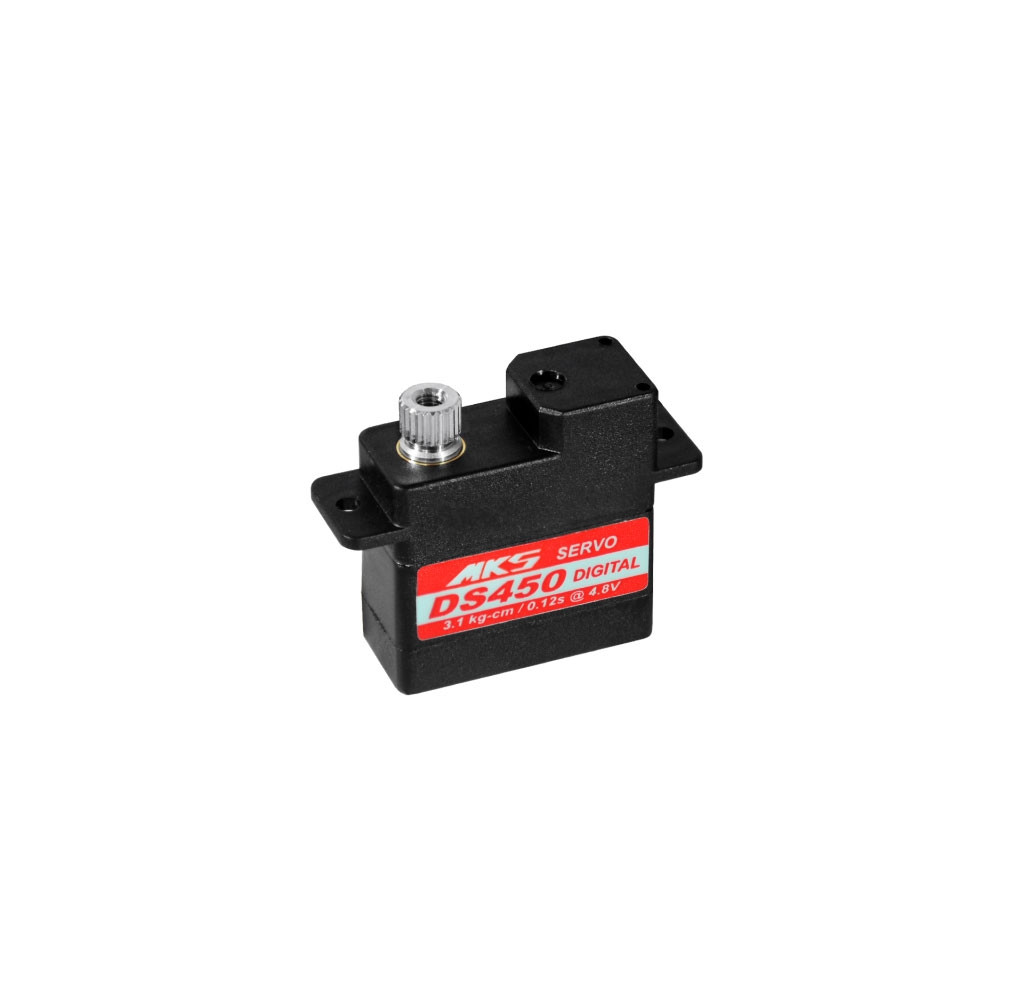

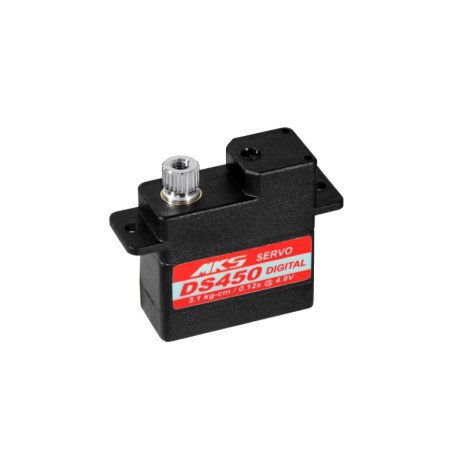

MKS Servo Micro Digital DS450 (0.12s/60°, 3.1kg.cm)
High torque/high speed 9.5g digital micro servo w. metal gears; input voltage 4.8-5.0V, 1xoil-retaining bearing. Ideal for cyclic of mini helicopters. Torque 3.10kg.cm, speed 0,120s/60° at 4.8V, torque 3.22kg.cm, speed 0,115s/60° at 5.0V,. Dimensions 22.5x10x23.8mm, weight 9.5g. Programmable with DSP-1 programmer.

Servo dimensions Micro
Servo type Digital
Programmable Yes
Thrust at 4.8V [kg·cm] 3.1
Torque at 5.0 V [kg·cm] 3.22
Speed at 4.8V [s/60st.] 0.12
Speed at 5.0 V [s/60st.] 0.115
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.002
Servo gears Metal
Ball bearings None
High-voltage No
Power supply [V] 4.8 - 5
Length [mm] 22.5
Width [mm] 10
Height [mm] 23.8
Weight [g] 9.5
Intended for Aeroplanes,Helicopters
