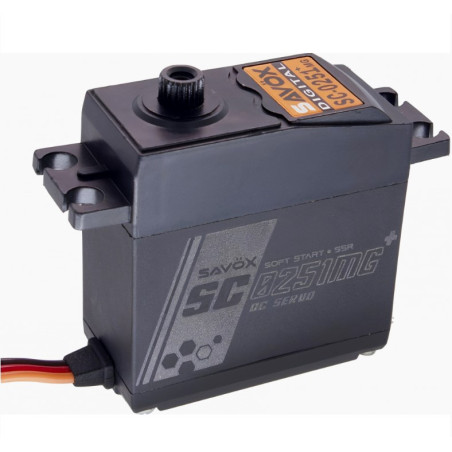

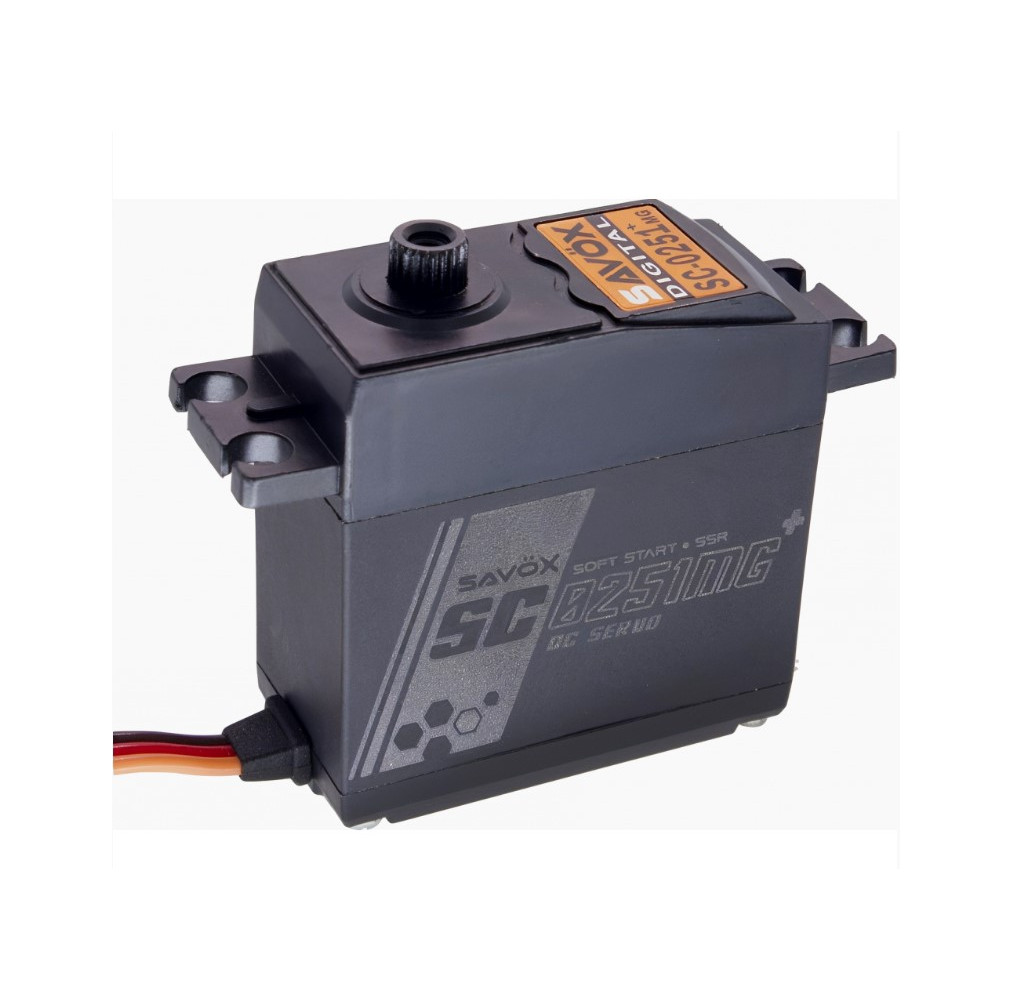

SAVÖX SC-0251MGSERVO
New + version with soft start, Sanwa SSR mode
Dimensions (L/W/H): 40.7 x 20 x 42.4 mm Weight: 61 grams
0.20/0.18 sec/60 degrees and 13/16 kg*cm at 4.8/6 volts
Powerful digital servo with soft start and metal gear
Possible application examples: All-round servo for medium-sized aircraft models // RC cars


DESCRIPTION
The SC-0251MG+ is a very reliable and powerful standard size servo which is very suitable for use in RC cars and airplanes.

The new + version of the well-known SC-0251MG servo differs slightly from its predecessor visually and technically. A soft start, which slowly moves the servo to the starting position when switched on, and the Sanwa SSR mode characterize the + version.

CHARACTERISTICS
Operating time S2/60° (sec): 0.18
Operating time S1/60° (sec): 0.20
Actuating force S1 (kg*cm): 13
Actuating force S2 (kg*cm): 16
Width (mm): 20
Voltage range: 4.8V-6V
Length (mm): 40.7
Height (mm): 42.4
Weight (g): 61
Control frequency: Up to 333Hz, 1520us center pulse
High-voltage capable up to 8.4V: No
Voltage 1 (Volt): 4.8
Engine type: brush motor
Recommended use: Helicopter, plane, car
Housing type: plastic
Ball bearings (number): 2
Voltage 2 (Volts): 6.0
Gear type: metal
Output teeth (number): 25
Classification: default
