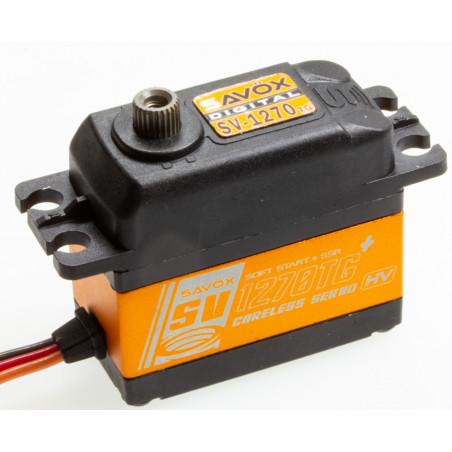

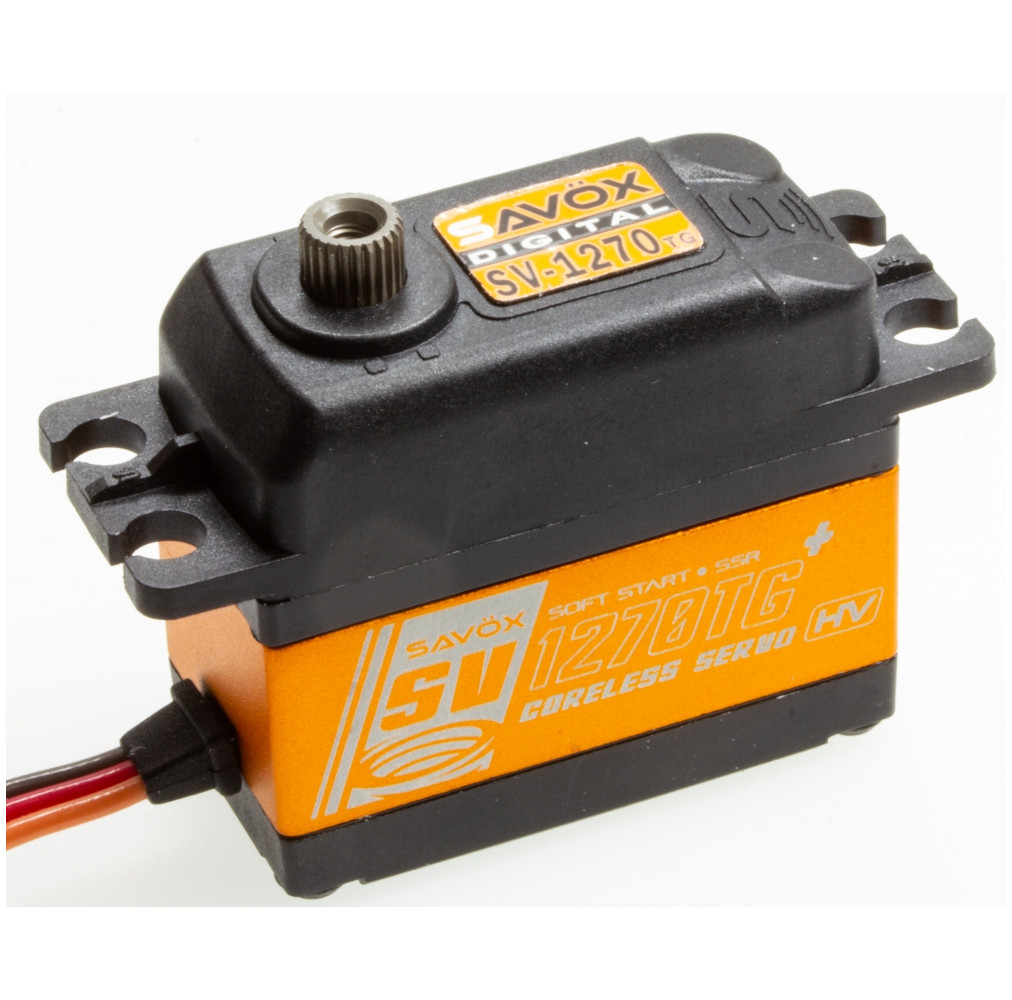

SAVÖX SV-1270TG SERVO
New + version with soft start, Sanwa SSR mode
Powerful digital servo, ideal for fixed-wing models, robust, low-backlash titanium gear
High-voltage digital servo 4.8-8.4V, operated on 2s LiPo
Dimensions (L/W/H): 40.3 x 20.2 x 37.2 mm Weight: 64 grams
0.14/0.10 sec/60 degrees and 30/45 kg*cm at 6.0/8.4 volts

DESCRIPTION
The SV-1270TG+ is a powerful, standard size servo which is very suitable for use in wing models. Of course it can also be used in RC cars. Using them as swashplate servos for scale helicopters up to the 700 class is another option.

The new + version of the well-known SV-1270TG+ servo differs minimally from its predecessor both visually and technically. A soft start, which slowly moves the servo to the starting position when switched on, and the Sanwa SSR mode characterize the + version.

The technical data of the servo leaves nothing to be desired: 0.14/0.10 sec/60 degrees and 30/45 kg*cm at 6.0/8.4 volts,

control frequency up to 333Hz, center pulse 1520us

Like all HV servos from Savöx, the SV-1270TG+ can of course be operated with up to 8.4V!

Scope of delivery: Servo including servo lever and mounting screws

CHARACTERISTICS
Operating time S2/60° (sec): 0.10
Operating time S1/60° (sec): 0.14
Width (mm): 20.2
Actuating force S1 (kg*cm): 30
Height (mm): 37.2
Voltage range: 4.8V-8.4V
Length (mm): 40.3
Actuating force S2 (kg*cm): 45
Weight (g): 64
Control frequency: Control frequency up to 333Hz, center pulse 1520us
High-voltage capable up to 8.4V: Yes
Recommended use: Helicopter, plane, car, boat
Ball bearings (number): 2
Voltage 1 (Volt): 6.0
Engine type: Bell armature motor
Housing type: Part metal
Output teeth (number): 25
Voltage 2 (Volts): 8.4
Gear type: titanium
Classification: default
