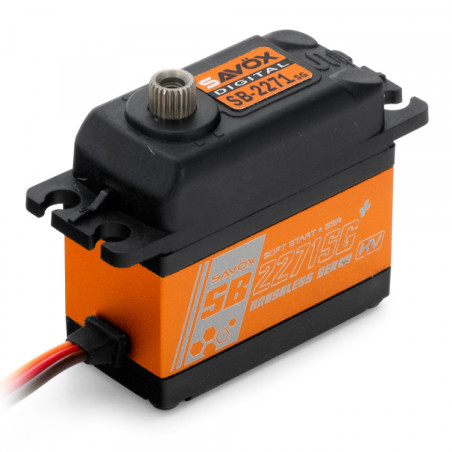

Savox SB-2271SG Plus Servo 20Kg 0,065s HV Alu Brushless Steel Gear
Features:
Soft Start
SSR compatible
Unique steel gear train
Capable of HV operation
Brushless motor for smooth operation and efficiency
Ideal for 1/10 buggies and trucks, and some heli applications

Specifications:
Torque @ 6V: 15kg/cm
Torque @ 7.4V: 20kg/cm
Torque @ 8.4V: 25kg/cm
Speed @ 6V: 0.085 sec/60 deg
Speed @ 7.4V: 0.065 sec/60 deg
Speed @ 8.4V: 0.055 sec/60 deg
Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
Weight: 69g

Technical Details:
Operating Temperature: -10° - 50°C
Running Current (no load): 180mA @6.0V, 220mA @7.4V
Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
Idle Current: 5mA @6.0V, 5mA @7.4V
Wire Length: 300 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 ? 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 ? 2200 µ second
Maximum Travel: Appx 130° (900 ? 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Brushless
