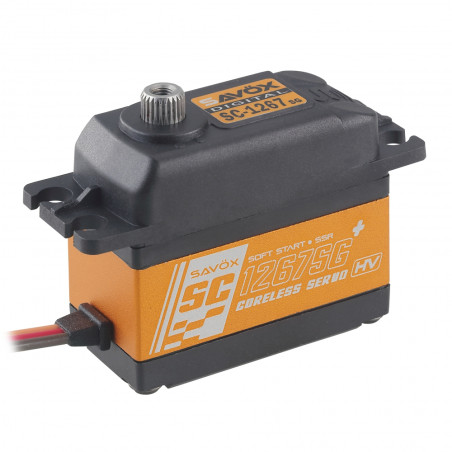

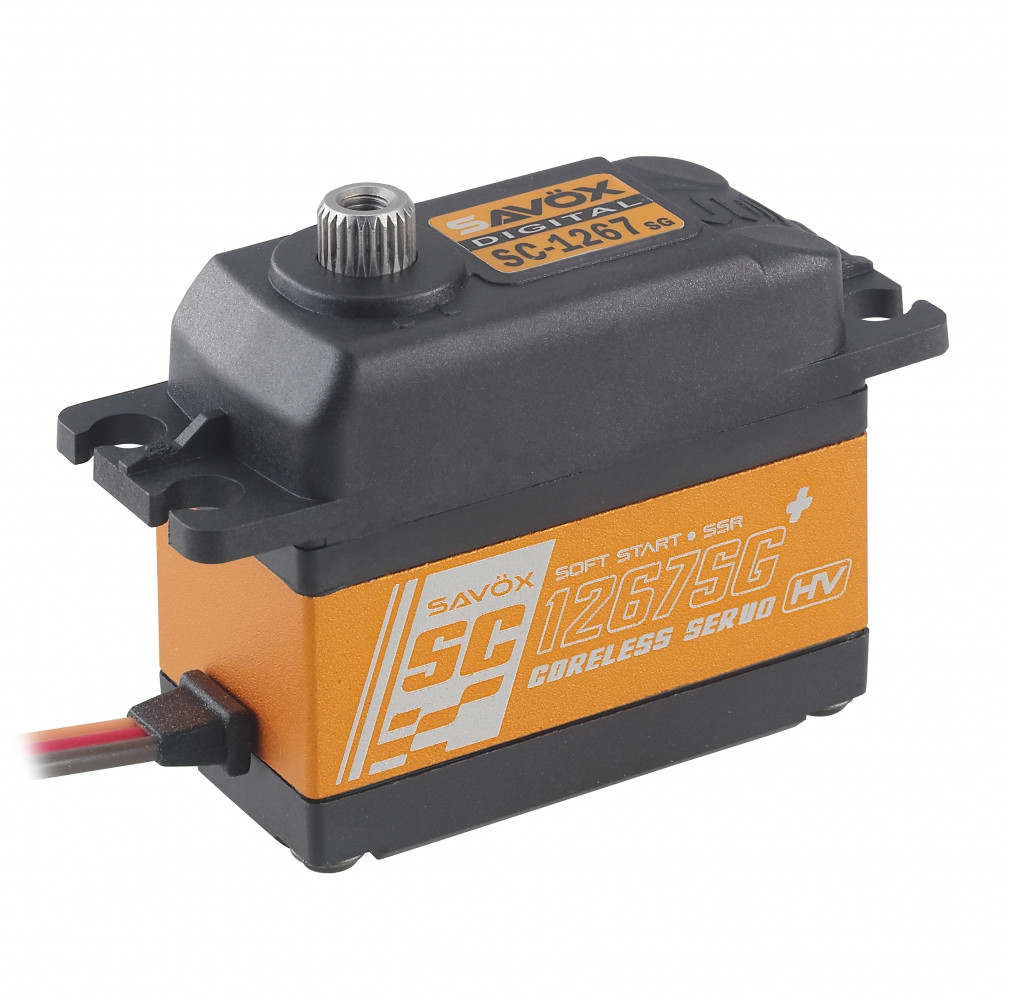

SAVÖX SC-1267SG SERVO
New + version with soft start, Sanwa SSR mode
Powerful and fast digital servo, robust, low-backlash steel gear ideal as a steering/throttle servo in a buggy/truggy
High-voltage digital servo 4.8-8.4V, operated on 2s LiPo
Dimensions (L/W/H): 40.3 x 20.2 x 37.2 mm Weight 62 grams
0.095/0.0.85 sec/60 degrees and 20/25 kg*cm at 7.4/8.4 volts

DESCRIPTION
The SC-1267SG+ is a powerful, standard size servo which is ideal as a steering/throttle servo in a buggy/truggy. Of course, it can also be used in aircraft if an impact-resistant, robust servo is required, such as for the tow clutch or the landing gear. Using them as swashplate servos for scale helicopters up to the 700 class is another option.

The new + version of the well-known SC-1267SG+ servo differs slightly from its predecessor both visually and technically. A soft start, which slowly moves the servo to the starting position when switched on, and the Sanwa SSR mode characterize the + version.

The technical data of the servo leaves nothing to be desired: 0.095/0.0.85 sec/60 degrees and 20/25 kg*cm at 7.4/8.4 volts,
control frequency up to 333Hz, center pulse 1520us

Like all HV servos from Savöx, the SC-1267SG+ can of course be operated with up to 8.4V!

Scope of delivery: Servo including servo lever and mounting screws

CHARACTERISTICS
Operating time S2/60° (sec): 0.085
Operating time S1/60° (sec): 0.095
Width (mm): 20
Actuating force S1 (kg*cm): 20
Actuating force S2 (kg*cm): 25
Height (mm): 37.2
Voltage range: 4.8V-8.4V
Length (mm): 40.3
Weight (g): 62
Control frequency: Control frequency up to 333Hz, center pulse 1520us
High-voltage capable up to 8.4V: Yes
Recommended use: Helicopter, plane, car, boat
Ball bearings (number): 2
Engine type: Bell armature motor
Housing type: Part metal
Output teeth (number): 25
Voltage 1 (Volt): 7.4
Gear type: steel
Voltage 2 (Volts): 8.4
Classification: default
