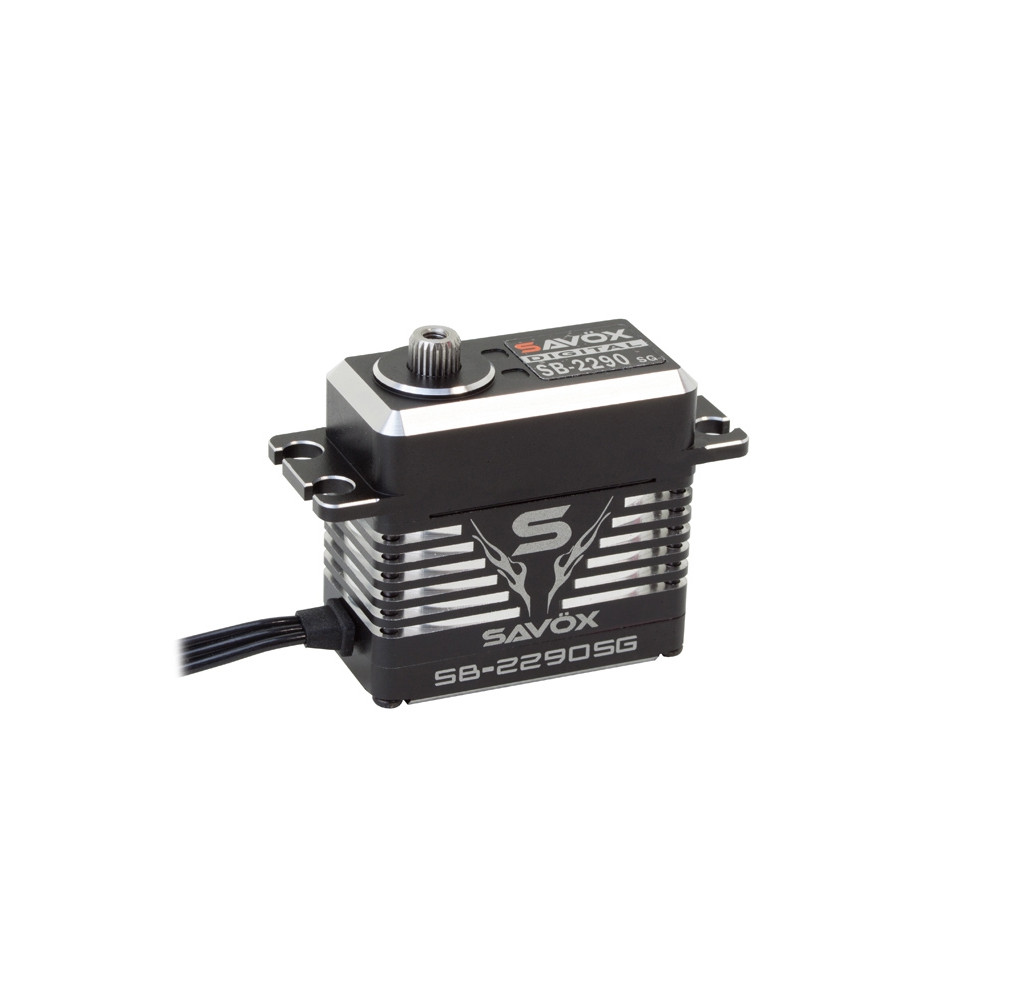

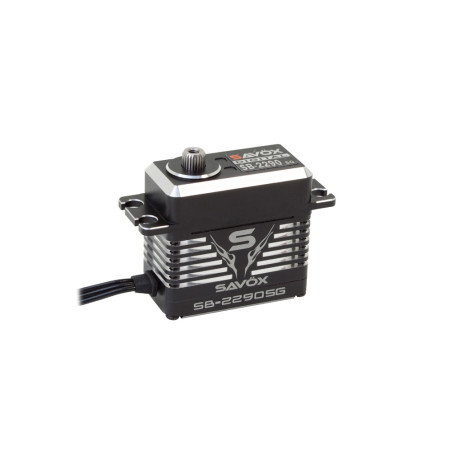

SAVÖX SB-2290SG SERVO
Up to 35% more power, 70kg*cm at 8.4V!
High-quality brushless motor integrated in the housing
3 compartment ball bearings, patented design
High-voltage digital servo up to 8.4V
High-quality full metal housing

DESCRIPTION
WHAT DOES HV MEAN AT SAVÖX?

HV stands for high voltage. Savöx servos marked in this way can be operated with a voltage of up to 8.4V . The use of a 2s LiPo battery is possible without any problems. All HV servos can of course also be operated with a lower voltage from 4.8V, but less power is available here.



With the new SB-2290SG servo from SAVOX, the Taiwanese manufacturer Savöx has achieved a revolution in servo technology. The patented design of this monster ensures up to 35% more power, with proven standard installation dimensions.

This was achieved by integrating the brushless motor directly into the all-aluminum housing. In addition to a thermal advantage, this opens up the possibility of installing a larger motor. In order to optimally transfer the enormous actuating forces, a third ball bearing was integrated into the gearbox. A fully rubberized servo cable is also standard in this servo series. It protects the servo cable from damage, but is still flexible enough to be laid cleanly. The SB-2290SG is suitable for use in helicopters, RC cars and fixed-wing models. In the near future, the patented SB-229X series will be expanded to include additional servo types.

The torque of this monster leaves nothing to be desired, here are the technical details for 6, 7.4 and 8.4V

6V 45kg*cm with a travel time of 0.16s/60°
7.4V 55kg*cm with a travel time of 0 .13s/60°
8.4V 70kg*cm with a positioning time of 0.11s/60°

This was achieved by integrating the brushless motor directly into the all-aluminum housing. In addition to a thermal advantage, this opens up the possibility of installing a larger motor. In order to optimally transfer the enormous actuating forces, a third ball bearing was integrated into the gearbox. A fully rubberized servo cable is also standard in this servo series. It protects the servo cable from damage, but is still flexible enough to be laid cleanly. The SB-2290SG is suitable for use in helicopters, RC cars and fixed-wing models.

Control frequency up to 333Hz, center pulse 1520us

Like all HV servos from Savöx, the SB-2290SG can of course be operated with up to 8.4V!

Scope of delivery: Servo including servo lever and fastening screws

Possible application examples: For large aircraft, RC cars, scale helicopters / large models

CHARACTERISTICS
Operating time S2/60° (sec): 0.11
Length (mm): 20.2
Height (mm): 38.7
Width (mm): 40.3
Actuating force S2 (kg*cm): 70
Weight (g): 81
High-voltage capable up to 8.4V: Yes
Packaging: default
Recommended use: Helicopter, plane, car
Output teeth (number): 25
Ball bearings (number): 3
Engine type: Brushless motor
Gear type: steel
Housing type: Full metal
Voltage 2 (Volts): 8.4
Classification: default
