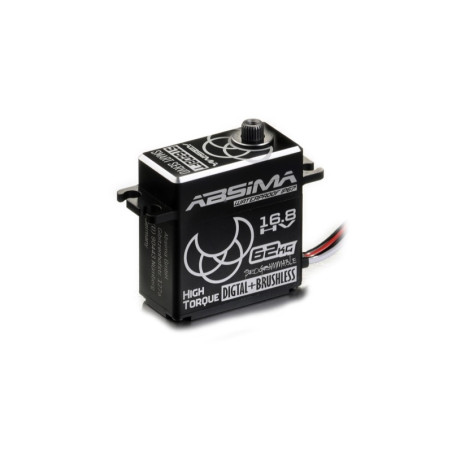

Absima Servo Digital Alu HV 3S/4S ST62DBFT Crawler-Spec. Waterproof
ervos are part of the "RC system" and thus the basis of a remote-controlled model.

Connected to the steering linkage, they convert stick or rotary movements on the transmitter into steering movements on the vehicle. In combustion vehicles, they also act as throttle servos, operating both the throttle valve of the carburetor and the brake. A servo that is too weakly dimensioned has a longer actuating time and a shorter service life when loaded. Therefore never save on the servo! A good servo does not have to cost a lot, but it makes the model more reliable and lasts for years.

This version has an enormous actuating power, which is up to 34 kg by direct connection of a 3S or 4S LiPo battery and all this at a speed of 0.080 seconds! In addition, the servo is dust and waterproof (IP67) and can therefore be used in all weather conditions.

Our "Crawler Spec. Servos" are mainly used in 1:8 and 1:10 crawlers or other heavy vehicles which need a lot of power on the steering axle.

TECHNICAL DATA HIGHLIGHTS:

Servo Category: High-Torque & High Speed2030110_01400.jpg
Operating Voltage: 7.4 - 16.8V HV
Torque / Speed @ 12V: 48.0kg / 0.120sec/60°
Torque / Speed @ 14.4V: 54.0kg / 0.100sec/60°
Torque / Speed @ 16V: 60.0kg / 0.095sec/60°
Torque / Speed @ 16.8V: 62.0kg / 0.090sec/60°
Technology: Digital
Motor Type: Brushless
Gear Material: Reinforced steel
Housing Material: AL6061 T6
Waterproof Rating: IP67 water-proof
Bearing: Metal ball bearings (2)
Servo Arms: 1* Aluminum, 2* Plastic
Size: 40*20*41.5 mm (Standard)
Weight: 88,2 g
Programmable: Yes with USB Interface Adapter 2030110 (sold separately)
ATTENTION: Separate power supply (2S,3S or 4S LiPo with BEC / JST connector) necessary!
