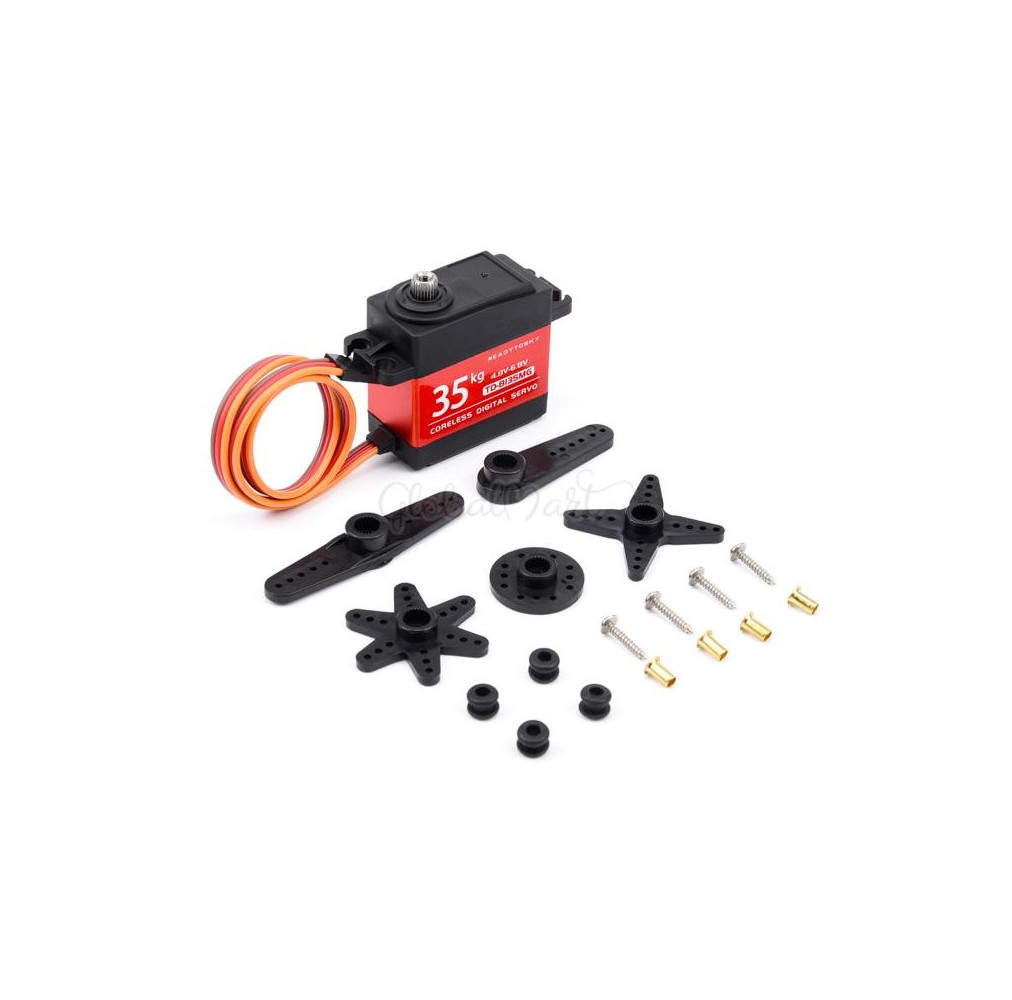

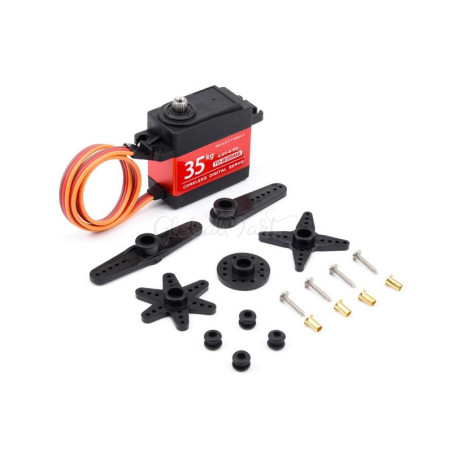

SERVO TD-8135MG DIGITAL Servo 35kg 180º with metal sprockets 60g WATERPROOF RC cars
CHARACTERISTICS
Dimension: 40.6mm x 20.4mm x 39mm
Net weight: 60g
Waterproof.

Mechanical Specifications:
Gear Materials: Metal Sprockets
Limit angle: 270
Connector wire length: 320 ± 5mm.
Arm Connector: 25T/25.9mm
Size: 40 x 20.5 x 40.5mm.
Electric specifications:
Operating voltage range: 4.8 to 6.8V.
No-load speed: 0.22 sec/60° (4.8V) 0.18 sec/60° (7.2V).
Operating current: 160mA (4.8V); 220mA (7.2V).
Peak Torque: 32.7 kg-cm (4.8V); 35.2kg-cm (6.8V).
Starting current: 2600mA ± 10% (4.8V); 3400mA ± 10% (7.2V).
Control Specifications:
Command signal: pulse width modification.
Neutral position: 1500 µsec.
Dead band width: 5 µsec.
Operating degree: 180° ±3° (when 500-2500µsec)
Pulse width range: 500?2500 µsec
Mechanical angle: 270°.
