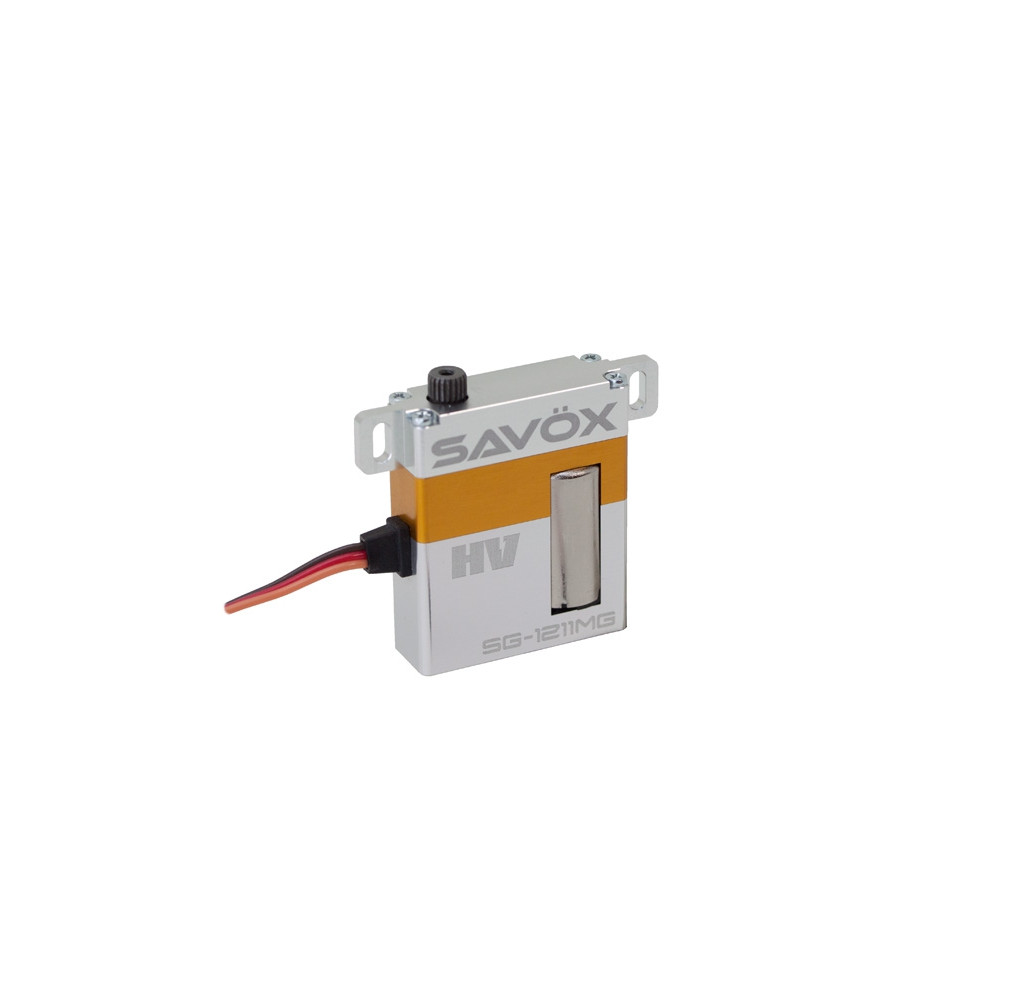

SAVÖX SG-1211MG SERVO
Wing servo 12mm
Full aluminum housing
optimal heat dissipation
High voltage capable 7.4V
Extremely strong with 11kg of force


DESCRIPTION
WHAT DOES HV MEAN AT SAVÖX?

HV stands for high voltage. Savöx servos marked in this way can be operated with a voltage of up to 8.4V . The use of a 2s LiPo battery is possible without any problems. All HV servos can of course also be operated with a lower voltage from 4.8V, but less power is available here.



With a total depth of only 12mm, the new SAVÖX SG-1211MG is ideal for installation in narrow wings of gliders, jets or speed models. The newly developed 12 mm coreless motor is extremely powerful and ensures high stability. The high-quality 10mm full aluminum housing with 3 mounting points can be mounted precisely and ensures good heat dissipation. To ensure the highest possible control precision for your model, a backlash-free, double ball bearing gear was installed. Despite its force of 11.0 kg at 7.4V, this little powerhouse weighs 30 grams and is not a heavyweight.
To simplify assembly, each servo comes with a sturdy mounting frame. A servo lever specially adapted to the needs of the fixed-wing model completes the package.

CHARACTERISTICS
Operating time S1/60° (sec): 0.15
Actuating force S1 (kg*cm): 11
Width (mm): 12
Weight (g): 30
Length (mm): 30
Height (mm): 36
Classification: wing servo
High-voltage capable up to 8.4V: Yes
Packaging: default
Ball bearings (number): 2
Output teeth (number): 21
Recommended use: Airplane
Engine type: Bell armature motor
Gear type: metal
Voltage 1 (Volt): 7.4
Housing type: Full metal
