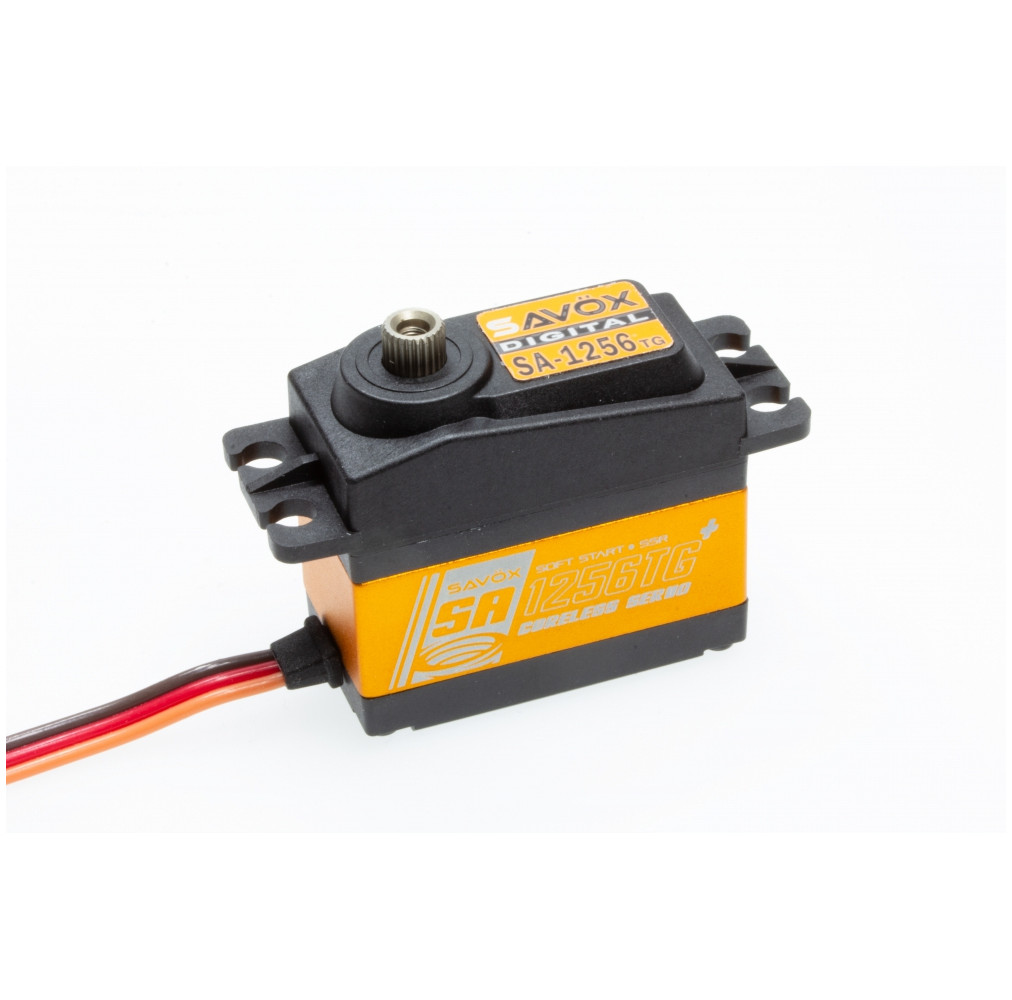

SAVÖX SA-1256TG SERVO
New + version with soft start, Sanwa SSR mode
Powerful digital servo, ideal for fixed-wing models, robust, low-backlash titanium gear
0.18/0.15 sec/60 degrees and 16/20 kg*cm at 4.8/6.0 volts
Dimensions (L/W/H): 40.3 x 20.2 x 37.2 mm
Weight: 64 grams

DESCRIPTION
The SA-1256TG+ is a powerful, standard size servo that is very suitable for use in wing models. Of course it can also be used in RC cars. Using them as swashplate servos for scale helicopters up to the 700 class is another option.

The new + version of the well-known SA-1256TG servo differs slightly from its predecessor both visually and technically. A soft start, which slowly moves the servo to the starting position when switched on, and the Sanwa SSR mode characterize the + version.

The SA version of the 1256TG servo is specifically designed for use in fixed-wing models. The A in SA stands for Aircraft. The gearbox and software are optimized for this application; the low-backlash titanium gearbox is extremely robust and reliable. The software has also been adapted; the holding force around the zero position is optimized here. Suitable reinforced servo levers included in delivery are specifically designed for fixed-wing models.

Included in delivery: Servo lever GRP reinforced plastic 1 x single arm 12 - 18 mm / 1 x single arm 15 - 28 mm / 1 x single arm 23 - 38 mm / 1 x double arm 23 - 38 mm


CHARACTERISTICS
Operating time S2/60° (sec): 0.15
Operating time S1/60° (sec): 0.18
Actuating force S1 (kg*cm): 16
Actuating force S2 (kg*cm): 20
Width (mm): 20.2
Height (mm): 37.2
Voltage range: 4.8V-6V
Length (mm): 40.3
Weight (g): 64
Control frequency: Up to 333Hz, 1520us center pulse
High-voltage capable up to 8.4V: No
Voltage 1 (Volt): 4.8
Recommended use: Helicopter, plane, car, boat
Ball bearings (number): 2
Voltage 2 (Volts): 6.0
Engine type: Bell armature motor
Housing type: Part metal
Output teeth (number): 25
Gear type: titanium
Classification: default
