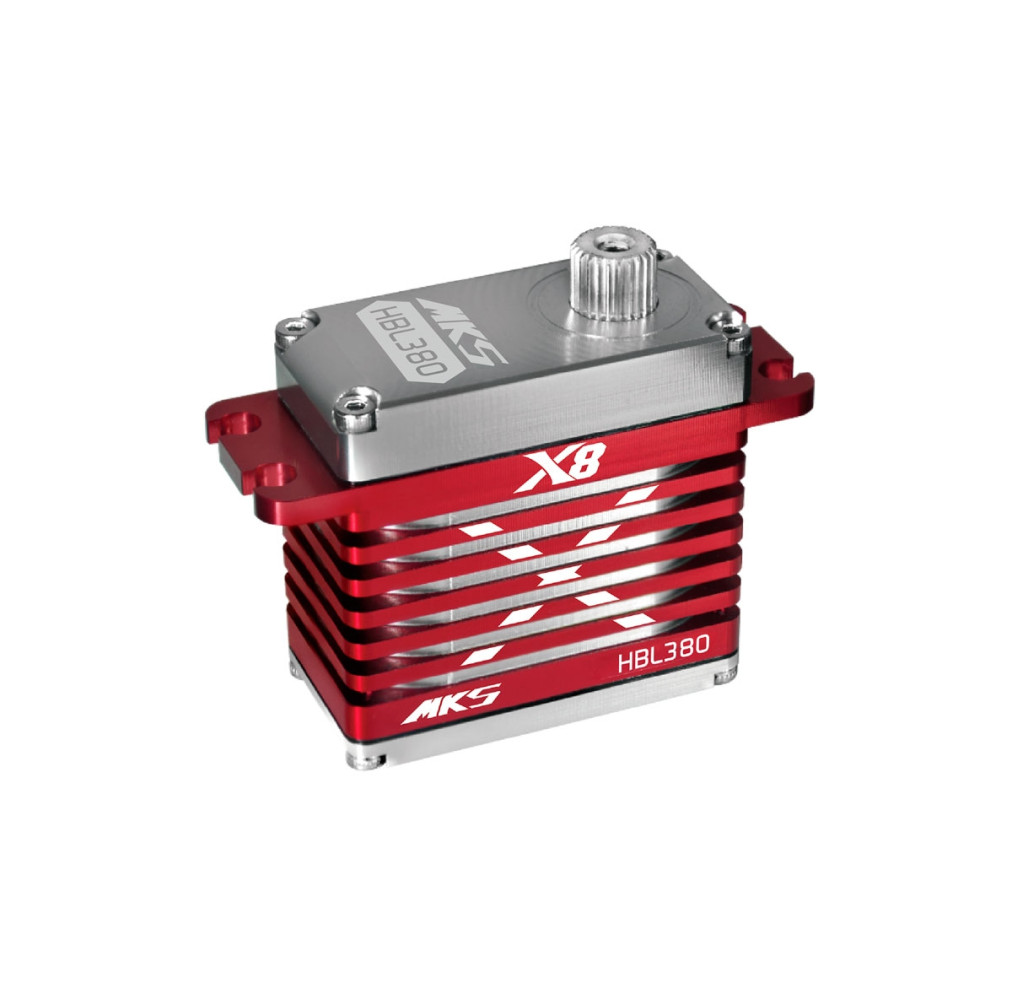

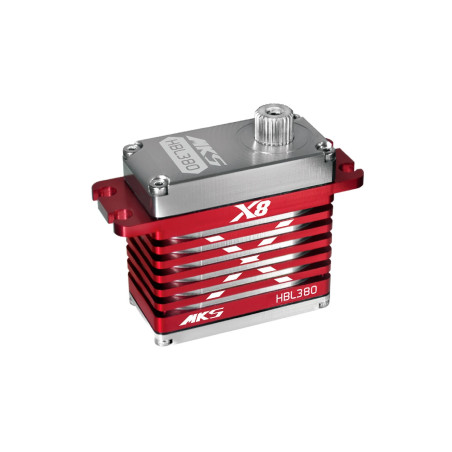

MKS Servo Digital Standard HBL380 (0.082s/60°, 41.0kg.cm)
Very high torque/very high speed 73g HV digital standard brushless servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for large model aeroplanes, 700-800 class helicopter cyclic, 1/8 and 1/5 RC cars. Torque 31.0kg.cm, speed 0.114s/60° at 6.0V, torque 39.0kg.cm, speed 0.092s/60° at 7.4V, torque 41.0kg.cm, speed 0.082s/60° at 8.2V. Aluminium case w. CNC milled heatsink for perfect heat dissipation. Dimensions 40x20x38.5mm, weight 73g. Programmable with DSP-1 programmer.

Servo dimensions Standard
Servo type Digital
Programmable Yes
Thrust at 6.0V [kg·cm] 31
Thrust at 7.4V [kg·cm] 39
Torque at 8.2 V [kg·cm] 41
Speed at 6.0V [s/60st.] 0.114
Speed at 7.4V [s/60st.] 0.092
Speed at 8.2 V [s/60st.] 0.082
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.0008
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 6 - 8.4
Length [mm] 40
Width [mm] 20
Height [mm] 38.5
Weight [g] 73
Intended for Aeroplanes,Helicopters,On-road cars,Off-road cars
