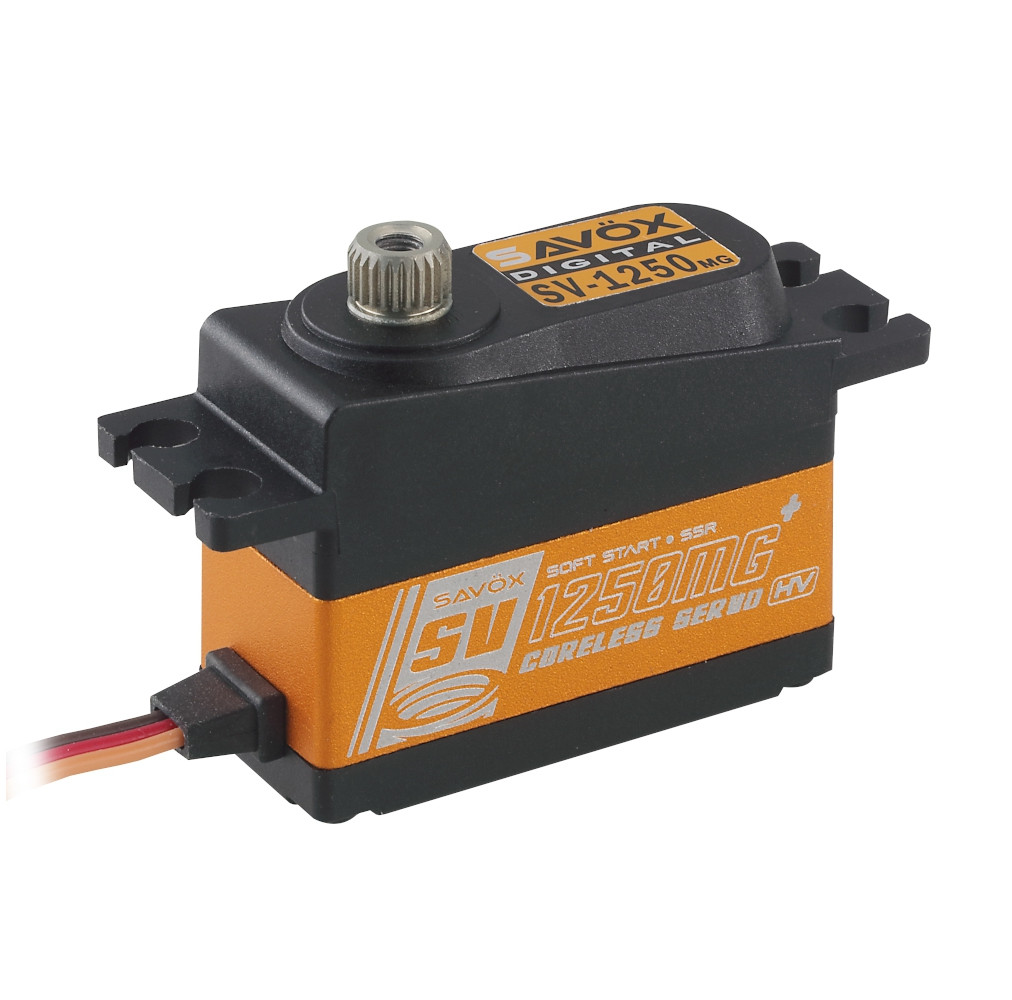

SAVÖX SV-1250MG SERVO
New + version with soft start, Sanwa SSR mode
Dimensions (L/W/H): 35 x 15.0 x 29.2 mm, weight 29.6g
0.095/0.085 sec/60 degrees and 8/10 kg*cm at 7.4/8.4 volts
High-voltage midi servo 4.8-8.4V, operated on 2s LiPo
Possible application examples: TS servo for helicopters up to the 550 class, aircraft models with little overall depth

DESCRIPTION
The SV-1250MG+ is a powerful midi servo which is very suitable for use in wing models. Of course it can also be used in RC cars. Application as swashplate servos for helicopters up to the 550 class is another option.

The new + version of the well-known SV-1250MG+ servo differs slightly from its predecessor both visually and technically. A soft start, which slowly moves the servo to the starting position when switched on, and the Sanwa SSR mode characterize the + version.

The technical data of the servo leaves nothing to be desired: 0.095/0.085 sec/60 degrees and 8/10 kg*cm at 7.4/8.4 volts,

control frequency up to 333Hz, center pulse 1520us

Like all HV servos from Savöx, the SV -1250MG+ can of course be operated with up to 8.4V!

Scope of delivery: Servo including servo lever and mounting screws


CHARACTERISTICS
Operating time S2/60° (sec): 0.085
Operating time S1/60° (sec): 0.095
Actuating force S2 (kg*cm): 10
Width (mm): 15
Height (mm): 29.2
Weight (g): 29.6
Length (mm): 35
Voltage range: 4.8V-8.4V
Actuating force S1 (kg*cm): 8th
Control frequency: Up to 333Hz, 1520us center pulse
High-voltage capable up to 8.4V: Yes
Recommended use: Helicopter, plane, car, boat
Ball bearings (number): 2
Engine type: Bell armature motor
Gear type: metal
Housing type: Part metal
Output teeth (number): 25
Voltage 1 (Volt): 7.4
Voltage 2 (Volts): 8.4
Classification: Midi
