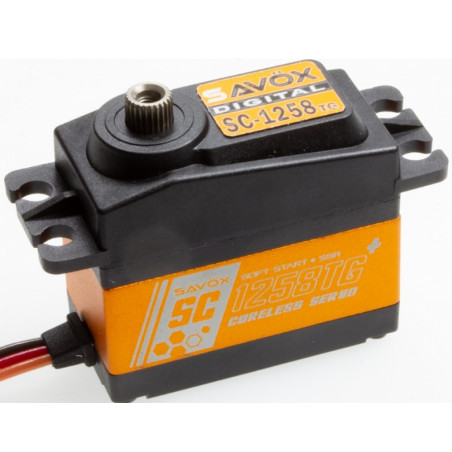

SAVÖX SC-1258TG SERVO
New + version with soft start, Sanwa SSR mode
Fast 12kg*cm digital servo, ideal for RC cars, robust low-backlash titanium gear
0.10/0.08 sec/60 degrees and 9.6/12 kg*cm at 4.8/6.0 volts
Dimensions (L/W/H): 40.3 x 20.2 x 37.2 mm
Weight: 64 grams

DESCRIPTION
The SC-1258TG+ is a fast and very reliable standard size servo which is ideal for use in RC cars and helicopters.

The new + version of the well-known SC-1258TG servo differs slightly from its predecessor both visually and technically. A soft start, which slowly moves the servo to the starting position when switched on, and the Sanwa SSR mode characterize the + version.

The SC version of the 1258TG servo is specifically designed for use in RC cars. The C in SC stands for Car. The gearbox and software are optimized for this application; the low-backlash titanium gearbox is extremely robust and reliable.

CHARACTERISTICS
Operating time S2/60° (sec): 0.08
Operating time S1/60° (sec): 0.10
Actuating force S2 (kg*cm): 12
Width (mm): 20.2
Height (mm): 37.2
Voltage range: 4.8V-6V
Length (mm): 40.3
Weight (g): 64
Actuating force S1 (kg*cm): 9.6
Control frequency: Up to 333Hz, 1520us center pulse
High-voltage capable up to 8.4V: No
Voltage 1 (Volt): 4.8
Recommended use: Helicopter, plane, car, boat
Ball bearings (number): 2
Voltage 2 (Volts): 6.0
Engine type: Bell armature motor
Housing type: Part metal
Output teeth (number): 25
Gear type: titanium
Classification: default
