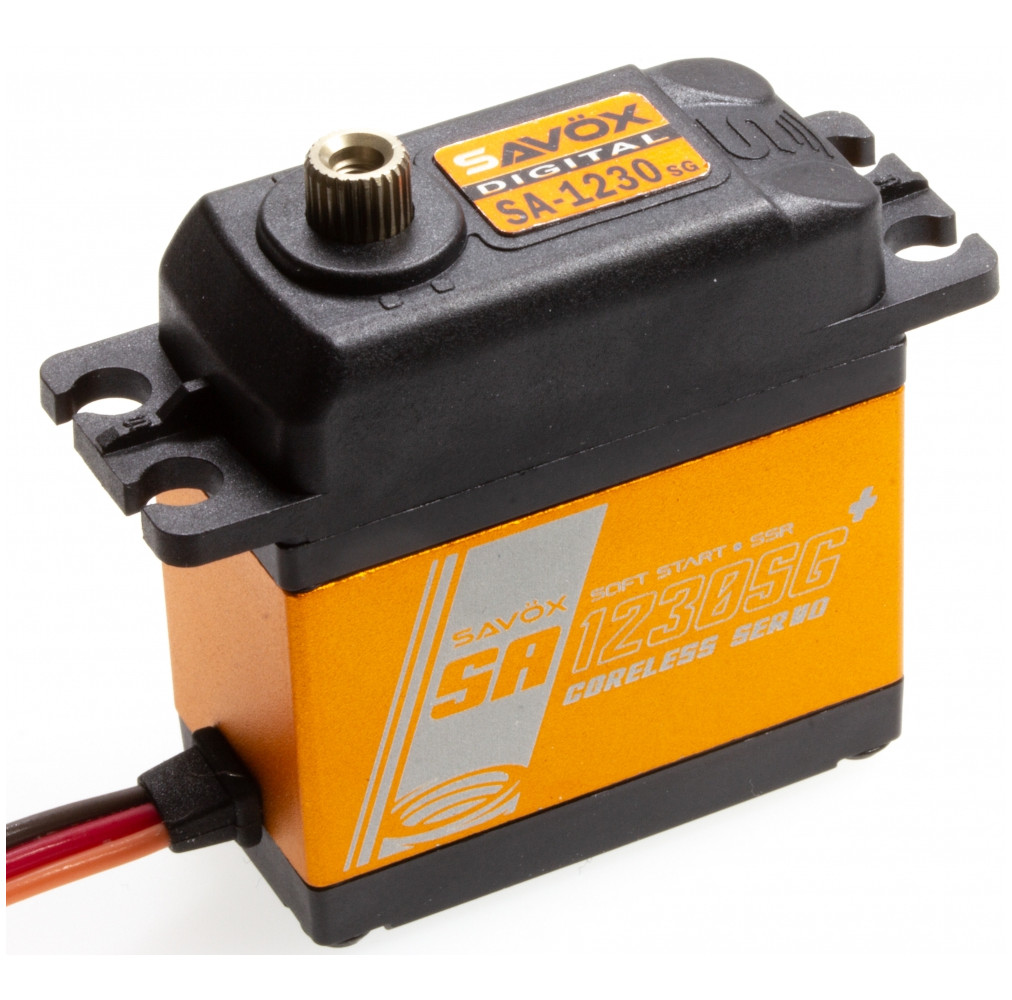

SAVÖX SA-1230SG SERVO
New + version with soft start, Sanwa SSR mode
Powerful digital servo, ideal for surface models, robust, low-backlash steel gear
Dimensions (L/W/H): 40.3 x 20.2 x 44.9 mm Weight: 79 grams
0.20/0.16 sec/60 degrees and 300/360 Ncm at 4.8/6.0 volts
Control frequency up to 333Hz, center pulse 1520us

DESCRIPTION
The SA-1230SG+ is an extremely powerful servo of standard size which is very suitable for use in wing models. Of course it can also be used in RC cars. Using them as swashplate servos for scale helicopters up to the 700 class is another option.

Please note, due to the larger motor, the SA-1230SG+ is 5mm lower than normal standard servos!

The new + version of the well-known SA-1230SG+ servo differs slightly from its predecessor both visually and technically. A soft start, which slowly moves the servo to the starting position when switched on, and the Sanwa SSR mode characterize the + version.

The SA-1230SG+ servo is specifically designed for use in fixed-wing models. The A in SA stands for Aircraft. The gearbox and software are optimized for this application; the low-backlash titanium gearbox is extremely robust and reliable. The software has also been adapted; the holding force around the zero position is optimized here. Suitable reinforced servo levers included in delivery are specifically designed for fixed-wing models.

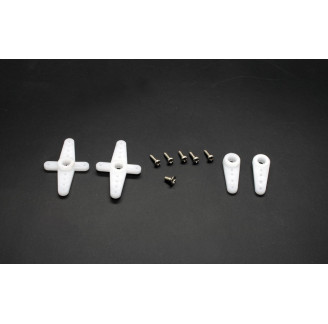

Included in delivery: Servo lever GRP reinforced plastic 1 x single arm 12 - 18 mm / 1 x single arm 15 - 28 mm / 1 x single arm 23 - 38 mm / 1 x double arm 23 - 38 mm


CHARACTERISTICS
Operating time S2/60° (sec): 0.16
Operating time S1/60° (sec): 0.20
Width (mm): 20.2
Actuating force S1 (kg*cm): 30
Actuating force S2 (kg*cm): 36
Voltage range: 4.8V-6V
Length (mm): 40.3
Height (mm): 44.9
Weight (g): 79
Control frequency: Up to 333Hz, 1520us center pulse
High-voltage capable up to 8.4V: No
Voltage 1 (Volt): 4.8
Recommended use: Helicopter, plane, car, boat
Ball bearings (number): 2
Voltage 2 (Volts): 6.0
Engine type: Bell armature motor
Housing type: Part metal
Output teeth (number): 25
Gear type: steel
Classification: default
