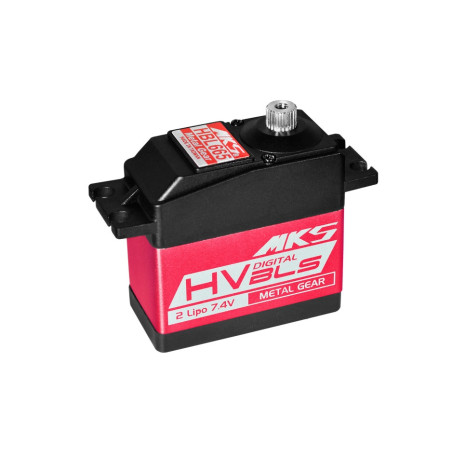

MKS Servo Digital Standard HBL665 (0.09s/60°, 16.7kg.cm)
Very high torque/very high speed 63g HV digital brushless standard servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for cyclic of 600 class helicopters. Torque 12.2kg.cm, speed 0.13s/60° at 6.0V, torque 15.2kg.cm, speed 0.10s/60° at 7.4V, torque 16.7kg.cm, speed 0.09s/60° at 8.2V. Aluminium mid case for perfect heat dissipation. Dimensions 40x20x40mm, weight 63g. Programmable with DSP-1 programmer.

Servo dimensions Standard
Servo type Digital
Programmable Yes
Thrust at 6.0V [kg·cm] 12.2
Thrust at 7.4V [kg·cm] 15.2
Torque at 8.2 V [kg·cm] 16.7
Speed at 6.0V [s/60st.] 0.13
Speed at 7.4V [s/60st.] 0.1
Speed at 8.2 V [s/60st.] 0.09
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.001
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 6 - 8.4
Length [mm] 40
Width [mm] 20
Height [mm] 40
Weight [g] 63
Intended for Aeroplanes,Helicopters
