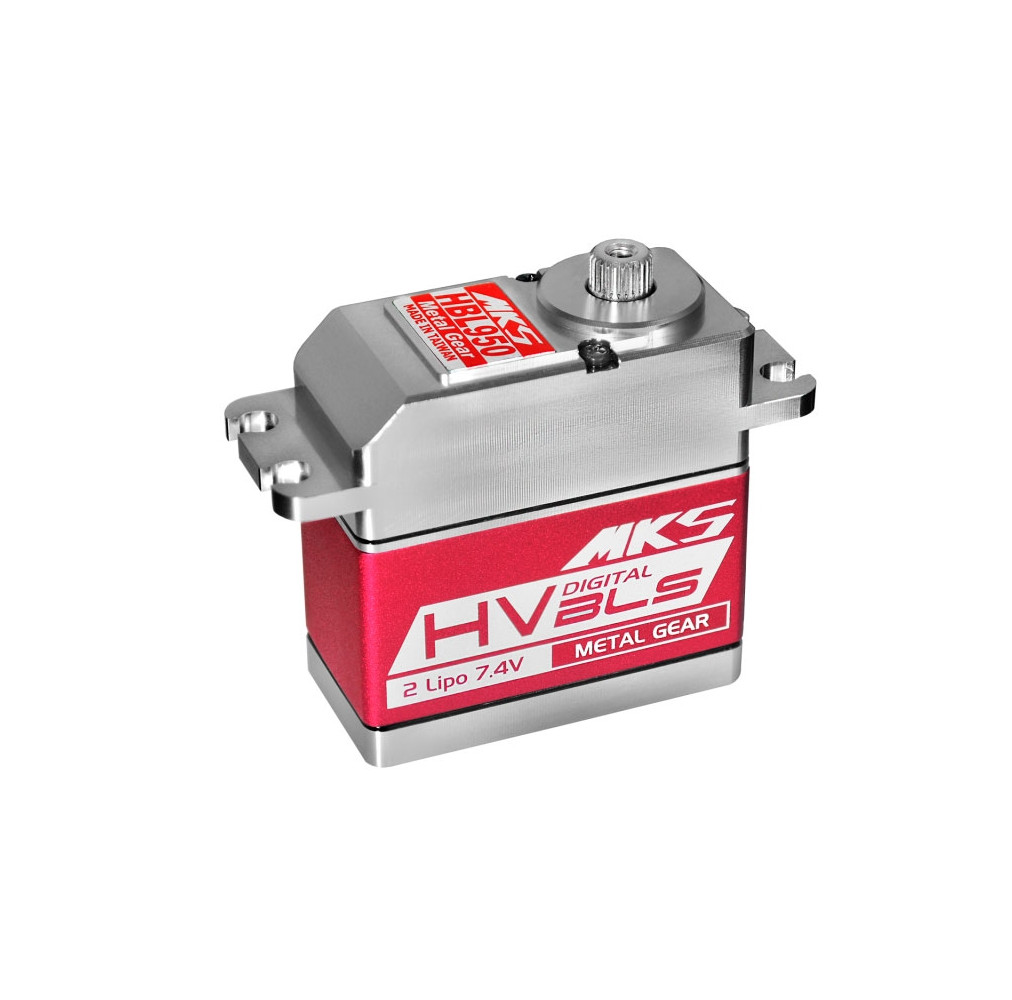

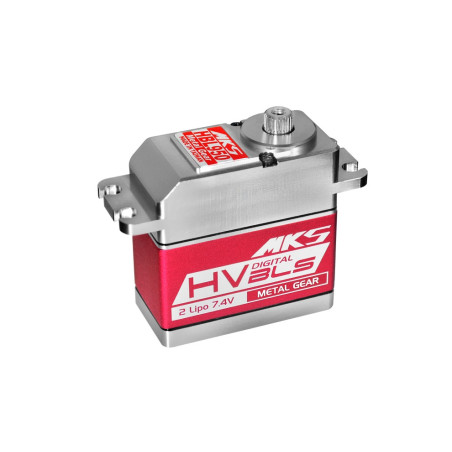

MKS Servo Standard Digital HBL950 (0.09s/60°, 18.2kg.cm)
Very high torque/very high speed 70g HV digital brushless standard servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for cyclic of 600-800 class helicopters. Torque 13.3kg.cm, speed 0.12s/60° at 6.0V, torque 16.5kg.cm, speed 0.10s/60° at 7.4V, torque 18.2kg.cm, speed 0.09s/60° at 8.2V. Aluminium case for perfect heat dissipation. Dimensions 40x20x40mm, weight 70.29g. Programmable with DSP-1 programmer.

Servo dimensions Standard
Servo type Digital
Programmable Yes
Thrust at 6.0V [kg·cm] 13.3
Thrust at 7.4V [kg·cm] 16.5
Torque at 8.2 V [kg·cm] 18.18
Speed at 6.0V [s/60st.] 0.12
Speed at 7.4V [s/60st.] 0.1
Speed at 8.2 V [s/60st.] 0.09
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.0008
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 6 - 8.4
Length [mm] 40
Width [mm] 20
Height [mm] 40
Weight [g] 70
Intended for Aeroplanes,Helicopters
