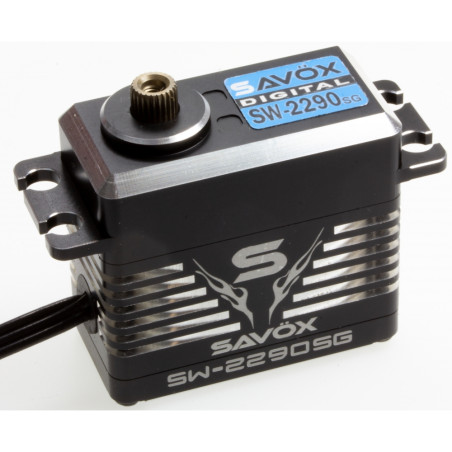

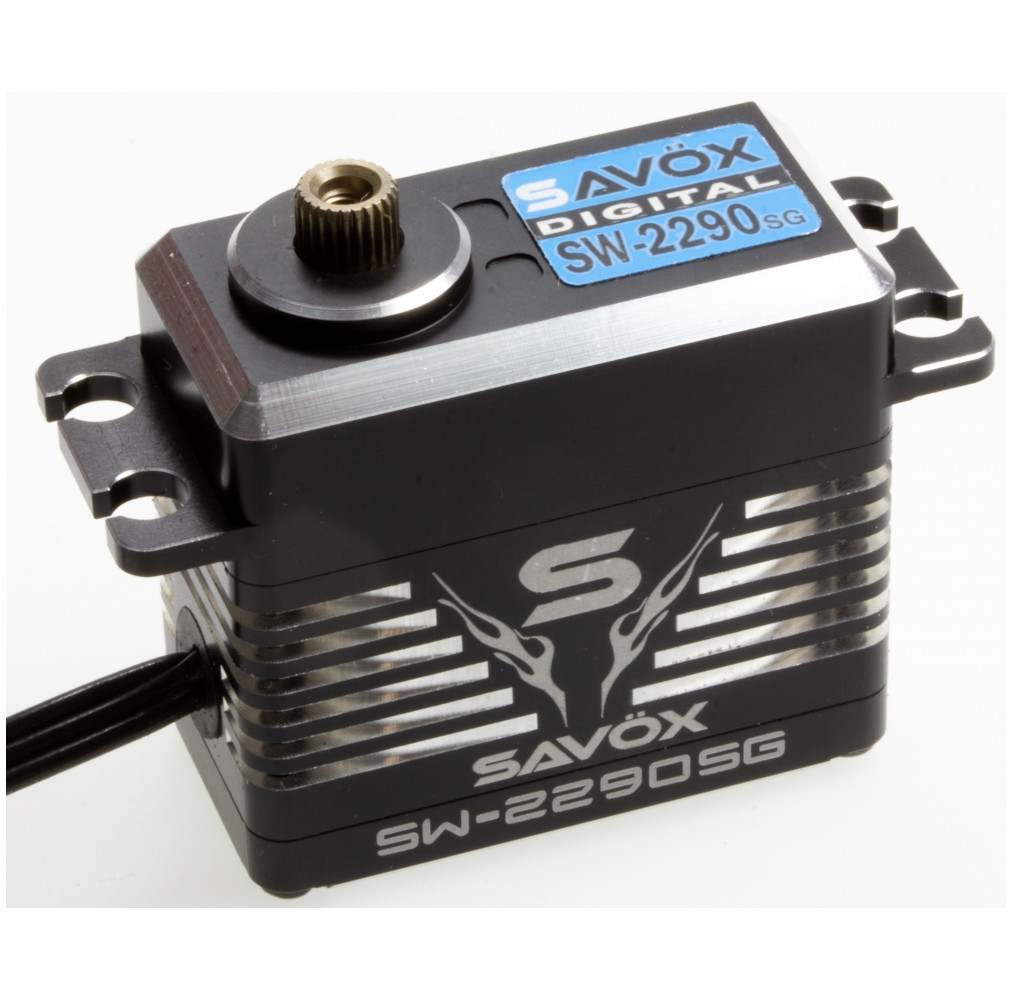

SAVÖX SW-2290SG BLACK SERVO
High-voltage digital servo up to 8.4V
High quality brushless motor
3 compartment ball bearings, waterproof to IP67
High-quality full metal housing
Up to 35% more power // 70kg*cm torque at 8.4V


DESCRIPTION
With the new SW-2290SG servo from SAVOX, the Taiwanese manufacturer Savöx has achieved a revolution in servo technology. The patented design of this monster ensures up to 35% more power, with proven standard installation dimensions. The SW-2290SG is waterproof to IP 67 and is therefore perfect for tough use in large model construction.

The torque of this monster leaves nothing to be desired, here are the technical details for 6, 7.4 and 8.4V

6V 45kg*cm with a travel time of 0.16s/60°
7.4V 55kg*cm with a travel time of 0 .13s/60°
8.4V 70kg*cm with a positioning time of 0.11s/60°

This was achieved by integrating the brushless motor directly into the all-aluminum housing. In addition to a thermal advantage, this opens up the possibility of installing a larger motor. In order to optimally transfer the enormous actuating forces, a third ball bearing was integrated into the gearbox. A fully rubberized servo cable is also standard in this servo series. It protects the servo cable from damage, but is still flexible enough to be laid cleanly. The SW-2290SG is suitable for use in helicopters, RC cars and fixed-wing models.

Control frequency up to 333Hz, center pulse 1520us

Like all HV servos from Savöx, the SW-2290SG can of course be operated with up to 8.4V!

Scope of delivery: Servo including servo lever and mounting screws


CHARACTERISTICS
Operating time S2/60° (sec): 0.11
Operating time S1/60° (sec): 0.16
Width (mm): 21
Height (mm): 39.9
Voltage range: 4.8V-8.4V
Length (mm): 41
Actuating force S1 (kg*cm): 45
Actuating force S2 (kg*cm): 70
Weight (g): 88
Control frequency: Up to 333Hz, center pulse 1520us
High-voltage capable up to 8.4V: Yes
Engine type: brush motor
Recommended use: Helicopter, plane, car, boat
Voltage 1 (Volt): 6.0
Output teeth (number): 25
Ball bearings (number): 3
Gear type: steel
Housing type: Full metal
Voltage 2 (Volts): 8.4
Classification: default
