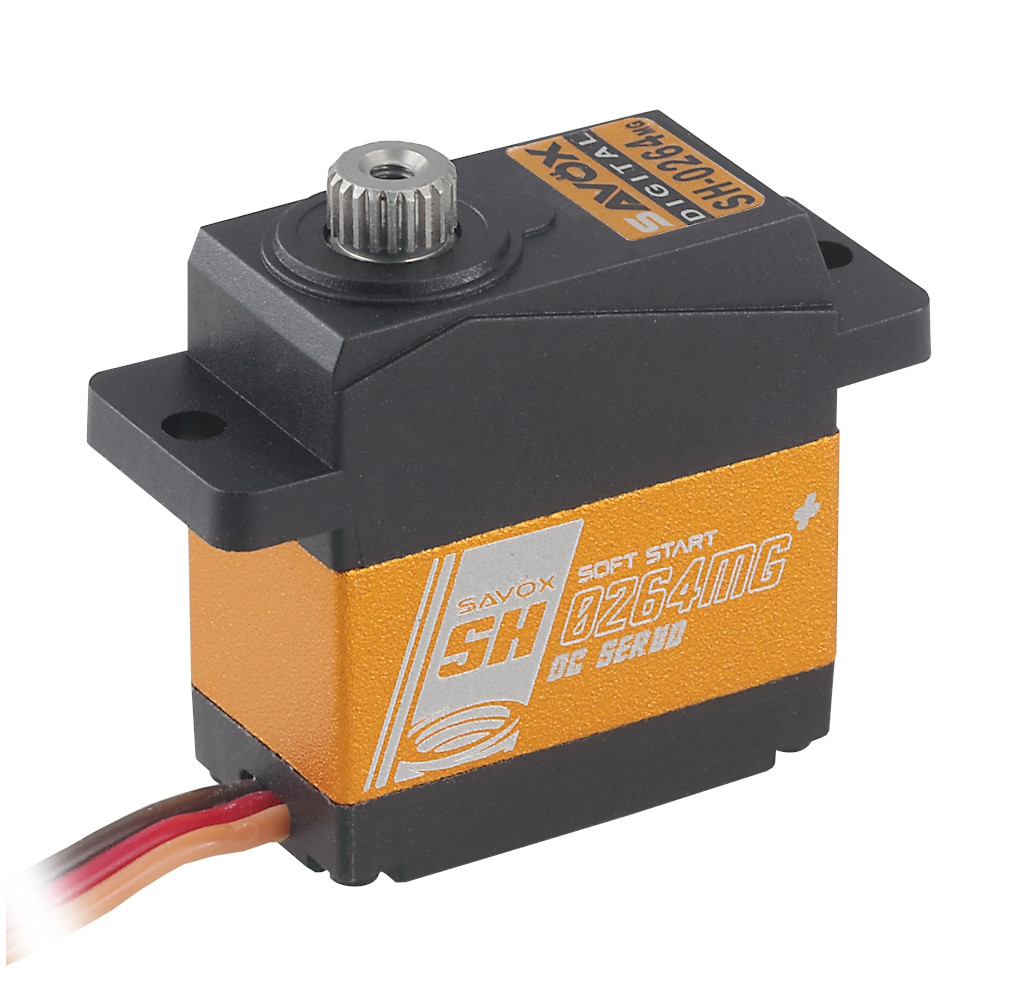

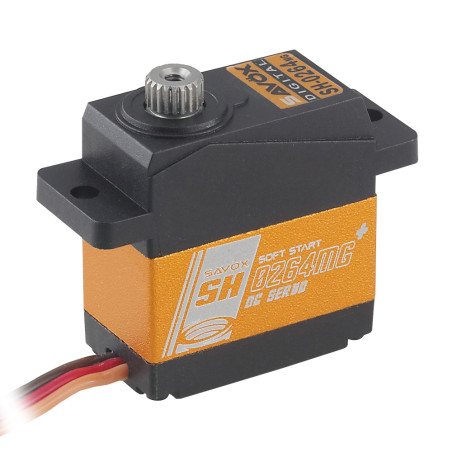

SAVÖX SH-0264MG SERVO
Dimensions (L/W/H): 22.8 x 12.0 x 25.4 mm
Weight: 13.6 grams, 2 ball bearings
0.06 sec/60 degrees and 1.2 kg*cm at 6.0 volts
Fast mini digital servo for a wide range of purposes, e.g. as a tail servo for mini / micro helicopters
New + version with soft start, Sanwa SSR mode


DESCRIPTION
The SH-0264+ is a fast, mini-sized servo that is ideal for use at the rear of small helicopters. Of course it can also be used in other areas.

The SH-0264+ is ideal when reliability and control power are important in small dimensions. The robust metal gear can also handle heavier loads.

The new + version of the well-known SH-0264+ servo differs minimally from its predecessor both visually and technically. A soft start, which slowly moves the servo to the starting position when switched on, and the Sanwa SSR mode characterize the + version.


CHARACTERISTICS
Operating time S1/60° (sec): 0.06
Actuating force S1 (kg*cm): 1.2
Width (mm): 12
Weight (g): 15
Length (mm): 22.8
Height (mm): 25.4
Voltage range: 4.8V-6V
Control frequency: Up to 333Hz, 1520us center pulse (up to a maximum of 200Hz is recommended in order not to shorten the service life unnecessarily)
High-voltage capable up to 8.4V: No
Engine type: brush motor
Recommended use: Helicopter, plane, car, boat
Ball bearings (number): 2
Output teeth (number): 21
Voltage 1 (Volt): 6.0
Gear type: metal
Housing type: Part metal
Classification: Mini
