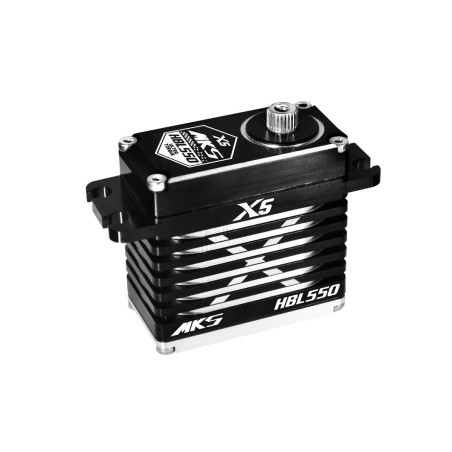

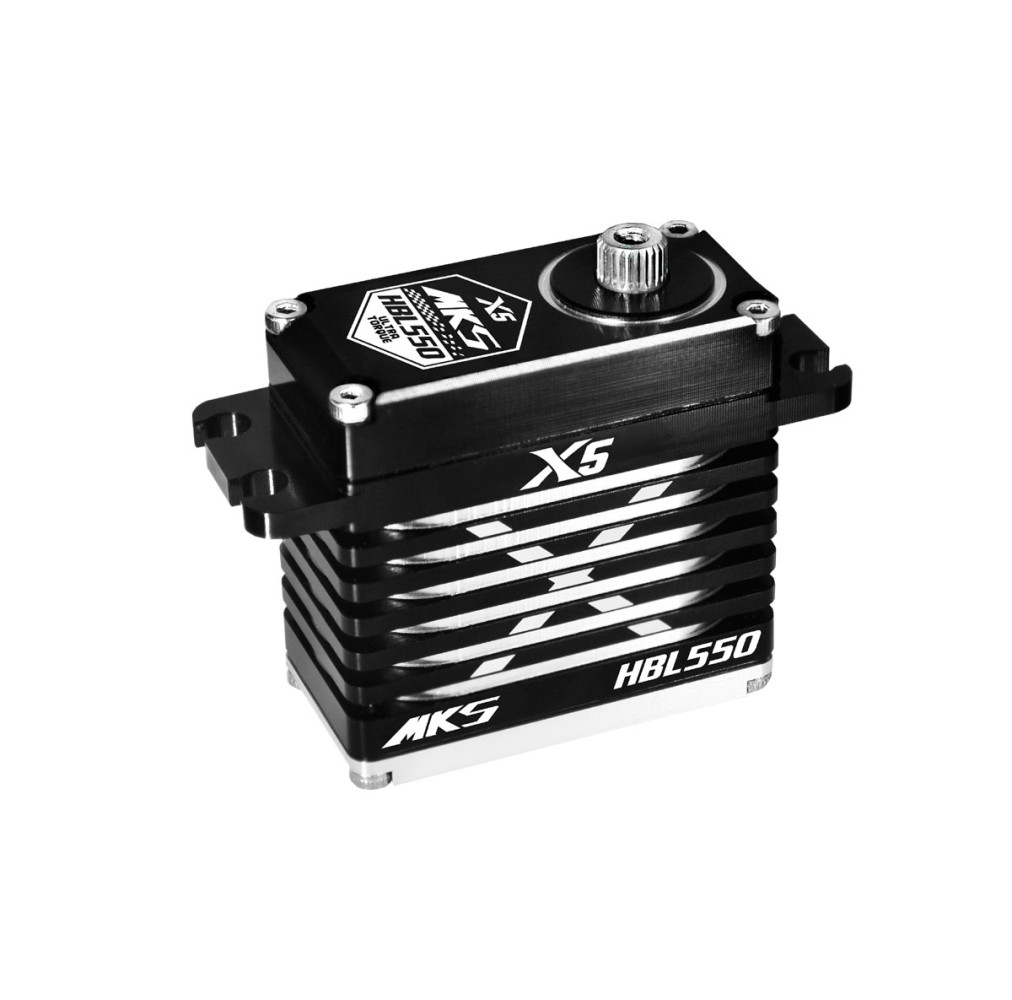

MKS Servo Standard Digital HBL550 (0.085s/60°, 38.0kg.cm)
Super high torque/very high speed 79g HV digital brushless standard servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for RC buggies 1/10, 1/8 and 1/5. Torque 29kg.cm, speed 0.117s/60° at 6.0V, torque 36kg.cm,speed 0.094s/60° at 7.4V, torque 38kg.cm, speed 0.085s/60° at 8.2V. Aluminium case w. CNC milled heatsink for perfect heat dissipation. Dimensions 40x20x38.8mm, weight 79.5g. Programmable with DSP-1 programmer.
Super high torque/very high speed programmable digital standard brushless servo with metal gears and twin ballraced output shaft; ideal for 1/10, 1/8 and 1/5 RC buggies. An aluminium case with CNC milled heatsink for perfect cooling even under extreme loads.

Input voltage range 6.0-7.4 V (nominal), operational 6.0-8.4 V.

Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default 1µs or 1.2µs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
Boost: The steps of the motor when starting-up. The larger the value is, the more powerful the step of the motor during the start-up.

Servo dimensions Standard
Servo type Digital
Programmable Yes
Thrust at 6.0V [kg·cm] 29
Thrust at 7.4V [kg·cm] 36
Torque at 8.2 V [kg·cm] 38
Speed at 6.0V [s/60st.] 0.117
Speed at 7.4V [s/60st.] 0.094
Speed at 8.2 V [s/60st.] 0.085
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.001
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 6 - 8.4
Length [mm] 40
Width [mm] 20
Height [mm] 38.8
Weight [g] 79.5
Intended for Aeroplanes,On-road cars,Off-road cars
