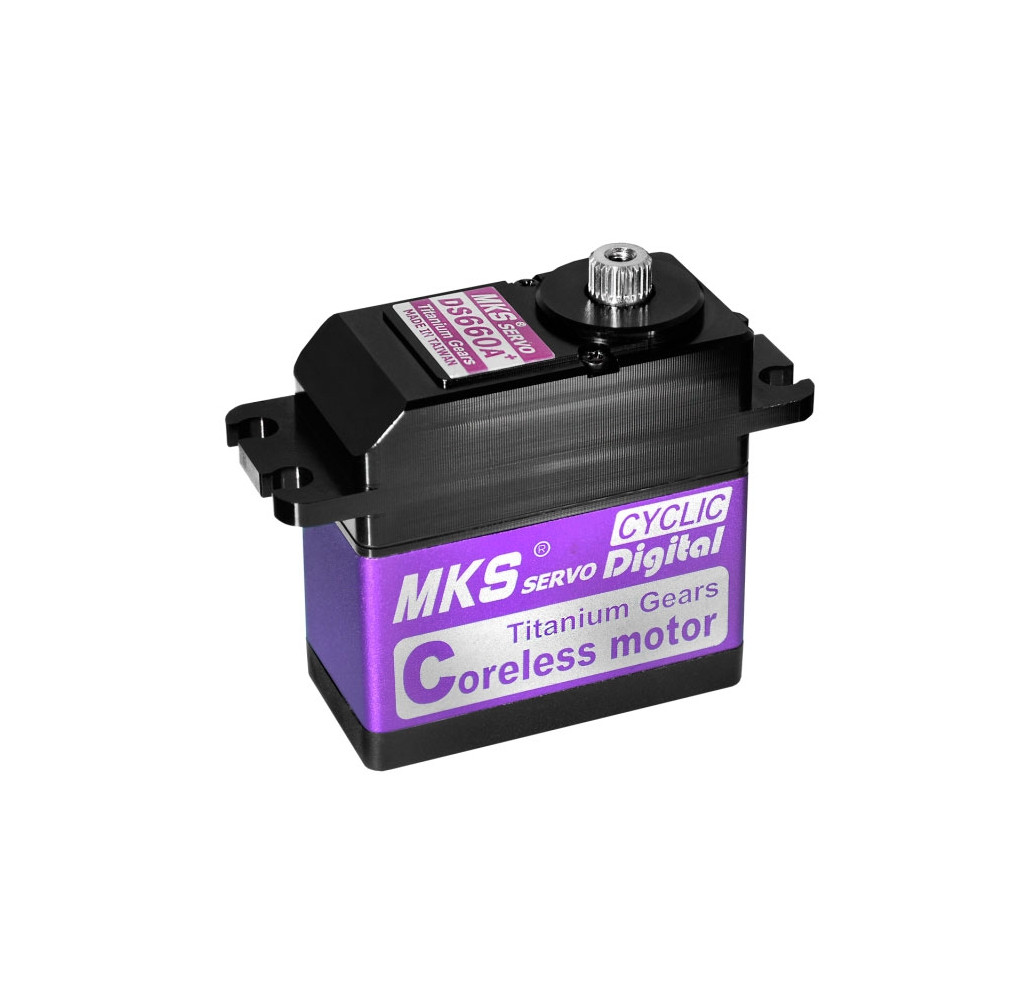

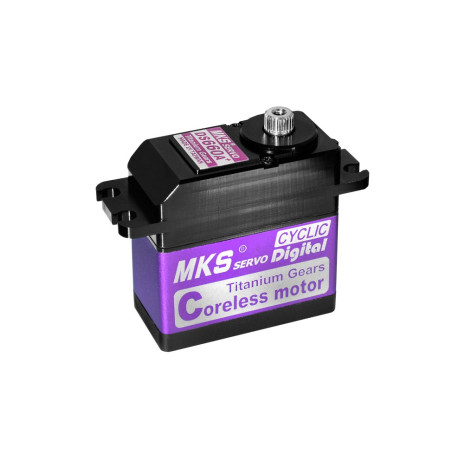

MKS Servo Digital Standard DS660A (0.14s/60°, 26.3kg.cm)
High torque 75g digital standard servo w. metal gears; input voltage 4.8-6.0V, 2xBB. Fo general use, large model aeroplanes. Torque 21.05kg.cm, speed 0.186s/60° at 4.8V, torque 26.3kg.cm, speed 0.149s/60° at 6.0V. Aluminium mid case for perfect heat dissipation. Dimensions 40x20x40mm, weight 75g. Non-programmable

High torque digital standard servo with metal gears and twin ballraced output shaft for general use, larger model aeroplanes as well as RC cars and boats. An aluminium mid case for perfect cooling even under high loads. This servo is not programmable

Input voltage range 4.8-6.0 V (nominal), 4.8-7.0 V operational.

Servo dimensions Standard
Servo type Digital
Programmable No
Thrust at 4.8V [kg·cm] 21.05
Thrust at 6.0V [kg·cm] 26.3
Speed at 4.8V [s/60st.] 0.186
Speed at 6.0V [s/60st.] 0.149
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.001
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 4.8 - 6
Length [mm] 40
Width [mm] 20
Height [mm] 40
Weight [g] 75
Intended for Aeroplanes
